Biasi

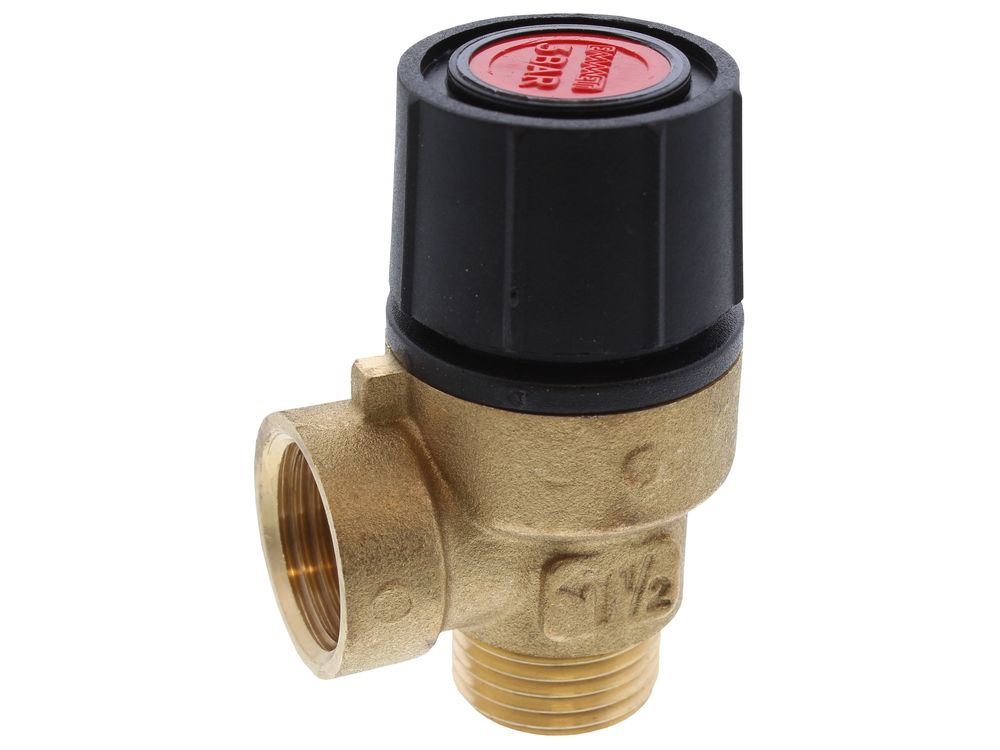

Biasi Safety Valve 1/2 Inch BI1001112
Biasi BI1001112 3 bar safety valve with a 1/2 inch connection, fitted to a range of Biasi gas boilers.
At a glance
- Also known as 3-BAR-SAFETY-VALVE--PRV, 1650011, N1906-H
£23.62
£19.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1001112 is a 3 bar safety valve (pressure relief valve) with a 1/2 inch connection, used on Biasi gas boilers. It is a Caleffi 512 pattern valve that opens and discharges water when system pressure exceeds 3 bar, protecting the boiler and heating circuit from over-pressurisation. This code supersedes BG1001112.
Signs this part needs replacing
- Water dripping or running from the boiler discharge pipe while the system is cold
- Boiler pressure gauge reading rising above 3 bar
- System pressure dropping and needing frequent topping up
- Discharge outlet permanently wet or showing limescale staining
- Valve failing to reseat and continuing to pass water after discharging
Before you order
- Confirm the valve connection is 1/2 inch and the rating is 3 bar
- Check your boiler model and GC number against the fitment list
- Check the discharge pipework is correctly routed and terminated before fitting
- Isolate the appliance and depressurise the system before removing the old valve
Compliance
| GC number | 379-085 |
|---|---|
| Barcode / EAN | 8023585801055 |
| Alternative numbers | 3-BAR-SAFETY-VALVE--PRV, 1650011, N1906-H |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI 24S | 47-970-10 | 47-970-10 | — | — |
| BIASI 24SR | 41-970-05 | 41-970-05 | — | — |
| BIASI 28S | 47-970-11 | 47-970-11 | — | — |
| BIASI BIASI 24S | — | — | — | |
| BIASI BIASI 24SR | — | — | — | |
| BIASI BIASI 28S | — | — | — | |
| BIASI BIASI PRISMA 24 SER | — | — | — | |
| BIASI BIASI PRISMA 24SE | — | — | — | |
| BIASI BIASI PRISMA 28SE | — | — | — | |
| BIASI BIASI SAVIO GAIA 424S | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — 24S (GC 47-970-10), 24SR (GC 41-970-05), 28S (GC 47-970-11)
manualmanualBIASI appliance manual — GAIA 424RS (GC 41-970-04), GAIA 424S (GC 47-970-08), GAIA 428S (GC 47-970-09)
manualmanualBIASI appliance manual — PRISMA 24SE (GC 47-970-04), PRISMA 24SER (GC 41-970-02), PRISMA 28SE (GC 47-970-05)
manualNo technical questions yet for this part.
