EOGB Electrode for ST130 B03-00-119-24301
EOGB ignition electrode for the ST130, fitted to EOGB Bentone oil-fired boilers.
£26.90
£22.42 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

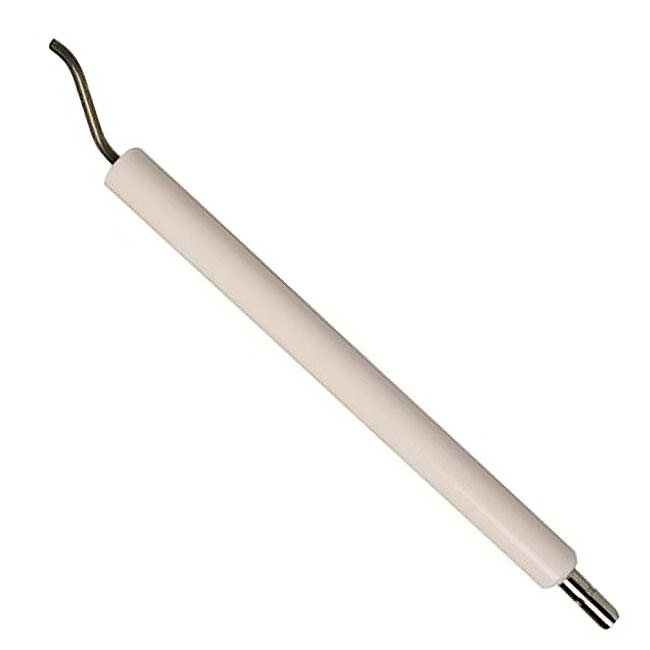

The EOGB Electrode for ST130 is an ignition electrode used on EOGB Bentone oil-fired boiler burners. It sits within the burner assembly and provides the spark that lights the oil/air mixture at start-up. The part is supplied under EOGB part number B03-00-119-24301.
Signs this part needs replacing
- The burner reaches the end of its pre-purge but fails to light, then locks out
- No visible spark at the electrode tips when the burner is observed during start-up
- Repeated lockouts on start-up that clear only after several attempts
- Insulation around the electrode cracked, blackened or tracking to earth
- Electrode tip eroded, distorted or heavily carbonised after service
Before you order
- Confirm the burner model is EOGB Bentone and that the appliance carries the ST130 designation
- Check the existing electrode against the part number B03-00-119-24301 before ordering
- Inspect the electrode lead and burner control box at the same time, as ignition faults are not always caused by the electrode alone
- Confirm the correct electrode position and gap setting for the burner once fitted, using the burner manufacturer's data
No specification data held for this part.
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| EOGB Bentone | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
