Nuway

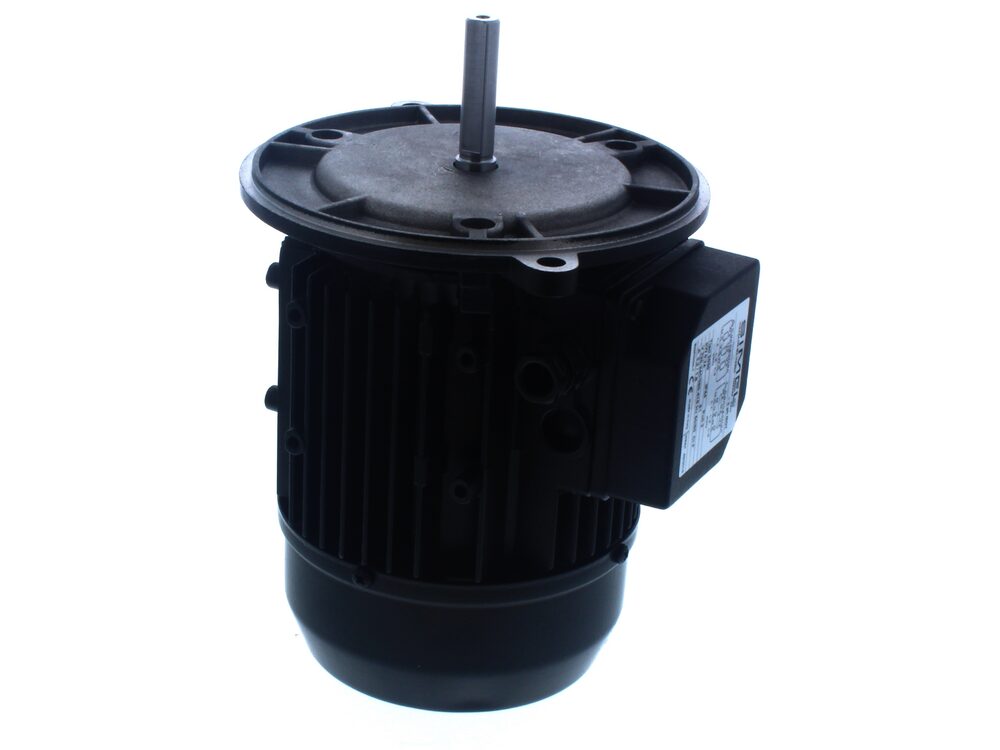

Nuway Electric Motor 1 HP 1 Phase 750W A09014Z
Nuway A09014Z single-phase 750W electric motor rated at 1 HP for Nuway oil and gas burners.
At a glance
- Also known as 1451776
£354.40
£295.33 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Nuway A09014Z is a single-phase electric motor rated at 750W, equivalent to 1 HP. It is the drive motor used across a range of Nuway oil and gas burners, driving the burner fan and pump assembly during operation. The motor is supplied under the Nuway brand as part number A09014Z.
Signs this part needs replacing
- The burner motor hums but does not turn when the appliance is called for heat
- The motor runs hot, smells of burnt windings or trips the supply protection
- Grinding or rumbling bearing noise from the motor during the burner pre-purge or run cycle
- The burner locks out repeatedly and the motor is found to be seized or turning slowly
- Visible winding damage, burnt insulation or a winding resistance that no longer matches the original motor
Before you order
- Confirm the burner model against the fitment list above before ordering
- Check the rating plate on the existing motor and match the voltage, phase and output to the replacement
- Note the manufacturer part number A09014Z so the correct Nuway motor is selected
- Inspect the motor mounting, shaft and drive coupling on the burner for wear while the motor is removed
Compliance
| Alternative numbers | 1451776 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| NUWAY CH4 OIL BURNER | — | — | — | |
| NUWAY CL4-23 HIGH/LOW OIL BURNER | — | — | — | |
| NUWAY FMP 15 BURNER | — | — | — | |
| NUWAY FMP 25 BURNER | — | — | — | |
| NUWAY NGN15 GAS BURNER | — | — | — | |
| NUWAY NGN25 GAS BURNER | — | — | — | |
| NUWAY NOL20 OIL BURNER | — | — | — | |
| NUWAY NOL25 OIL BURNER | — | — | — |
