EOGB
EOGB LSI Capillary Limit Stat 110°C A02-541592
Capillary limit stat with a 110°C limit temperature for the EOGB Imit boiler.
At a glance
- Appliance family: EOGB Imit
£93.49
£77.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

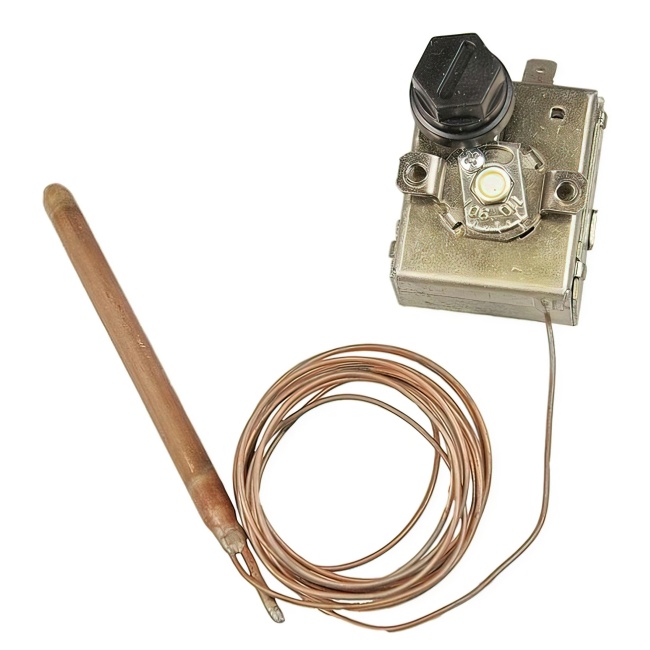

The LSI capillary limit stat 110c is a capillary-type limit thermostat supplied by EOGB for the EOGB Imit boiler. It monitors boiler temperature via its capillary sensor and acts as an overheat safety limit, interrupting the burner circuit when the set limit is reached. It is a safety-critical control rather than a routine service item.
Signs this part needs replacing
- The boiler repeatedly locks out on an overheat condition even when the system is running normally.
- The limit stat trips at a temperature below its stated 110°C limit.
- The burner fails to fire because the limit stat is held open in the safety circuit.
- No continuity through the stat terminals when the sensed temperature is within normal operating range.
- Visible damage, kinking or leakage at the capillary sensor.
Before you order
- Confirm the existing stat is marked 110°C and carries the same part number, A02-541592.
- Check the appliance is an EOGB Imit before ordering.
- Inspect the capillary sensor route and pocket condition so a new stat can be fitted without re-routing.
- Isolate the electrical supply and the fuel supply before removing the old limit stat.
No specification data held for this part.
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| EOGB Imit | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
