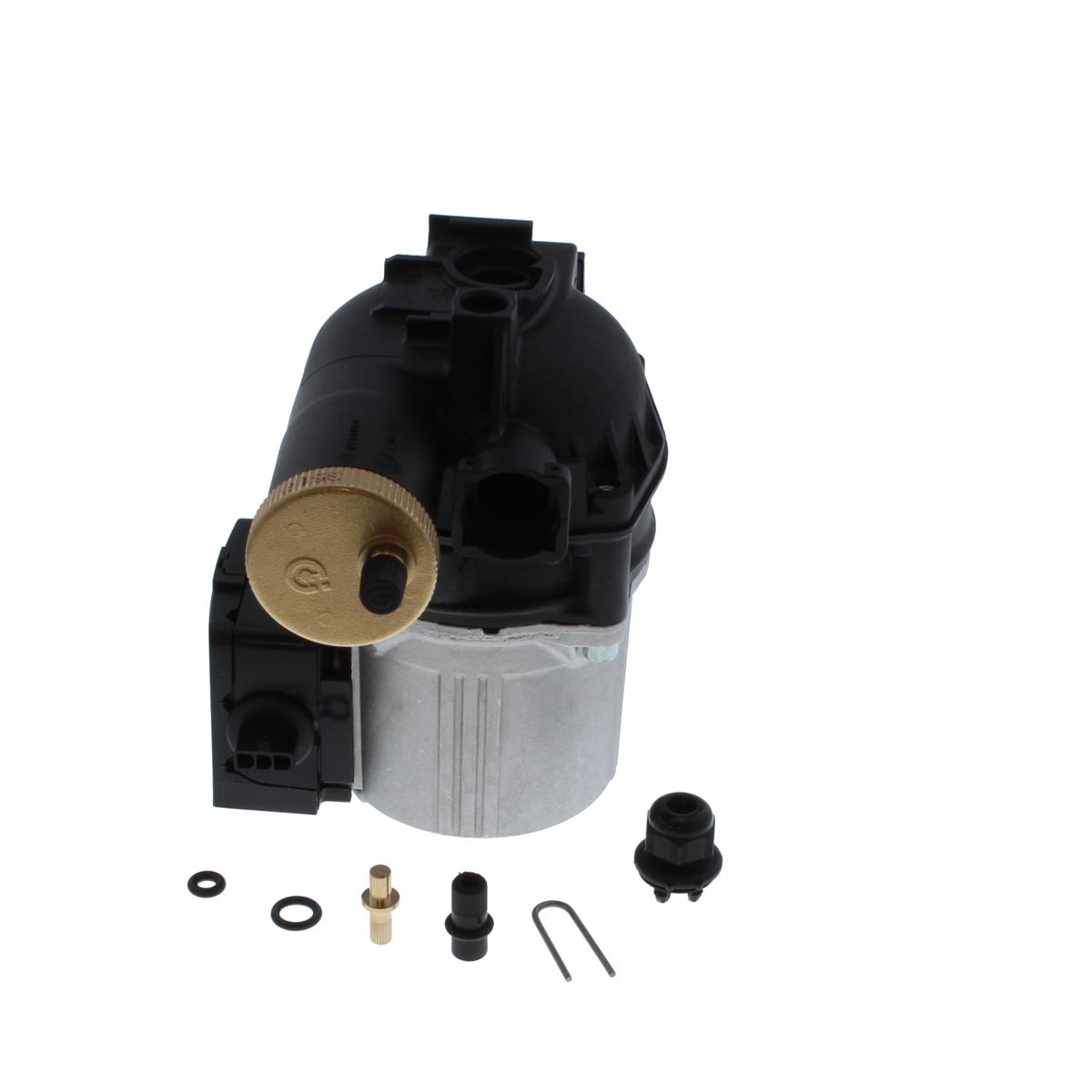

Ariston Pump Microcombi 23 27 996614
Ariston circulation pump 996614 for Microcombi 23 and 27 and Ecosystem 27 RFFI boilers, replacing 999091 and 998836.
At a glance
- Part type: Pump
- Also known as 1576734
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£140.02
£116.68 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 996614 is a circulation pump used in Ariston gas combination boilers. It moves primary water around the heating circuit and through the domestic hot water plate heat exchanger, so it is central to both heating and hot water operation. This pump is the current replacement for the earlier 999091 and 998836 numbers and is listed against the Microcombi 23 and 27 families.
Signs this part needs replacing
- The pump runs hot, is noisy, or emits a grinding or humming sound that does not clear after bleeding.
- Heating and hot water both stop, or the boiler fires briefly and then locks out.
- The pump head is stiff or will not turn when checked by hand with the boiler isolated.
- Water weeps from the pump body, the gland or the pump-to-manifold joint.
- The boiler reaches temperature quickly and then cycles on the overheat thermostat.
Before you order
- Check the GC number and serial number on the appliance data badge against the compatibility list, as several Microcombi and Ecosystem editions use different pump variants.
- Confirm the pump currently fitted carries 999091 or 998836, or that the appliance is listed against 996614.
- Check whether the pump gasket or O-ring seal needs replacing at the same time, as the old seal is normally disturbed during removal.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pumps |
|---|
Compliance
| Manufacturer part number (MPN) | 996614 |
|---|---|
| Barcode / EAN | 5411692459949 |
| Commodity code | 8413 70 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 998836, 999085, 999091, 999591, 999688, 1576734 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON MICROCOMBI 27MFFI - EDITION TWO - FROM SERIAL No 2320309500001 | — | — | — | |
| ARISTON ECOSYSTEM 27 RFFI EDITION 1 LPG (OCT 2002) | 41-116-08 | 41-116-08 | — | — |
| ARISTON ECOSYSTEM 27 RFFI EDITION 1 NG (OCT 2002) | 41-116-08 | 41-116-08 | — | — |
| ARISTON ECOSYSTEM 27 RFFI EDITION 2 LPG (SEPT 2004) | 41-116-08 | 41-116-08 | — | — |
| ARISTON ECOSYSTEM 27 RFFI EDITION 2 NG (SEPT 2004) | 41-116-08 | 41-116-08 | — | — |
| ARISTON EST 23 MFFI - LPG EDITION 3 (26 AUG 2005) | — | — | — | |
| ARISTON EST 23 MFFI - NG EDITION 3 (26 AUG 2005) | — | — | — | |
| ARISTON EST 23 MFFI LPG EDITION 2 (01 DEC 2001) | — | — | — | |
| ARISTON EST 23 MFFI NATURAL GAS EDITION 2 (01 DEC 2001) | — | — | — | |
| ARISTON EXCALIBUR 100 LPG EDITION 1 (JAN 2004) | — | — | — |
Showing 10 of 80 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ARISTON appliance manual — ECOSYSTEM 27 RFFI EDITION 1 LPG (OCT 2002) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 1 NG (OCT 2002) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 2 LPG (SEPT 2004) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 2 NG (SEPT 2004) (GC 41-116-08)
manualmanualARISTON appliance manual — MICROCOMBI 23 MFFI LPG EDITION 1 (OCT 2000) (GC 47-116-16), MICROCOMBI 23 MFFI LPG EDITION 2 (DEC 2000) (GC 47-116-16), MICROCOMBI 23 MFFI LPG EDITION 3 (FEB 2001) (GC 47-116-16), MICROCOMBI 23 MFFI NG EDITION 1 (OCT 2000) (GC 47-116-16), MICROCOMBI 23 MFFI NG EDITION 2 (DEC 2000) (GC 47-116-16), MICROCOMBI 23 MFFI NG EDITION 3 (FEB 2001) (GC 47-116-16), MICROCOMBI 23 MFFI NG EDITION 4 (APR 2002) (GC 47-116-16), MICROCOMBI 28 MFFI LPG EDITION 1 (APR 2003) (GC 47-116-24), MICROCOMBI 28 MFFI NG EDITION 1 (APR 2003) (GC 47-116-24)
manualmanualARISTON appliance manual — MICROGENUS 23 MFFI LPG EDITION 1 (DEC 1999) (GC 47-116-14), MICROGENUS 23 MFFI LPG EDITION 2 (APR 2000) (GC 47-116-14), MICROGENUS 23 MFFI LPG EDITION 3 (DEC 2000) (GC 47-116-14), MICROGENUS 23 MFFI LPG EDITION 5 (MAR 2004) (GC 47-116-14), MICROGENUS 23 MFFI NG EDITION 1 (DEC 1999) (GC 47-116-14), MICROGENUS 23 MFFI NG EDITION 2 (APR 2000) (GC 47-116-14), MICROGENUS 23 MFFI NG EDITION 3 (DEC 2000) (GC 47-116-14), MICROGENUS 23 MFFI NG EDITION 5 (MAR 2004) (GC 47-116-14), MICROGENUS 27 MFFI LPG EDITION 1 (DEC 1999) (GC 47-116-15), MICROGENUS 27 MFFI LPG EDITION 2 (APR 2000) (GC 47-116-15), MICROGENUS 27 MFFI LPG EDITION 3 (DEC 2000) (GC 47-116-15), MICROGENUS 27 MFFI LPG EDITION 5 (MAR 2004) (GC 47-116-15), MICROGENUS 27 MFFI NG EDITION 1 (DEC 1999) (GC 47-116-15), MICROGENUS 27 MFFI NG EDITION 2 (APR 2000) (GC 47-116-15), MICROGENUS 27 MFFI NG EDITION 3 (DEC 2000) (GC 47-116-15), MICROGENUS 27 MFFI NG EDITION 5 (MAR 2004) (GC 47-116-15)
manualmanualARISTON appliance manual — MICROSYSTEM 10 RFFI LPG EDITION 1 (AUG 2000) (GC 41-116-04), MICROSYSTEM 10 RFFI LPG EDITION 2 (FEB 2001) (GC 41-116-04), MICROSYSTEM 10 RFFI LPG EDITION 3 (FEB 2004) (GC 41-116-04), MICROSYSTEM 10 RFFI LPG EDITION 4 (SEPT 2004) (GC 41-116-04), MICROSYSTEM 10 RFFI NG EDITION 1 (AUG 2000) (GC 41-116-04), MICROSYSTEM 10 RFFI NG EDITION 2 (FEB 2001) (GC 41-116-04), MICROSYSTEM 10 RFFI NG EDITION 3 (FEB 2004) (GC 41-116-04), MICROSYSTEM 10 RFFI NG EDITION 4 (SEPT 2004) (GC 41-116-04)
manualmanualARISTON appliance manual — MICROSYSTEM 15 RFFI LPG EDITION 1 (AUG 2000) (GC 41-116-05), MICROSYSTEM 15 RFFI LPG EDITION 2 (FEB 2001) (GC 41-116-05), MICROSYSTEM 15 RFFI LPG EDITION 3 (FEB 2004) (GC 41-116-05), MICROSYSTEM 15 RFFI LPG EDITION 4 (SEPT 2004) (GC 41-116-05), MICROSYSTEM 15 RFFI NG EDITION 1 (AUG 2000) (GC 41-116-05), MICROSYSTEM 15 RFFI NG EDITION 2 (FEB 2001) (GC 41-116-05), MICROSYSTEM 15 RFFI NG EDITION 3 (FEB 2004) (GC 41-116-05), MICROSYSTEM 15 RFFI NG EDITION 4 (SEPT 2004) (GC 41-116-05)
manualmanualARISTON appliance manual — MICROSYSTEM 21 RFFI LPG EDITION 1 (AUG 2000) (GC 41-116-06), MICROSYSTEM 21 RFFI LPG EDITION 2 (JAN 2004) (GC 41-116-06), MICROSYSTEM 21 RFFI LPG EDITION 3 (SEPT 2004) (GC 41-116-06), MICROSYSTEM 21 RFFI NG EDITION 1 (AUG 2000) (GC 41-116-06), MICROSYSTEM 21 RFFI NG EDITION 2 (JAN 2004) (GC 41-116-06), MICROSYSTEM 21 RFFI NG EDITION 3 (SEPT 2004) (GC 41-116-06), MICROSYSTEM 28 RFFI LPG EDITION 1 (AUG 2000) (GC 41-116-07), MICROSYSTEM 28 RFFI LPG EDITION 2 (JAN 2004) (GC 41-116-07), MICROSYSTEM 28 RFFI LPG EDITION 3 (SEPT 2004) (GC 41-116-07), MICROSYSTEM 28 RFFI NG EDITION 1 (AUG 2000) (GC 41-116-07), MICROSYSTEM 28 RFFI NG EDITION 2 (JAN 2004) (GC 41-116-07), MICROSYSTEM 28 RFFI NG EDITION 3 (SEPT 2004) (GC 41-116-07)
manualNo technical questions yet for this part.
