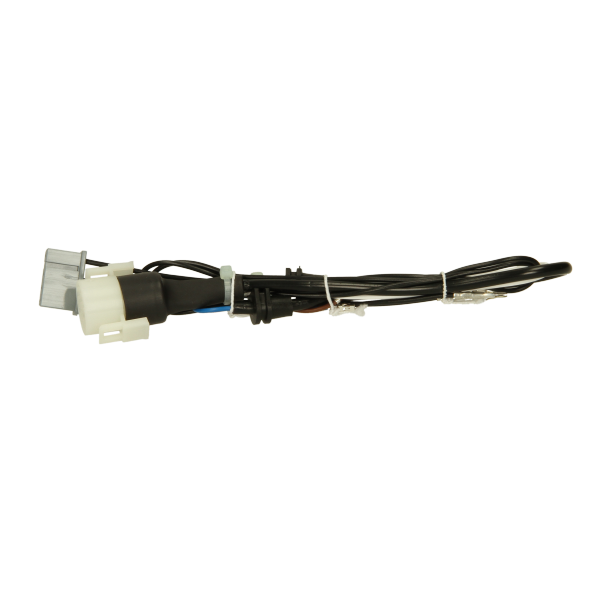

Ariston Fan Cable and Sensor Microcombi 23 & 27 995319
Ariston fan cable and sensor 995319 for Microcombi 23 and 27 boilers, also listed under 1576332. Wiring link between fan and control board.
At a glance
- Part type: Wiring
- Appliance family: Microcombi 23 and 27
- Also known as 1576332
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£22.52
£18.77 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston fan cable and sensor (995319) is a wiring assembly that connects the combustion fan and its sensing circuit to the boiler control board. It carries the supply to the fan and returns the speed or position signal the PCB uses to regulate combustion air. The part is produced by Ariston for the Microcombi 23 and 27 appliance family and is also listed under the alternative number 1576332.
Signs this part needs replacing
- The fan runs at a fixed speed, hunts, or fails to start when the boiler is called for heat.
- The boiler locks out or shuts down shortly after the fan spins up.
- Repeated fan fault or flame-failure codes appear on the appliance.
- The cable insulation is cracked, scorched, or brittle from long-term heat exposure.
- Fan speed feedback is erratic, causing unstable combustion or intermittent ignition.
Before you order
- Check the GC number on the appliance data badge against 47-116-31, 47-116-30, 47-116-16 and 47-116-24.
- Confirm the exact model and edition, as the Microcombi 23 and 27 variants use different harness routing.
- Compare the connector layout and cable length with the original before fitting.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring |
|---|---|
| Appliance family | Microcombi 23 and 27 |
Compliance
| Manufacturer part number (MPN) | 995319 |
|---|---|
| Barcode / EAN | 5411692373467 |
| Commodity code | 8403 90 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1576332 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON EST 23 MFFI - LPG EDITION 3 (26 AUG 2005) | — | — | — | |
| ARISTON EST 23 MFFI - NG EDITION 3 (26 AUG 2005) | — | — | — | |
| ARISTON EST 23 MFFI LPG EDITION 2 (01 DEC 2001) | — | — | — | |
| ARISTON EST 23 MFFI NATURAL GAS EDITION 2 (01 DEC 2001) | — | — | — | |
| ARISTON EXCALIBUR 100 LPG EDITION 1 (JAN 2004) | — | — | — | |
| ARISTON EXCALIBUR 100 NG | — | — | — | |
| ARISTON EXCALIBUR 100 NG EDITION 1 (JAN 2004) | 47-116-31 | 47-116-31 | — | — |
| ARISTON EXCALIBUR 80 LPG EDITION 1 (JAN 2004) | — | — | — | |
| ARISTON EXCALIBUR 80 NG | — | — | — | |
| ARISTON EXCALIBUR 80 NG EDITION 1 (JAN 2004) | 47-116-30 | 47-116-30 | — | — |
Showing 10 of 21 compatible appliances.
