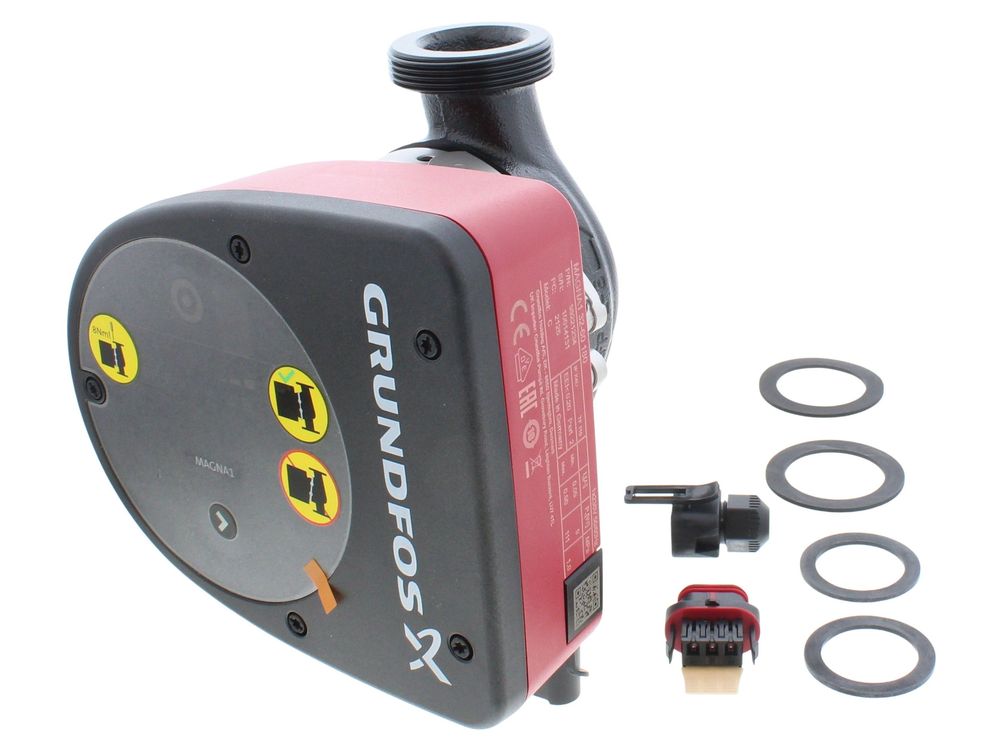

Grundfos Magna1 32-60 Variable Speed Circulator 99221234

Grundfos

Grundfos Magna1 32-60 Variable Speed Circulator 99221234

Variable speed single head circulator pump for heating and hot water systems, 230V/240V 1ph 50Hz, 180mm port-to-port, PN10.

At a glance

  • Also known as 2520865
Manufacturer part no.
99221234
Showing prices

£1,400.99

£1,167.49 ex. VAT · VAT at 20%

Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The Grundfos MAGNA1 32-60 is a variable speed, electronically controlled circulator pump for heating and domestic hot water systems. It is an 'A' rated, ErP ready single head unit that modulates its speed to match system demand. The pump is supplied as a 240V 1ph 50Hz (1x230V) assembly with a 180mm port-to-port dimension and PN10 pressure rating.

Signs this part needs replacing

  • The pump runs but delivers no circulation, or fails to start at all
  • Excessive noise, vibration or bearing whine from the pump body
  • Water leaking from the pump housing, flange joints or seal area
  • Fault or status indication on the pump control panel
  • Radiators or circuits not reaching temperature, or poor system differential

Before you order

  • Confirm the existing pump is marked MAGNA1 32-60 and part number 99221234
  • Check the port-to-port dimension (180mm) and flange size against the installation
  • Verify the supply is 230V/240V single phase 50Hz and the system pressure rating is PN10
  • Confirm whether a single head or twin head circulator is required
