Ariston

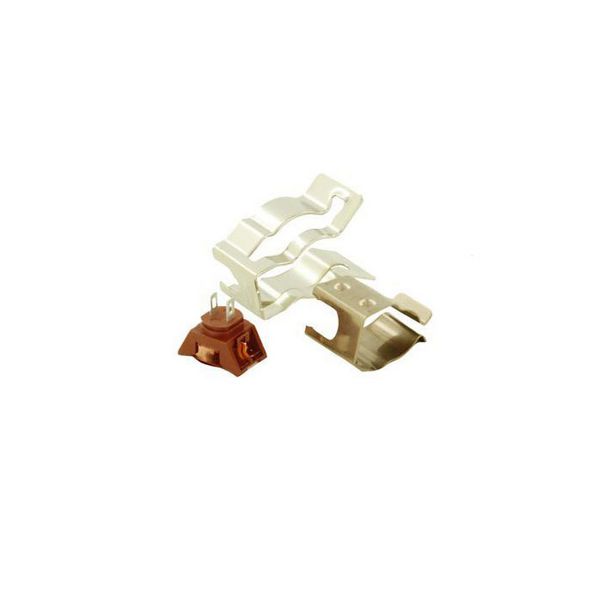

Ariston 990686-01 Temperature Sensor Probe C/w Clip
Ariston clip-on temperature probe (990686-01) for Clas, Clas One, Genus, E-Combi, Matis, Alteas One and Cares One boilers.
At a glance
- Part type: temperature probe with clip
- Also known as ARISTON990686-01
Showing prices
£18.00
£15.00 ex. VAT · VAT at 20%
In stock
Order within 17m for same-day dispatch
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 990686-01 is a clip-on temperature probe used on a range of Ariston domestic gas boilers. It forms part of the thermocouple circuit and sits on the control panel side of the appliance, where it senses temperature and feeds that reading back to the boiler's control electronics. The probe is supplied with its retaining clip so it can be fixed directly onto the pipe or housing it monitors.
Signs this part needs replacing
- The boiler reports a temperature or sensor fault and locks out or fails to fire.
- Domestic hot water temperature is erratic, running hot then cold without any change at the tap.
- The displayed flow or return temperature does not match the actual pipe temperature.
- The appliance cycles or modulates unpredictably because the control board is receiving a poor signal.
- The probe or its clip is visibly damaged, corroded or has come loose from its mounting point.
Before you order
- Confirm the model number on the appliance data badge against the compatibility list, as the same probe is used across several Ariston ranges.
- Quote the Gas Council number J26501 when checking with the manufacturer or merchant.
- Inspect the existing clip and any seal or gasket at the mounting point, and replace them if they are perished or missing.
Mechanical
| Part type | Probe |
|---|
Compliance
| Manufacturer part number (MPN) | 990686-01 |
|---|---|
| GC number | J26501 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ARISTON990686-01, 1576046 |
Logistics
| Weight | 15.00000 kg |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ACO FLOOR 35 | 41-116-18 | 41-116-18 | — | — |
| ARISTON ALTEAS ONE NET 24 | — | — | — | |
| ARISTON ALTEAS ONE NET 30 | 33-014-49 | 33-014-49 | — | — |
| ARISTON ALTEAS ONE NET 35 | 33-014-50 | 33-014-50 | — | — |
| ARISTON AS 24 CF LPG | — | — | — | |
| ARISTON AS 24 CF NG | — | — | — | |
| ARISTON AS 24 FF LPG | — | — | — | |
| ARISTON AS 24 FF NG | — | — | — | |
| ARISTON CARES ONE 24 | 47-116-79 | 47-116-79 | — | — |
| ARISTON CARES ONE 30 | 47-116-80 | 47-116-80 | — | — |
Showing 10 of 133 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ARISTON appliance manual — CLAS 21 FF SYSTEM NG (IE) EDITION 3 (MAR 2008) (GC 41-116-27), CLAS 24 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-59), CLAS 28 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-61), CLAS 28 FF SYSTEM NG (IE) EDITION 3 (MAR 2008) (GC 41-116-28), CLAS HE 24 FF NG UK (MAY 2007) (GC 47-116-51), CLAS HE 30 FF NG UK (MAY 2007) (GC 47-116-52), CLAS HE 38 FF NG UK (MAY 2007) (GC 47-116-53)
manualmanualARISTON appliance manual — CLAS HE 18 FF SYSTEM NG UK (MAY 2007) (GC 41-116-26), CLAS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-22), CLAS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-23)
manualmanualARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — CLAS HE R 12 NG (GC 41-116-30), CLAS HE R 18 NG (GC 41-116-31), CLAS HE R 24 NG (GC 41-116-32)
manualmanualARISTON appliance manual — CLAS NET ONE 24 UK (GC 47-116-88), CLAS NET ONE 30 UK (GC 47-116-89), CLAS NET ONE 38 UK (GC 47-116-90), CLAS ONE 24 UK (GC 47-116-85), CLAS ONE 30 UK (GC 47-116-86), CLAS ONE 38 UK (GC 47-116-87), CLAS SYSTEM ONE 18 UK (GC 41-116-49), CLAS SYSTEM ONE 24 UK (GC 41-116-50), CLAS SYSTEM ONE 30 UK (GC 41-116-51)
manualmanualARISTON appliance manual — COMBI A 24 MFFI NG FROM APRIL 2006 (GC 47-116-44), COMBI A 24 MFFI NG UPTO MARCH 2006 (GC 47-116-44), COMBI A 30 MFFI NG FROM APRIL 2006 (GC 47-116-45), COMBI A 30 MFFI NG UPTO MARCH 2006 (GC 47-116-45)
manualmanualARISTON appliance manual — E-COMBI 24 FF NG (UK) (GC 47-116-62), E-COMBI 30 FF NG (UK) (GC 47-116-63), E-COMBI 38 FF NG (UK) (GC 47-116-64), E-SYSTEM 24 NG (UK) (GC 41-116-34), E-SYSTEM 30 NG (UK) (GC 41-116-35)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
manualmanualARISTON appliance manual — E-COMBI ONE 24 (GC 47-116-83), E-COMBI ONE 30 (GC 47-116-84), E-SYSTEM ONE 24 (GC 41-116-47), E-SYSTEM ONE 30 (GC 41-116-48)
manualmanualARISTON appliance manual — ECOCOMBI 27 MFFI LPG EDITION 1 (OCT 2002) (GC 47-116-23), ECOCOMBI 27 MFFI LPG EDITION 2 (SEPT 2004) (GC 47-116-23), ECOCOMBI 27 MFFI NG EDITION 1 (OCT 2002) (GC 47-116-23), ECOCOMBI 27 MFFI NG EDITION 2 (SEPT 2004) (GC 47-116-23), ECOSYSTEM 27 RFFI EDITION 1 LPG (OCT 2002) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 1 NG (OCT 2002) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 2 LPG (SEPT 2004) (GC 41-116-08), ECOSYSTEM 27 RFFI EDITION 2 NG (SEPT 2004) (GC 41-116-08)
manualmanualARISTON appliance manual — GENUS HE 24 FF NG UK (APRIL 2007) (GC 47-116-54), GENUS HE 30 FF NG UK (MAY 2007) (GC 47-116-55), GENUS HE 38 FF NG UK (MAY 2007) (GC 47-116-56)
manualmanualARISTON appliance manual — GENUS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-24), GENUS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-25)
manualmanualARISTON appliance manual — MICROGENUS 24 MFFI HE UK NG (GC 47-116-37), MICROGENUS 28 MFFI HE UK LPG (GC 47-116-38), MICROGENUS 32 MFFI HE UK NG (GC 47-116-39)
manualmanualARISTON appliance manual — MICROGENUS II 24 MFFI UK LPG, MICROGENUS II 24 MFFI UK MET (GC 47-116-25), MICROGENUS II 28 MFFI UK LPG, MICROGENUS II 28 MFFI UK MET (GC 47-116-26), MICROGENUS II 31 MFFI UK LPG (GC 47-116-27), MICROGENUS II 31 MFFI UK MET (GC 47-116-27)
manualNo technical questions yet for this part.
