Ariston

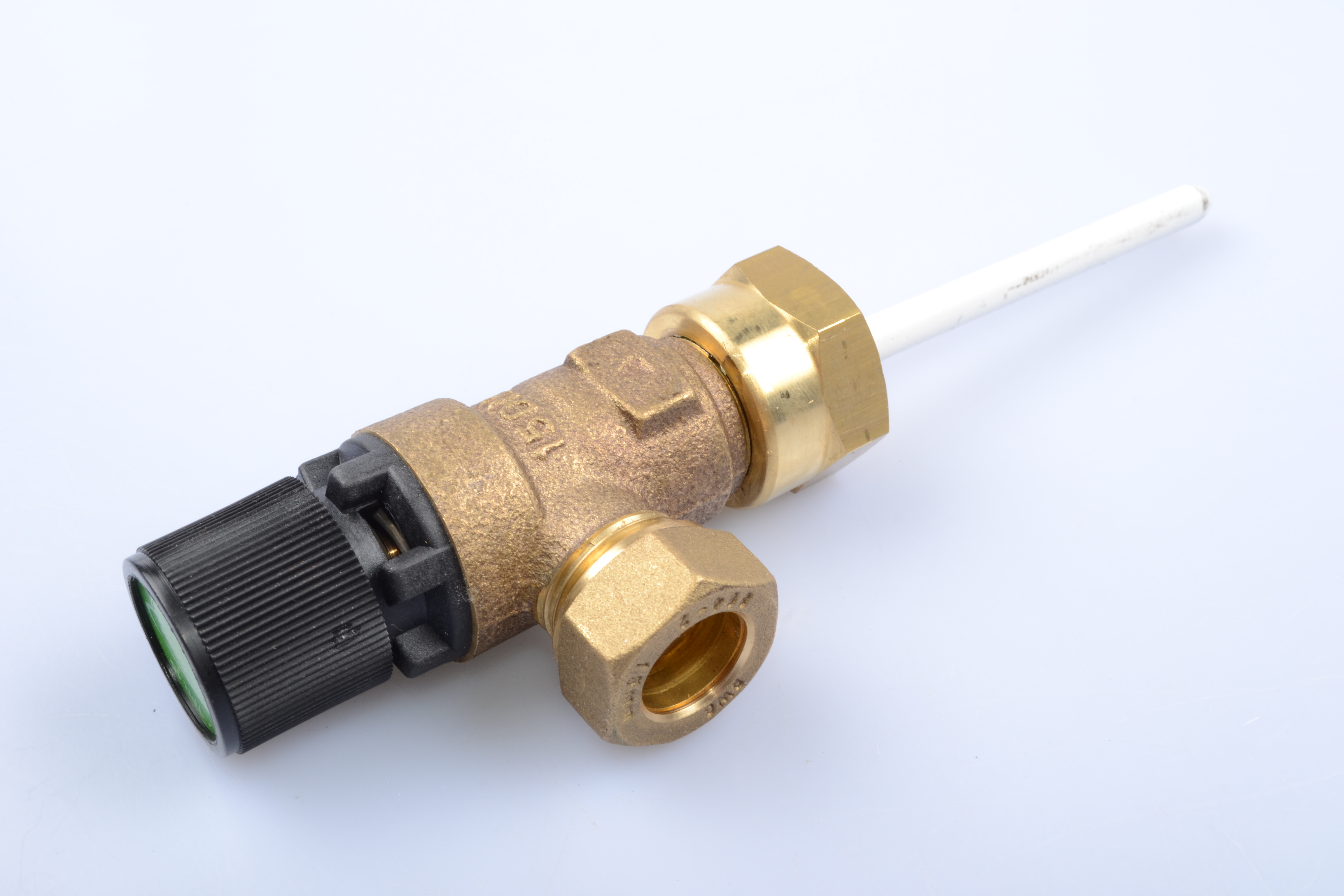

Ariston Temperature Pressure Relief Valve 7 Bar 3/4 Inch 969048
Ariston 969048 temperature and pressure relief valve, 7 bar with a 3/4 inch connection, for ST 50/80/100 Protech and Comfort/Contract cylinders.
At a glance
- Part type: Temperature and pressure relief valve
- Appliance family: ST 50, ST 80 and ST 100 Protech
- Also known as 1575856
£220.94
£184.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 969048 is a combined temperature and pressure relief valve rated at 7 bar with a 3/4 inch connection. It is fitted to Ariston hot water cylinders in the ST 50, ST 80 and ST 100 Protech range, together with Comfort Indirect and Contract Direct models. The valve opens when cylinder pressure or temperature rises beyond its set limits, discharging water through the tundish and discharge pipe to keep the cylinder within safe operating conditions.
Signs this part needs replacing
- Water discharging continuously from the tundish or discharge pipe with no heat or pressure demand on the cylinder
- Dripping from the valve outlet after the cylinder has cooled and system pressure has dropped back
- The valve failing to reseat after it has operated, leaving a steady weep
- Scale or corrosion around the valve body, spindle or seating face
- Cylinder pressure or temperature climbing beyond its normal operating range
Before you order
- Match the model and serial number range shown in the compatibility list, as Ariston cylinder builds changed across serial ranges.
- Check the previous part number 969040 against the valve currently fitted to the cylinder.
- Confirm the connection size and pressure rating on the existing valve before ordering.
- This is not a gas-carrying component; work on unvented cylinders should follow the manufacturer's instructions and the relevant building regulations.
Mechanical
| Part type | Temperature and pressure relief valve |
|---|---|
| Appliance family | ST 50, ST 80 and ST 100 Protech |
Compliance
| Manufacturer part number (MPN) | 969048 |
|---|---|
| Barcode / EAN | 5411692423575 |
| Commodity code | 8481 40 90 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 969040, 1575856 |
| Previous numbers | 969040 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON COMFORT INDIRECT STI 125 - FROM SERIAL No 98000000089052 TO SERIAL No 000000000890215 | — | — | — | |
| ARISTON ARISTON COMFORT INDIRECT STI 150 - FROM SERIAL No 980000000890503 TO SERIAL No 000000000890216 | — | — | — | |
| ARISTON ARISTON COMFORT INDIRECT STI 210 - FROM SERIAL No 980000000890504 TO SERIAL No 000000000890217 | — | — | — | |
| ARISTON ARISTON CONTRACT DIRECT STD 100 - FROM SERIAL No 970000000890495 TO SERIAL No 0000000893003 | — | — | — | |
| ARISTON ARISTON CONTRACT DIRECT STD 125 - FROM SERIAL No 970000000890499 TO SERIAL No 0000000893007 | — | — | — | |
| ARISTON ARISTON CONTRACT DIRECT STD 300 - FROM SERIAL No 990000000890353 | — | — | — | |
| ARISTON ARISTON CONTRACT DIRECT STI 150 - FROM SERIAL No 970000000890500 TO SERIAL No 000000000893008 | — | — | — | |
| ARISTON ARISTON CONTRACT DIRECT STI 210 - FROM SERIAL No 970000000890498 TO SERIAL No 000000000893006 | — | — | — | |
| ARISTON ARISTON CONTRACT INDIRECT STD 125 - FROM SERIAL No 970000000890499 TO SERIAL No 0000000893007 | — | — | — | |
| ARISTON ARISTON CONTRACT INDIRECT STD 300 - FROM SERIAL No 990000000890353 | — | — | — |
Showing 10 of 48 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — ST 100 PROTECH EDITION 3 (JAN 2011)
manualmanualARISTON appliance manual — ST 50 EDITION 2 (JUNE 2002)
manualmanualARISTON appliance manual — ST 50 PROTECH EDITION 3 (JAN 2011), ST 80 PROTECH EDITION 3 (JAN 2011)
manualmanualARISTON appliance manual — SUPER BRAVO SB 125 EDITION 2 (JUN 2002), SUPER BRAVO SB 150 EDITION 2 (JUN 2002), SUPER BRAVO SB 210 EDITION 2 (JUN 2002)
manualNo technical questions yet for this part.
