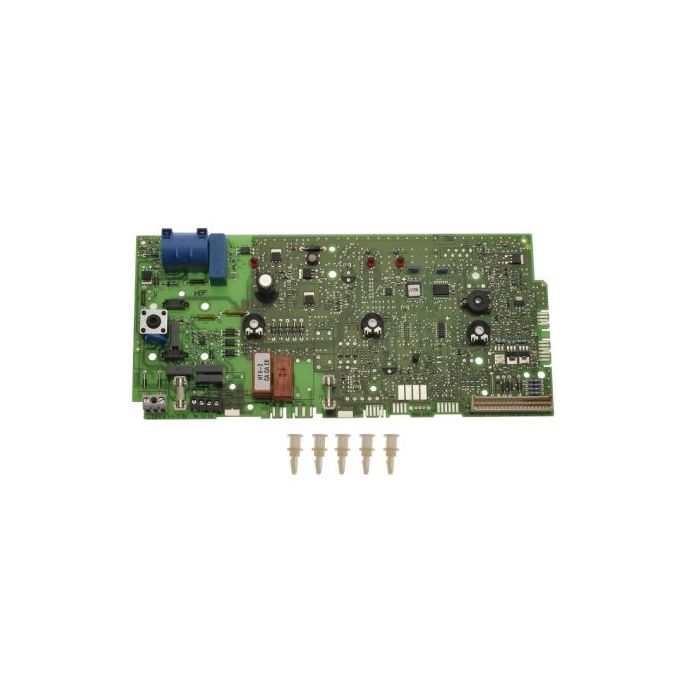

Worcester Bosch Printed Circuit Board 24CDi OF and BF 87483002200
Worcester Bosch 87483002200 printed circuit board (PCB) for Heattron 24CDi OF and 24CDi BF boilers, controlling ignition, sensing and safety functions.
At a glance
- Part type: Printed circuit board (PCB)
- Also known as 1020349, N1506-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£509.80
£424.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87483002200 is a printed circuit board (PCB) for the Heattron 24CDi boiler family. It acts as the control centre of the appliance, monitoring and regulating every process handled by the thermostats, sensors and switches. It also enforces the boiler's safety parameters, shutting the appliance down when operating conditions fall outside the permitted limits.
Signs this part needs replacing
- The boiler fails to fire or shows no response when there is a call for heat or hot water.
- The display or indicator LEDs are dead, intermittent or show an error code that will not clear.
- The appliance locks out repeatedly, or shuts down shortly after ignition.
- Sensors, thermostats and switches appear to have no effect on boiler operation.
- The board shows visible signs of heat damage, moisture ingress or burnt tracks.
Before you order
- Confirm the appliance GC number and model against the compatibility list, as the 24CDi OF and BF variants use different board configurations.
- Check the existing board for the previous number 8748300220 and the alternative codes 1020349 and N1506-1 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Board |
|---|
Compliance
| Manufacturer part number (MPN) | 87483002200 |
|---|---|
| GC number | 173-014 |
| Barcode / EAN | 4010009739241 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Electronic Circuit Accessories |
| Alternative numbers | 8748300220, 1020349, N1506-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER WORCESTER 24CDi BF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 24CDi OF LPG | — | — | — | |
| WORCESTER WORCESTER 24CDi OF NATURAL GAS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
