Worcester Bosch Transformer 87472013580
Worcester Bosch 87472013580 transformer for Greenstar combi and condensing boilers, supplying low-voltage power to the control electronics.
At a glance
- Part type: Transformer
- Also known as 1020323
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£104.76
£87.30 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

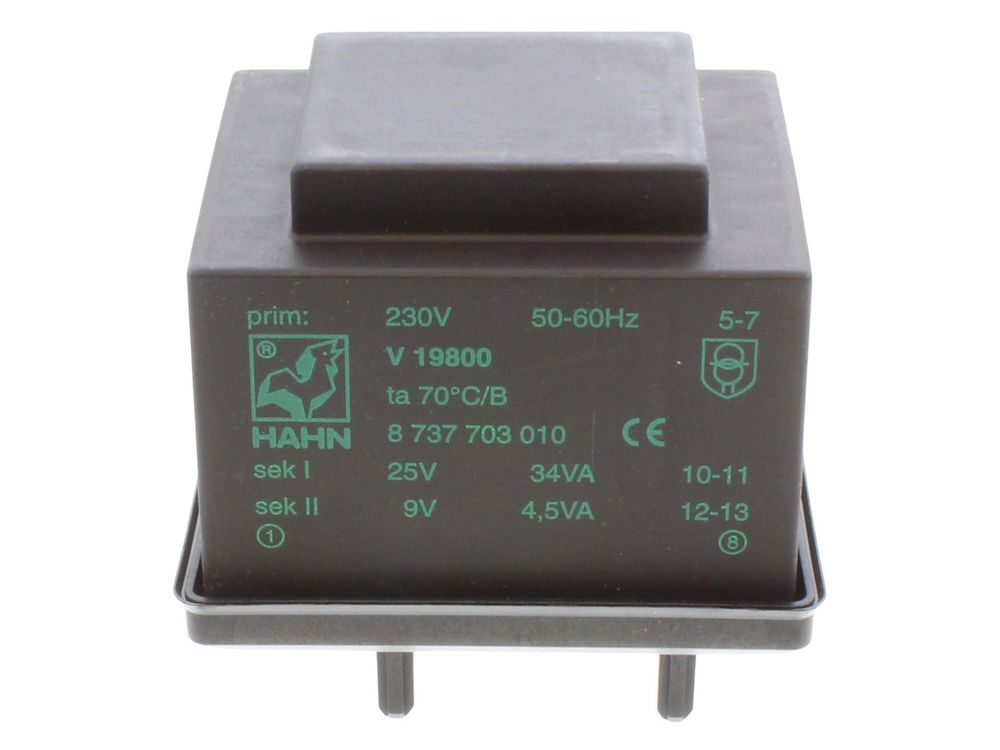

The Worcester Bosch 87472013580 is a transformer used in Worcester Bosch Greenstar gas boilers. It steps the mains supply down to the low voltage the boiler's control board and ignition electronics require, so the appliance can run its sequence of operations. It is a direct replacement component for the original factory-fitted transformer on the models listed below.
Signs this part needs replacing
- The boiler has no power at the control panel or display, with the mains supply confirmed present at the appliance.
- The internal fuse blows repeatedly after replacement.
- The boiler fails to start its ignition sequence or drops out intermittently during operation.
- A burning smell, discoloured windings or visible scorch marks around the transformer.
- Voltage at the transformer secondary is absent or well outside the expected range when tested.
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the GC number on the appliance data badge against the GC numbers in the compatibility list to confirm the correct variant.
- Confirm the model and serial number of the boiler, as several Greenstar variants use different control components.
- Note the alternative part number 1020323 when cross-referencing against an existing unit.
Mechanical
| Part type | Transformers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87472013580 |
|---|---|
| GC number | E27-291 |
| Barcode / EAN | 4010009540779 |
| Commodity code | 8504 31 80 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1020323 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS GREENSTAR CC1-FSN-GB NG 29KW COMBI | 47-108-05 | 47-108-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR GREENSTAR HE PLUS-FSN- GB28KW | 47-311-56 | 47-311-56 | — | — |
| WORCESTER BRITISH GAS GREENSTAR GREENSTAR HE-FSN-GB NG 27KW | 47-311-55 | 47-311-55 | — | — |
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM | 41-108-09 | 41-108-09 | — | — |
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM | 41-108-10 | 41-108-10 | — | — |
| WORCESTER BRITISH GAS GREENSTAR RD428 | 41-108-07 | 41-108-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR RD537I | 47-108-11 | 47-108-11 | — | — |
| WORCESTER BRITISH GAS RD430I | 41-108-06 | 41-108-06 | — | — |
| WORCESTER BRITISH GAS RD532 | 47-108-13 | 47-108-13 | — | — |
| WORCESTER BRITISH GAS RD532I | 47-108-10 | 47-108-10 | — | — |
Showing 10 of 66 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM (GC 41-108-09), BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM (GC 41-108-10)
manualmanualWORCESTER appliance manual — CS1 RSF 28KW NG (GC 41-108-02)
manualmanualWORCESTER appliance manual — GREENSTAR 25 HE (GC 47-311-73), GREENSTAR 30 HE COMBI (GC 47-311-74)
manualmanualWORCESTER appliance manual — GREENSTAR 28 HE SYSTEM (GC 41-311-58)
manualmanualWORCESTER appliance manual — GREENSTAR 29 HE CONVENTIONAL (JAN 2003) (GC 41-311-59), GREENSTAR 29 HE CONVENTIONAL (JUN 2002) (GC 41-311-56)
manualmanualWORCESTER appliance manual — GREENSTAR 30 HE PLUS COMBI (GC 47-311-75), GREENSTAR 35 HE PLUS COMBI (GC 47-311-76), GREENSTAR HE PLUS-FSN-GB35KW (GC 47-311-57)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440 (GC 47-311-82)
manualmanualWORCESTER appliance manual — GREENSTAR R25HE COMBI (GC 47-311-77), GREENSTAR R30HE COMBI (GC 47-311-78)
manualmanualWORCESTER appliance manual — GREENSTAR R28HE SYSTEM (GC 41-311-62)
manualmanualWORCESTER appliance manual — GREENSTAR R29HE CONVENTIONAL (GC 41-311-60), GREENSTAR R40HE CONVENTIONAL (GC 41-311-61)
manualmanualWORCESTER appliance manual — GREENSTAR R30HE PLUS COMBI (GC 47-311-79), GREENSTAR R35HE PLUS COMBI (GC 47-311-80), GREENSTAR R40HE PLUS COMBI (GC 47-311-81)
manualmanualWORCESTER appliance manual — GREENSTAR RSF COMBI NG (GC 47-311-44), GREENSTAR ZWBR 11-25 A31 LPG (GC 47-311-45)
manualmanualWORCESTER appliance manual — ICS1 RSF 28KW NG (GC 41-108-04)
manualNo technical questions yet for this part.
