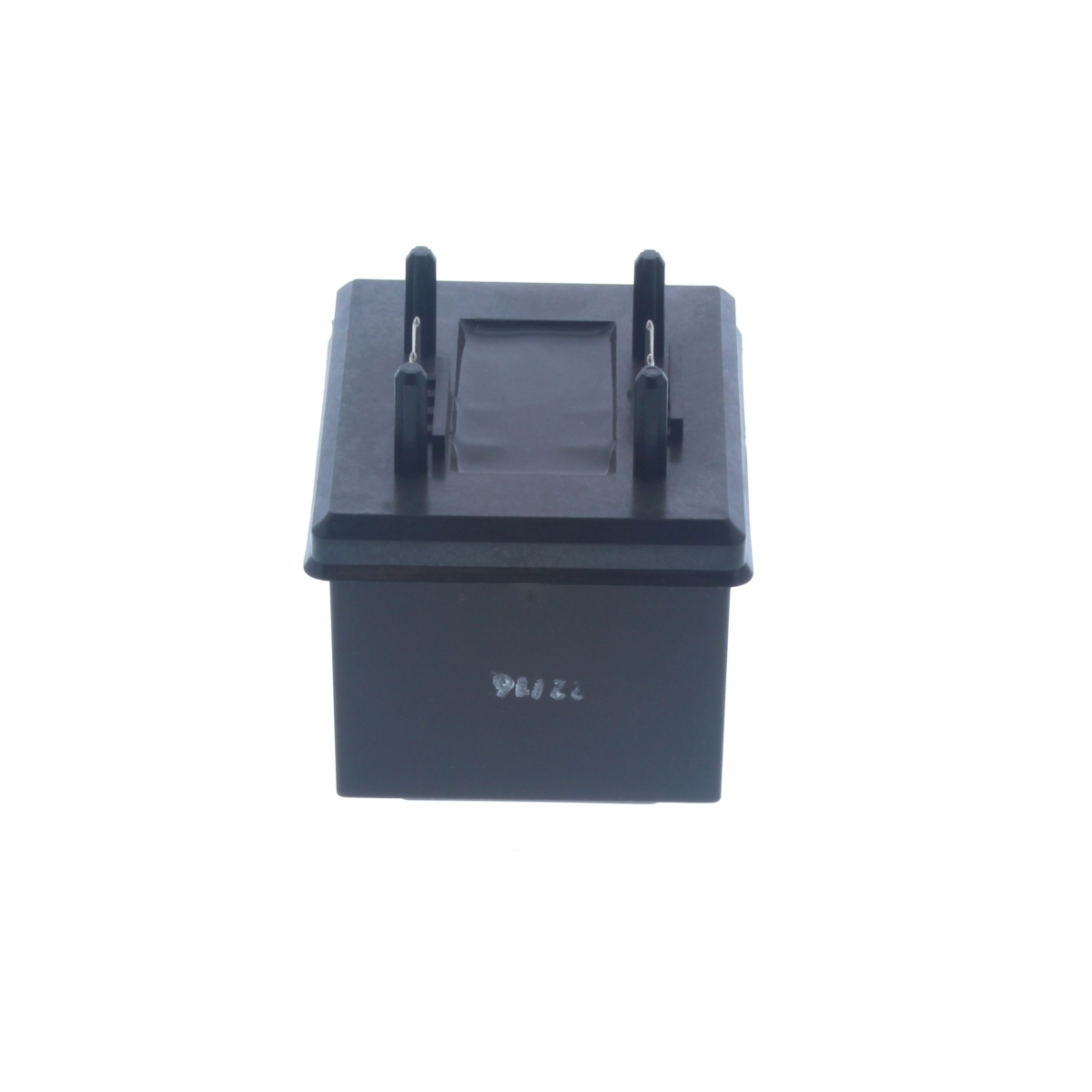

Worcester Bosch Transformer BV066-0188.0 87472012480
Worcester Bosch control panel transformer BV066-0188.0, part 87472012480, for 24 CDI and related Worcester Bosch combi models.
At a glance
- Part type: Transformer, BV066-0188.0
- Also known as 1020315, N0116
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£53.12
£44.27 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The transformer BV066-0188.0 is a Worcester Bosch electronic component that sits within the control panel section of the appliance. It supplies the low-voltage feed that the control board and user interface rely on, so the display, knobs and programming functions can operate. It is a Worcester Bosch spare, listed under electronics and controls.
Signs this part needs replacing
- The control panel display stays blank or flickers when the appliance is powered.
- Control knobs and buttons stop responding, or the appliance ignores programmed settings.
- The boiler runs intermittently or fails to fire despite a live supply at the appliance.
- A buzzing, humming or burning smell from the control panel area.
- Visible scorching, discolouration or heat damage around the transformer windings or connections.
Before you order
- Check the GC number and appliance serial plate to confirm the model before ordering.
- Confirm the existing transformer markings against BV066-0188.0 and part number 87472012480.
- Earlier numbers 8-747-201-274-0, 87472012740 and ZDELE204 may be found on older units.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | TRANSFORMER - BV066-0188.0 |
|---|
Compliance
| Manufacturer part number (MPN) | 87472012480 |
|---|---|
| GC number | 299-516 |
| Barcode / EAN | 4010009581932 |
| Commodity code | 8504 31 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8-747-201-274-0, ZDELE204, 1020315, N0116 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 25 SI RSF COMBI LPG | 47-311-50 | 47-311-50 | — | — |
| WORCESTER 25 SI RSF COMBI NG | 47-311-49 | 47-311-49 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
Showing 10 of 37 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 25 SI RSF COMBI LPG (GC 47-311-50), 25 SI RSF COMBI NG (GC 47-311-49), 28 SI RSF LPG (GC 47-311-52), 28 SI RSF NG (GC 47-311-51)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualmanualWORCESTER appliance manual — 35 CDI RSF LPG (GC 47-311-40), 35 CDI RSF NG (GC 47-311-39)
manualmanualWORCESTER appliance manual — BRITISH GAS C1-FSN-GB NG COMBI (GC 47-311-53)
manualNo technical questions yet for this part.
