Worcester Bosch

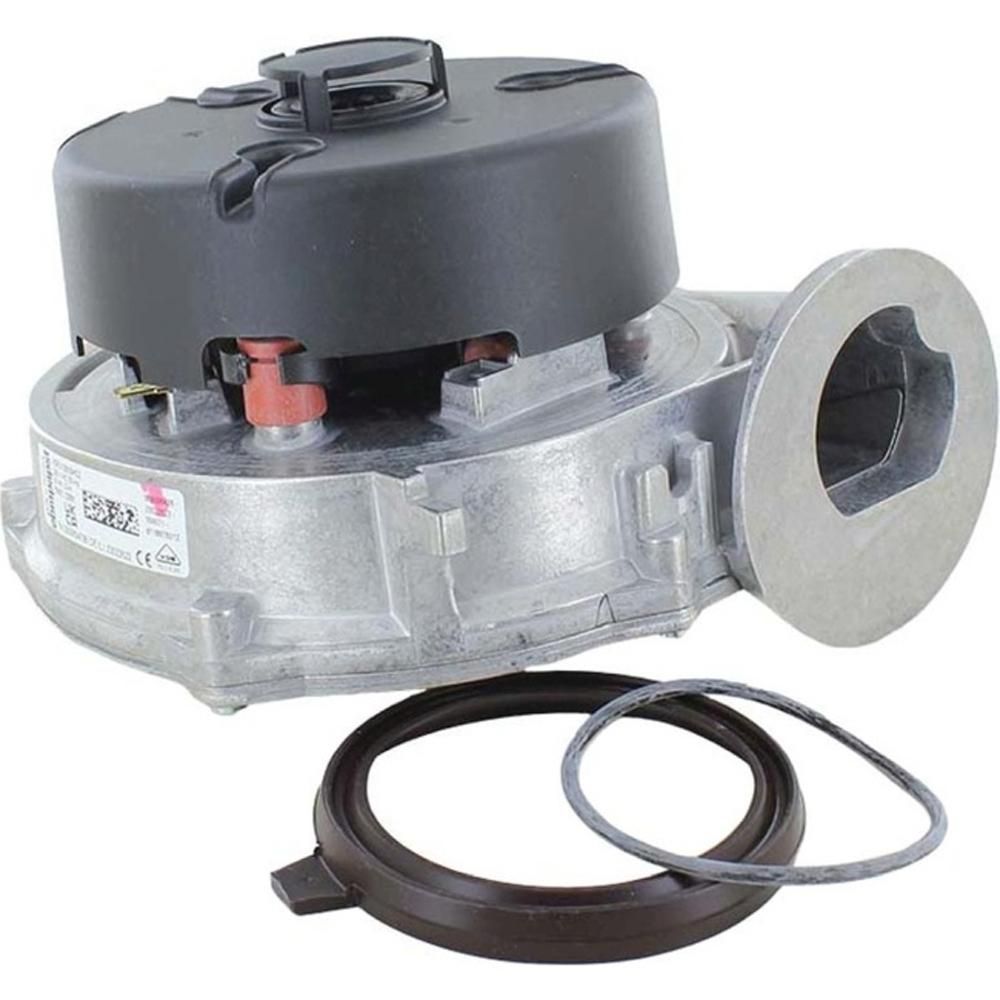

Worcester Bosch Fan Assembly Greenstar 8000 8737709295
Worcester Bosch fan assembly 8737709295 for Greenstar 8000 Life combi boilers, drawing air into the combustion chamber and clearing flue gases.
At a glance
- Part type: Fan assembly
- Also known as 2249124, N9183-2
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£486.10
£405.08 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8737709295 is a fan assembly for the Greenstar 8000 range of gas boilers. It draws a controlled flow of fresh air into the combustion chamber so the gas burns correctly, and at the same time pushes the products of combustion out through the flue. Because it governs both sides of the combustion process, a failing fan quickly shows up as ignition, flame or flue-related faults.
Signs this part needs replacing
- The boiler locks out or fails to ignite, often with a fan or flue-related fault code on the display
- Grinding, scraping or whining noise from the fan area when the boiler starts up
- The fan runs intermittently, runs at the wrong speed, or does not turn at all
- Repeated overheat or flue gas faults after the boiler has fired
- Visible damage, stiffness or debris around the impeller when the fan is inspected
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the GC number and model on the boiler data badge against the compatibility list before ordering.
- Confirm the number on the existing fan against 8737709295 and the alternative numbers listed below.
- Check whether a gasket or seal is required for the fan mounting on your model.
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 8737709295 |
|---|---|
| Barcode / EAN | 8737709295 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8-718-644-395-0, 2249124, N9183-2 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG | 47-800-18 | 47-800-18 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG | 47-800-17 | 47-800-17 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG | 47-800-16 | 47-800-16 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG | 47-800-15 | 47-800-15 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG | 47-800-14 | 47-800-14 | — | — |
Showing 10 of 192 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG (GC 47-800-18), GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG (GC 47-800-17), GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG (GC 47-800-16), GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG (GC 47-800-15), GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG (GC 47-800-14), GREENSTAR LIFE GR8300iW 30 C LPG, GREENSTAR LIFE GR8300iW 30 C NG (GC 47-800-18), GREENSTAR LIFE GR8300iW 35 C LPG, GREENSTAR LIFE GR8300iW 35 C NG (GC 47-800-17), GREENSTAR LIFE GR8300iW 40 C LPG, GREENSTAR LIFE GR8300iW 40 C NG (GC 47-800-16), GREENSTAR LIFE GR8300iW 45 C LPG, GREENSTAR LIFE GR8300iW 45 C NG (GC 47-800-15), GREENSTAR LIFE GR8300iW 50 C LPG, GREENSTAR LIFE GR8300iW 50 C NG (GC 47-800-14)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R NG (GC 41-406-98), GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R NG (GC 41-406-97), GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R NG (GC 41-406-96), GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R NG (GC 41-406-95), GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R NG (GC 41-406-94), GREENSTAR LIFE GR8300iW 30 R LPG, GREENSTAR LIFE GR8300iW 30 R NG (GC 41-406-98), GREENSTAR LIFE GR8300iW 35 R LPG, GREENSTAR LIFE GR8300iW 35 R NG (GC 41-406-97), GREENSTAR LIFE GR8300iW 40 R LPG, GREENSTAR LIFE GR8300iW 40 R NG (GC 41-406-96), GREENSTAR LIFE GR8300iW 45 R LPG, GREENSTAR LIFE GR8300iW 45 R NG (GC 41-406-95), GREENSTAR LIFE GR8300iW 50 R LPG, GREENSTAR LIFE GR8300iW 50 R NG (GC 41-406-94)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S NG (GC 41-406-91), GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S NG (GC 41-406-90), GREENSTAR LIFE GR8300iW 30 S LPG, GREENSTAR LIFE GR8300iW 30 S NG (GC 41-406-91), GREENSTAR LIFE GR8300iW 35 S LPG, GREENSTAR LIFE GR8300iW 35 S NG (GC 41-406-90)
manualmanualWORCESTER appliance manual — GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C NG (GC 47-800-03), GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C NG (GC 47-800-02), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C NG (GC 47-800-01), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C NG (GC 47-406-99), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C NG (GC 47-406-98), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB NG (GC 47-406-93), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S NG (GC 41-406-87), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S NG (GC 41-406-86), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 30 C LPG, GREENSTAR STYLE GR8700iW 30 C NG (GC 47-800-03), GREENSTAR STYLE GR8700iW 30 CB LPG, GREENSTAR STYLE GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR STYLE GR8700iW 30 S LPG, GREENSTAR STYLE GR8700iW 30 S NG (GC 41-406-87), GREENSTAR STYLE GR8700iW 30 SB LPG, GREENSTAR STYLE GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR STYLE GR8700iW 35 C LPG, GREENSTAR STYLE GR8700iW 35 C NG (GC 47-800-02), GREENSTAR STYLE GR8700iW 35 CB LPG, GREENSTAR STYLE GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR STYLE GR8700iW 35 S LPG, GREENSTAR STYLE GR8700iW 35 S NG (GC 41-406-86), GREENSTAR STYLE GR8700iW 35 SB LPG, GREENSTAR STYLE GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 40 C LPG, GREENSTAR STYLE GR8700iW 40 C NG (GC 47-800-01), GREENSTAR STYLE GR8700iW 40 CB LPG, GREENSTAR STYLE GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR STYLE GR8700iW 45 C LPG, GREENSTAR STYLE GR8700iW 45 C NG (GC 47-406-99), GREENSTAR STYLE GR8700iW 45 CB LPG, GREENSTAR STYLE GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR STYLE GR8700iW 50 C LPG, GREENSTAR STYLE GR8700iW 50 C NG (GC 47-406-98), GREENSTAR STYLE GR8700iW 50 CB LPG, GREENSTAR STYLE GR8700iW 50 CB NG (GC 47-406-93)
manualmanualWORCESTER appliance manual — GREENSTAR FS 42CDi ErP REGULAR LPG (GC 41-406-65), GREENSTAR FS 42CDi ErP REGULAR NG (GC 41-406-64)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 550CDi ErP LPG (7731600101) (GC 47-406-92), GREENSTAR HIGHFLOW 550CDi ErP NG (7731600100) (GC 47-406-91)
manualNo technical questions yet for this part.
