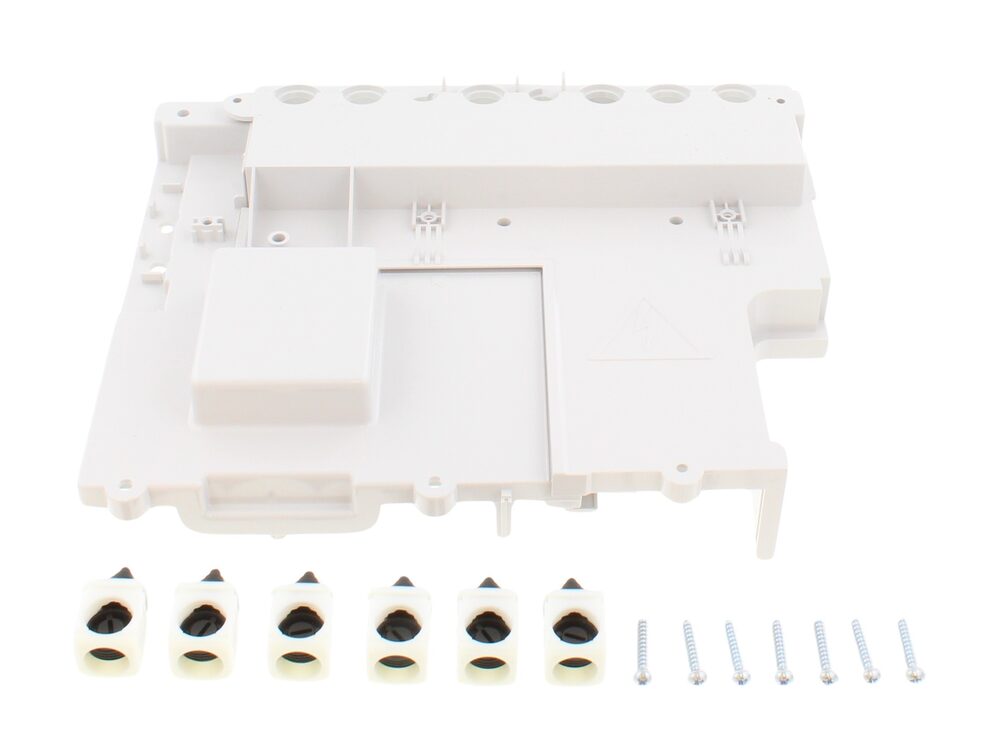

Worcester Bosch Back Panel 87377045510
Worcester Bosch 87377045510 back panel casing assembly for Greenstar Junior and CDi boilers, forming part of the appliance outer casing.
At a glance
- Part type: Casing assembly (back panel)
- Also known as 1031003
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£18.77
£15.64 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87377045510 is a back panel casing assembly used on Worcester Bosch Greenstar gas boilers. It forms part of the appliance outer casing, closing off the rear of the unit and shielding the internal components and combustion area from the surrounding installation space. The panel is supplied as a complete casing assembly, so it mounts directly in place of the original without modification.
Signs this part needs replacing
- Rust or corrosion breaking through the panel surface
- Dents, buckling or distortion that stop the casing sitting flush against the appliance frame
- Heat discolouration or flaking paint around the rear of the unit
- Elongated or torn screw holes and mounting points that no longer hold the panel securely
- The panel no longer sealing correctly against the boiler body, leaving internal components exposed
Before you order
- Check the appliance GC number and serial number against the compatibility list before ordering, as this panel is used across several Greenstar Junior and CDi variants.
- The earlier number 86135604100 and the alternative code 1031003 identify the same back panel.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Casings, Covers & Panels |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87377045510 |
|---|---|
| GC number | J08-369 |
| Barcode / EAN | 4051516754433 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 86135604100, 1031003 |
| Previous numbers | 86135604100 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 24I JUNIOR MK5 LPG | 47-406-55 | 47-406-55 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 NG | 47-406-54 | 47-406-54 | — | — |
| WORCESTER GREENSTAR 27CDI EMS COMBI LPG | 47-406-13 | 47-406-13 | — | — |
| WORCESTER GREENSTAR 27CDI EMS COMBI NG | 47-406-12 | 47-406-12 | — | — |
| WORCESTER GREENSTAR 28I JUNIOR MK5 LPG | 47-406-57 | 47-406-57 | — | — |
| WORCESTER GREENSTAR 28I JUNIOR MK5 NG | 47-406-56 | 47-406-56 | — | — |
| WORCESTER GREENSTAR 29CDI CLASSIC COMBI LPG | 47-406-35 | 47-406-35 | — | — |
| WORCESTER GREENSTAR 29CDI CLASSIC COMBI NG | 47-406-34 | 47-406-34 | — | — |
| WORCESTER GREENSTAR 29CDI ErP CLASSIC LPG | 47-406-66 | 47-406-66 | — | — |
| WORCESTER GREENSTAR 29CDI ErP CLASSIC NG | 47-406-65 | 47-406-65 | — | — |
Showing 10 of 60 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56)
manualmanualWORCESTER appliance manual — GREENSTAR 27CDI EMS COMBI LPG (GC 47-406-13), GREENSTAR 27CDI EMS COMBI NG (GC 47-406-12), GREENSTAR 37CDI EMS COMBI LPG (GC 47-406-09), GREENSTAR 37CDI EMS COMBI NG (GC 47-406-08), GREENSTAR 42CDI CLASSIC COMBI LPG (GC 47-406-11), GREENSTAR 42CDI CLASSIC COMBI NG (GC 47-406-10)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI CLASSIC COMBI LPG (GC 47-406-35), GREENSTAR 29CDI CLASSIC COMBI NG (GC 47-406-34), GREENSTAR 34CDI CLASSIC COMBI LPG (GC 47-406-37), GREENSTAR 34CDI CLASSIC COMBI NG (GC 47-406-36), GREENSTAR 38CDI CLASSIC COMBI LPG (GC 47-406-39), GREENSTAR 38CDI CLASSIC COMBI NG (GC 47-406-38)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI ErP CLASSIC LPG (GC 47-406-66), GREENSTAR 29CDI ErP CLASSIC NG (GC 47-406-65), GREENSTAR 34CDI ErP CLASSIC LPG (GC 47-406-68), GREENSTAR 34CDI ErP CLASSIC NG (GC 47-406-67), GREENSTAR 38CDI ErP CLASSIC LPG (GC 47-406-70), GREENSTAR 38CDI ErP CLASSIC NG (GC 47-406-69), GREENSTAR 42CDI ErP CLASSIC LPG (GC 47-406-72), GREENSTAR 42CDI ErP CLASSIC NG (GC 47-406-71)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI CONVENTIONAL LPG (GC 41-311-73), GREENSTAR 30CDI CONVENTIONAL NG (GC 41-311-71), GREENSTAR 40CDI CONVENTIONAL LPG (GC 41-311-74), GREENSTAR 40CDI CONVENTIONAL NG (GC 41-311-72)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC LPG (GC 41-406-38), GREENSTAR 30CDI ErP CLASSIC NG (GC 41-406-37)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC REGULAR LPG (GC 41-406-34), GREENSTAR 30CDI ErP CLASSIC REGULAR NG (GC 41-406-33), GREENSTAR 40CDI ErP CLASSIC REGULAR LPG (GC 41-406-36), GREENSTAR 40CDI ErP CLASSIC REGULAR NG (GC 41-406-35)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI NEW EMS LPG (GC 47-311-97), GREENSTAR 30CDI NEW EMS NG (GC 47-311-93)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI SYSTEM LPG (GC 41-311-97), GREENSTAR 30CDI SYSTEM NG (GC 41-311-93)
manualmanualWORCESTER appliance manual — GREENSTAR 35CDI ErP CLASSIC SYSTEM LPG (GC 41-406-40), GREENSTAR 35CDI ErP CLASSIC SYSTEM NG (GC 41-406-39)
