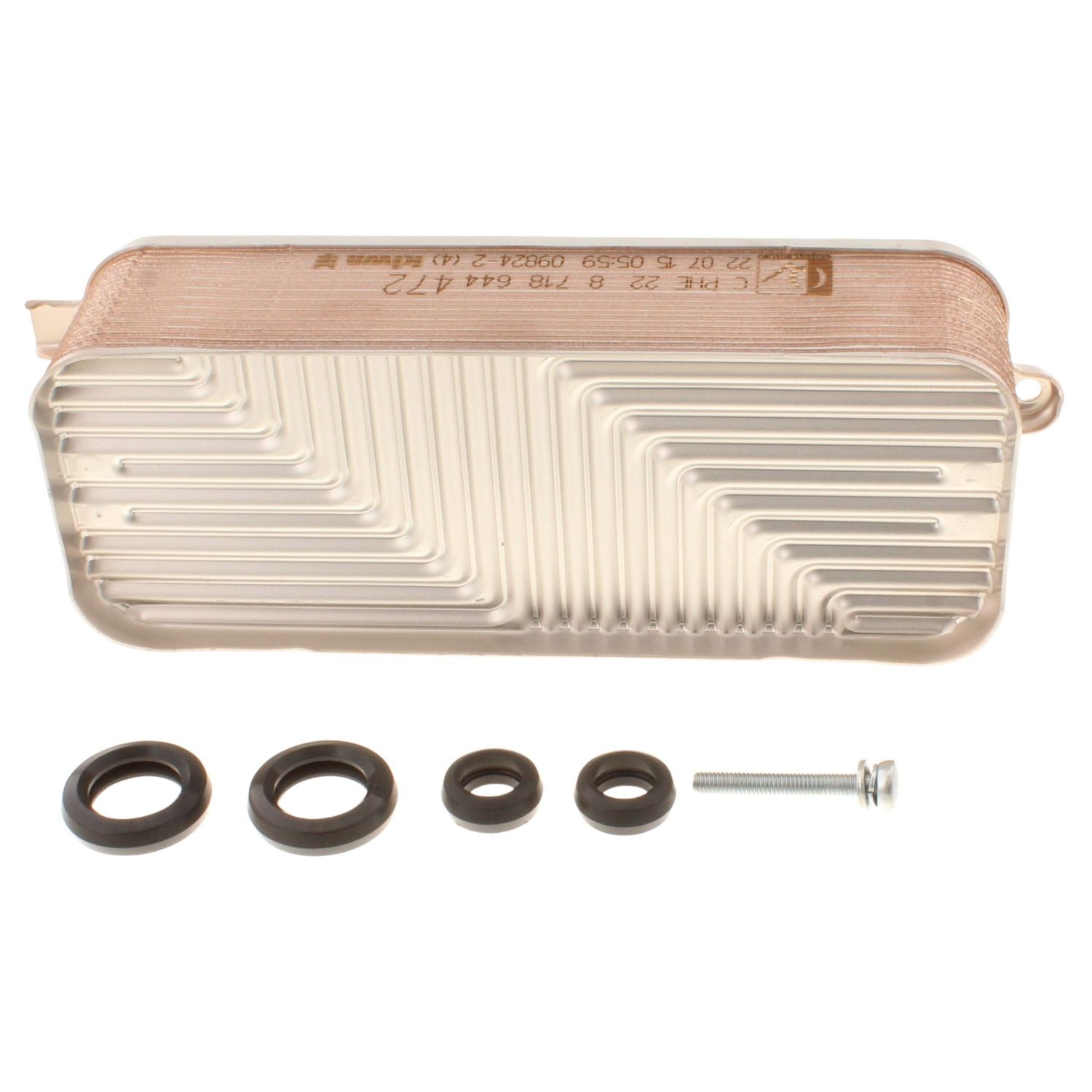

Worcester Bosch Plate Heat Exchanger 22 Plate 8737602364
Worcester Bosch 22-plate C-PHE heat exchanger, part 8737602364, for Greenstar combi and system boilers; GC number 47-800-39.
At a glance
- Part type: Plate heat exchanger (C-PHE)
- Also known as WB8737602364, 1031054, N9363-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£55.74
£46.45 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8737602364 is a 22-plate brazed plate heat exchanger, listed by the manufacturer as a C-PHE (combi plate heat exchanger). It sits in the domestic hot water circuit of Worcester Bosch Greenstar appliances, where it transfers heat from the primary heating water into the mains cold water feed to deliver hot water on demand. The plate stack gives a large surface area in a compact body, so it is a serviceable item that can scale up or block over time.
Signs this part needs replacing
- Hot water runs lukewarm or loses temperature as the tap is held open
- Reduced hot water flow rate compared with the cold supply
- Fluctuating outlet temperature at hot taps and showers
- Visible weeping or staining between the plates or at the connections
- Scale or debris restricting the secondary side, often after work on the mains supply
Before you order
- Check the GC number and appliance serial plate against the compatibility list to confirm the correct variant
- Compare the existing plate count and part number on the removed component before ordering
- Have a replacement gasket or seal kit to hand if the connections are disturbed during the swap
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Plate heat exchanger (C-PHE) |
|---|
Compliance
| Manufacturer part number (MPN) | 8737602364 |
|---|---|
| GC number | 47-800-39 |
| Barcode / EAN | 8737602364 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB8737602364, WB8737602364, 1031054, N9363-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 1000 SERIES GR1000W 30 C NG | 47-800-39 | 47-800-39 | — | — |
| WORCESTER GREENSTAR GR1000W 30 C NG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 30 SI COMPACT LPG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 30 SI COMPACT NG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 30Si ErP COMPACT LPG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 30Si ErP COMPACT NG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 32CDi ErP COMPACT LPG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 32CDi ErP COMPACT NG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 36CDi ErP COMPACT LPG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR 36CDi ErP COMPACT NG | — | — | — |
