Worcester Bosch Seal Siphon 8737602313
Siphon seal for Worcester Bosch Greenstar 2000 Combi and 8000 Life Combi boilers, part 8737602313.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 2249284
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£15.41
£12.84 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

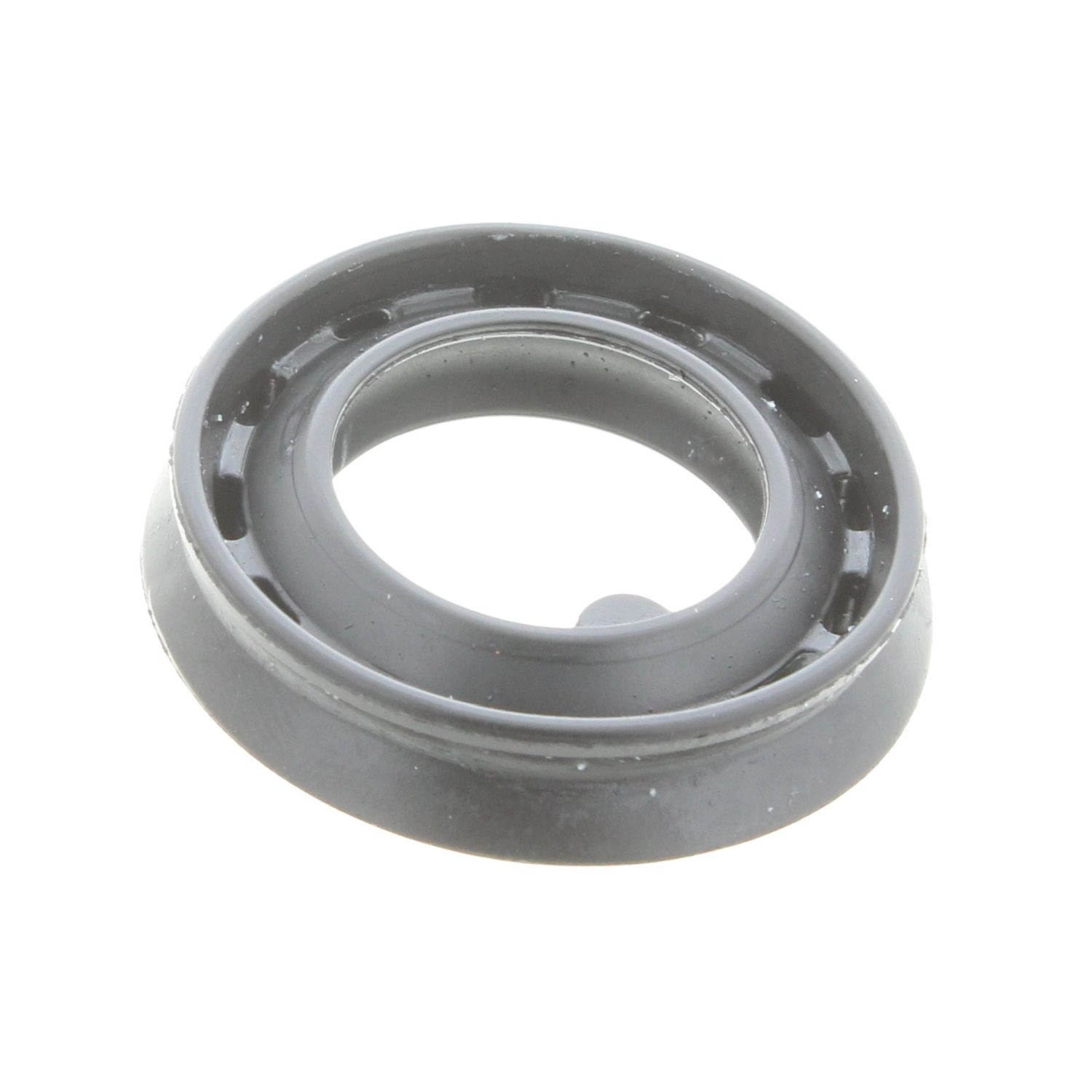

The Worcester Bosch 8737602313 is a siphon seal used in the condensate siphon assembly of Worcester Bosch gas boilers. It sits inside the siphon or trap and forms the water seal that prevents flue gases escaping through the condensate discharge route. It is a direct replacement item for the seal originally fitted to Greenstar 2000 Combi and Greenstar 8000 Life Combi appliances, along with a wide range of other Worcester Bosch models.
Signs this part needs replacing
- Water pooling or dripping around the condensate siphon or trap
- Damp patches or staining on the surface beneath the boiler casing
- A flue gas smell close to the condensate discharge point
- The seal looking hardened, flattened or cracked when the trap is opened
- A leak appearing after the siphon has been removed and refitted during servicing
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the GC number or the serial plate on the appliance to confirm the model before ordering.
- Compare the removed seal with the new one, as the siphon assembly can use more than one seal.
- Quote part number 8737602313 or alternative number 2249284 when ordering.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|
Compliance
| Manufacturer part number (MPN) | 8737602313 |
|---|---|
| Barcode / EAN | 8737602313 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2249284 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C LPG | 47-800-27 | 47-800-27 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C NG | 47-800-26 | 47-800-26 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C LPG | 47-800-29 | 47-800-29 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C NG | 47-800-28 | 47-800-28 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG | 47-800-18 | 47-800-18 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG | 47-800-17 | 47-800-17 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG | 47-800-16 | 47-800-16 | — | — |
Showing 10 of 192 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG (GC 47-800-18), GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG (GC 47-800-17), GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG (GC 47-800-16), GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG (GC 47-800-15), GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG (GC 47-800-14), GREENSTAR LIFE GR8300iW 30 C LPG, GREENSTAR LIFE GR8300iW 30 C NG (GC 47-800-18), GREENSTAR LIFE GR8300iW 35 C LPG, GREENSTAR LIFE GR8300iW 35 C NG (GC 47-800-17), GREENSTAR LIFE GR8300iW 40 C LPG, GREENSTAR LIFE GR8300iW 40 C NG (GC 47-800-16), GREENSTAR LIFE GR8300iW 45 C LPG, GREENSTAR LIFE GR8300iW 45 C NG (GC 47-800-15), GREENSTAR LIFE GR8300iW 50 C LPG, GREENSTAR LIFE GR8300iW 50 C NG (GC 47-800-14)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R NG (GC 41-406-98), GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R NG (GC 41-406-97), GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R NG (GC 41-406-96), GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R NG (GC 41-406-95), GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R NG (GC 41-406-94), GREENSTAR LIFE GR8300iW 30 R LPG, GREENSTAR LIFE GR8300iW 30 R NG (GC 41-406-98), GREENSTAR LIFE GR8300iW 35 R LPG, GREENSTAR LIFE GR8300iW 35 R NG (GC 41-406-97), GREENSTAR LIFE GR8300iW 40 R LPG, GREENSTAR LIFE GR8300iW 40 R NG (GC 41-406-96), GREENSTAR LIFE GR8300iW 45 R LPG, GREENSTAR LIFE GR8300iW 45 R NG (GC 41-406-95), GREENSTAR LIFE GR8300iW 50 R LPG, GREENSTAR LIFE GR8300iW 50 R NG (GC 41-406-94)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S NG (GC 41-406-91), GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S NG (GC 41-406-90), GREENSTAR LIFE GR8300iW 30 S LPG, GREENSTAR LIFE GR8300iW 30 S NG (GC 41-406-91), GREENSTAR LIFE GR8300iW 35 S LPG, GREENSTAR LIFE GR8300iW 35 S NG (GC 41-406-90)
manualmanualWORCESTER appliance manual — GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C NG (GC 47-800-03), GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C NG (GC 47-800-02), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C NG (GC 47-800-01), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C NG (GC 47-406-99), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C NG (GC 47-406-98), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB NG (GC 47-406-93), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S NG (GC 41-406-87), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S NG (GC 41-406-86), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 30 C LPG, GREENSTAR STYLE GR8700iW 30 C NG (GC 47-800-03), GREENSTAR STYLE GR8700iW 30 CB LPG, GREENSTAR STYLE GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR STYLE GR8700iW 30 S LPG, GREENSTAR STYLE GR8700iW 30 S NG (GC 41-406-87), GREENSTAR STYLE GR8700iW 30 SB LPG, GREENSTAR STYLE GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR STYLE GR8700iW 35 C LPG, GREENSTAR STYLE GR8700iW 35 C NG (GC 47-800-02), GREENSTAR STYLE GR8700iW 35 CB LPG, GREENSTAR STYLE GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR STYLE GR8700iW 35 S LPG, GREENSTAR STYLE GR8700iW 35 S NG (GC 41-406-86), GREENSTAR STYLE GR8700iW 35 SB LPG, GREENSTAR STYLE GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 40 C LPG, GREENSTAR STYLE GR8700iW 40 C NG (GC 47-800-01), GREENSTAR STYLE GR8700iW 40 CB LPG, GREENSTAR STYLE GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR STYLE GR8700iW 45 C LPG, GREENSTAR STYLE GR8700iW 45 C NG (GC 47-406-99), GREENSTAR STYLE GR8700iW 45 CB LPG, GREENSTAR STYLE GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR STYLE GR8700iW 50 C LPG, GREENSTAR STYLE GR8700iW 50 C NG (GC 47-406-98), GREENSTAR STYLE GR8700iW 50 CB LPG, GREENSTAR STYLE GR8700iW 50 CB NG (GC 47-406-93)
