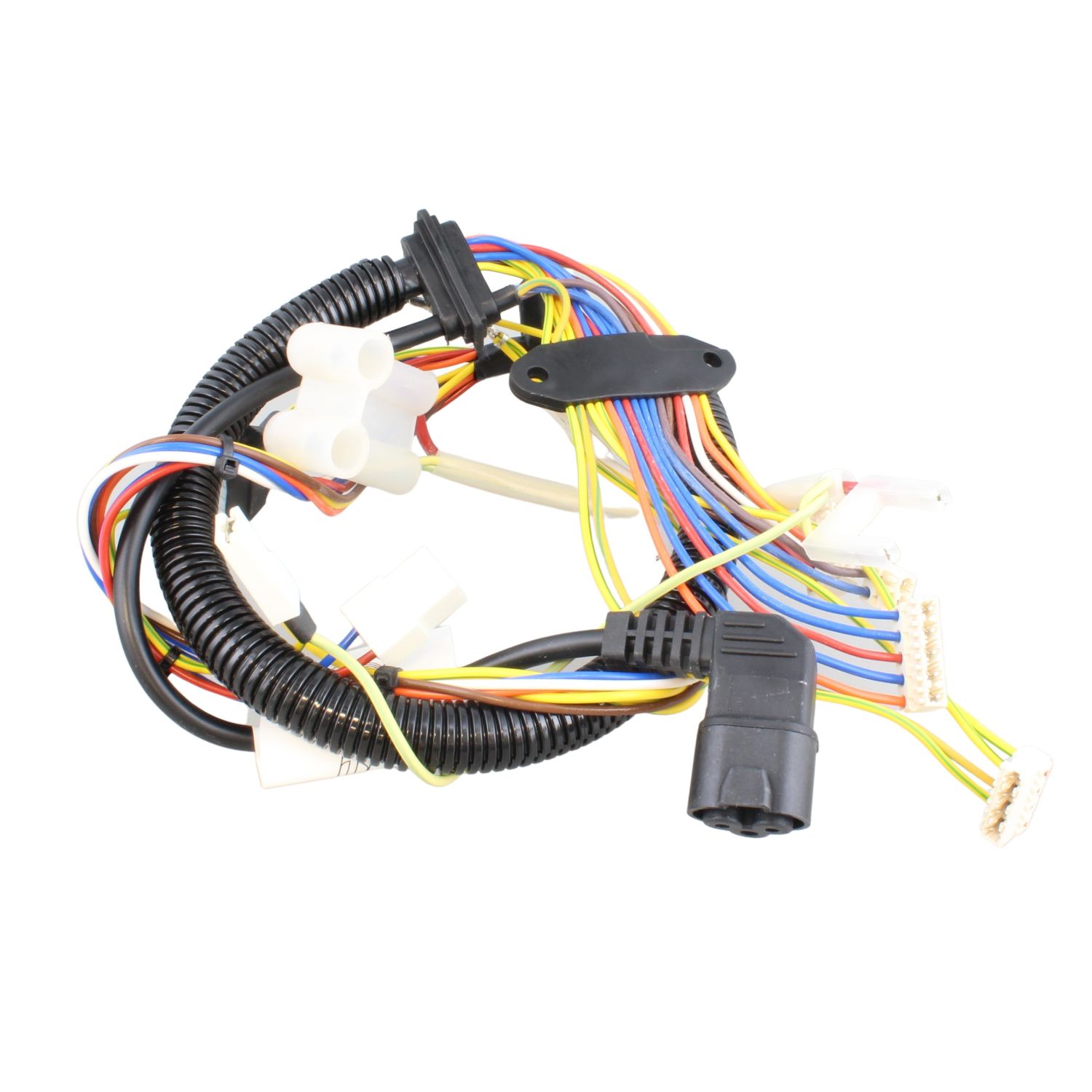

Worcester Bosch Wiring Harness Assembly HV & Ignition 87186908270
HV and ignition wiring harness assembly for Worcester Bosch Greenstar Compact and CDI boilers, part 87186908270.
At a glance
- Part type: Wiring harness (HV and ignition)
- Also known as 2247093
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£62.77
£52.31 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87186908270 is a high-voltage (HV) and ignition wiring harness assembly used on Worcester Bosch Greenstar gas boilers. It carries the high-voltage supply and the ignition circuit between the boiler's control electronics and the ignition electrode, allowing the electrode to spark and the burner to light. The harness is supplied as a complete assembly with its connectors already fitted.
Signs this part needs replacing
- The boiler fails to light, with no spark at the ignition electrode.
- Ignition lockout or flame-failure faults that return after resetting the appliance.
- Cracked, brittle or heat-damaged insulation along the harness leads.
- Loose, corroded or discoloured terminals at the electrode or the control board.
- Visible arcing marks or a burnt smell around the ignition lead.
Before you order
- Check the boiler's GC number and model against the compatibility list; more than one harness variant is used across the Greenstar range.
- Quote the alternative number 2247093 when cross-referencing older documentation or parts listings.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|
Compliance
| Manufacturer part number (MPN) | 87186908270 |
|---|---|
| Barcode / EAN | 87186908270 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2247093 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 27I COMPACT SYSTEM LPG | 41-406-14 | 41-406-14 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM NG | 41-406-13 | 41-406-13 | — | — |
| WORCESTER GREENSTAR 28 CDI COMPACT LPG | 47-406-45 | 47-406-45 | — | — |
| WORCESTER GREENSTAR 28 CDI COMPACT NG | 47-406-44 | 47-406-44 | — | — |
| WORCESTER GREENSTAR 30I COMPACT SYSTEM LPG | 41-406-16 | 41-406-16 | — | — |
| WORCESTER GREENSTAR 30I COMPACT SYSTEM NG | 41-406-15 | 41-406-15 | — | — |
| WORCESTER GREENSTAR 32CDI COMPACT LPG | 47-406-47 | 47-406-47 | — | — |
| WORCESTER GREENSTAR 32CDI COMPACT NG | 47-406-46 | 47-406-46 | — | — |
| WORCESTER GREENSTAR 36CDI COMPACT LPG | 47-406-49 | 47-406-49 | — | — |
| WORCESTER GREENSTAR 36CDI COMPACT NG | 47-406-48 | 47-406-48 | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
manualNo technical questions yet for this part.
