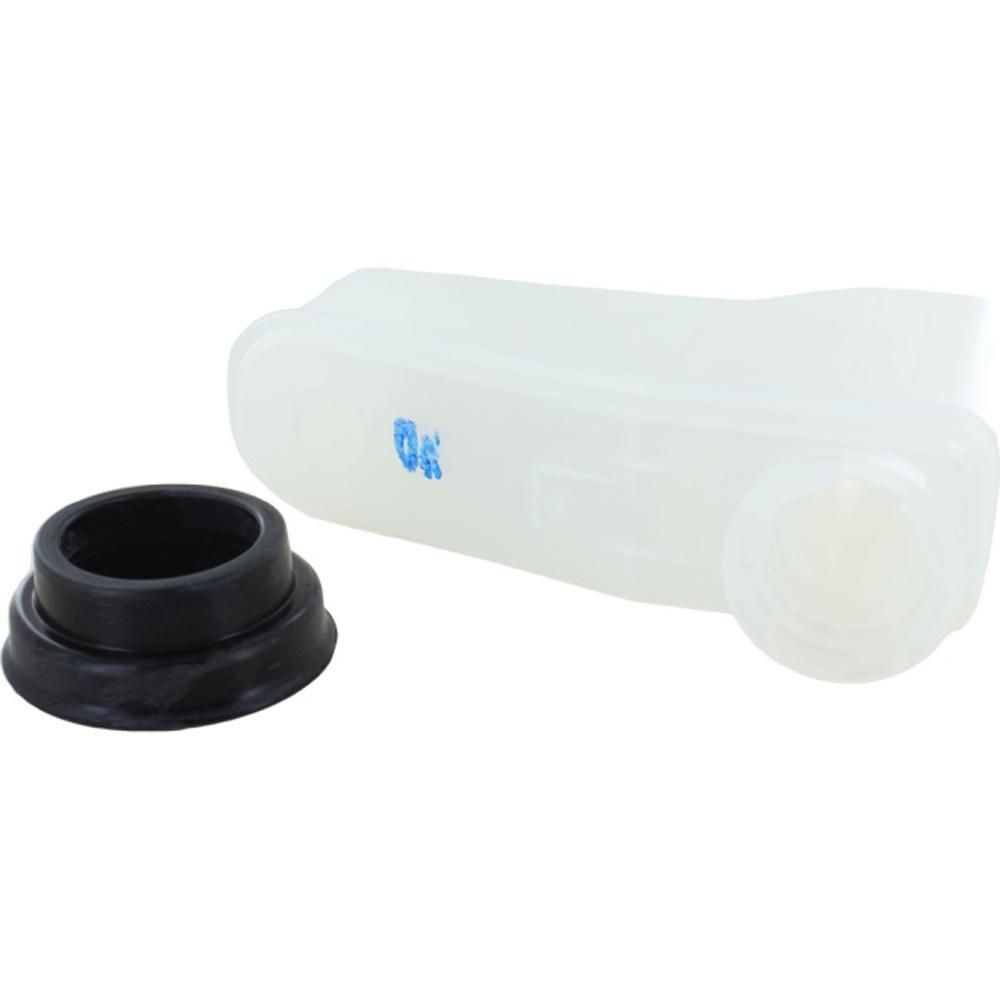

Worcester Bosch Condensate Siphon LCS 87186824780
Condensate siphon assembly for Worcester Bosch Greenstar boilers, part 87186824780 (alt 1030873), GC number J04-372.
At a glance
- Part type: Condensate assembly (siphon)
- Also known as 1030873
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£13.19
£10.99 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87186824780 is a condensate siphon assembly, listed by the manufacturer as an LCS siphon. It sits in the condensate path of the boiler, collecting the acidic water produced by the condensing process and holding a water seal that stops flue gases escaping into the condensate drain. It is a serviceable component within the Worcester Greenstar range and is replaced when the trap body, seal or internal waterways degrade.
Signs this part needs replacing
- Condensate pooling inside the boiler casing, on the floor beneath the appliance or around the trap housing
- The boiler locking out or displaying a condensate-related fault code
- Gurgling, bubbling or draining noises from the trap while the boiler is running
- Visible cracks, splits or a hardened, perished seal on the siphon body
- Condensate backing up in the trap or the water seal running dry, allowing flue gases into the drain
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering, as the same boiler family can use more than one trap variant.
- Confirm the part number 87186824780 or the alternative number 1030873 matches the component being removed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Condensate Traps & Siphons |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87186824780 |
|---|---|
| GC number | J04-372 |
| Barcode / EAN | 4051516200671 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1030873 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 25SI COMPACT LPG | 47-406-51 | 47-406-51 | — | — |
| WORCESTER GREENSTAR 25SI COMPACT NG | 47-406-50 | 47-406-50 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT LPG | 47-407-74 | 47-407-74 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT NG | 47-406-73 | 47-406-73 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM LPG | 41-406-14 | 41-406-14 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM NG | 41-406-13 | 41-406-13 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT LPG | 41-406-55 | 41-406-55 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT NG | 41-406-54 | 41-406-54 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT LPG | 41-406-59 | 41-406-59 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT NG | 41-406-58 | 41-406-58 | — | — |
Showing 10 of 71 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 25SI COMPACT LPG (GC 47-406-51), GREENSTAR 25SI COMPACT NG (GC 47-406-50), GREENSTAR 30 SI COMPACT LPG (GC 47-406-53), GREENSTAR 30 SI COMPACT NG (GC 47-406-52)
manualmanualWORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 27Ri ErP COMPACT LPG (GC 41-406-55), GREENSTAR 27Ri ErP COMPACT NG (GC 41-406-54), GREENSTAR 30Ri ErP COMPACT LPG (GC 41-406-57), GREENSTAR 30Ri ErP COMPACT NG (GC 41-406-56)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
manualmanualWORCESTER appliance manual — GREENSTAR RI 27KW COMPACT LPG (GC 41-406-18), GREENSTAR RI 27KW COMPACT NG (GC 41-406-17), GREENSTAR Ri 30KW COMPACT LPG (GC 41-406-20), GREENSTAR Ri 30KW COMPACT NG (GC 41-406-19)
