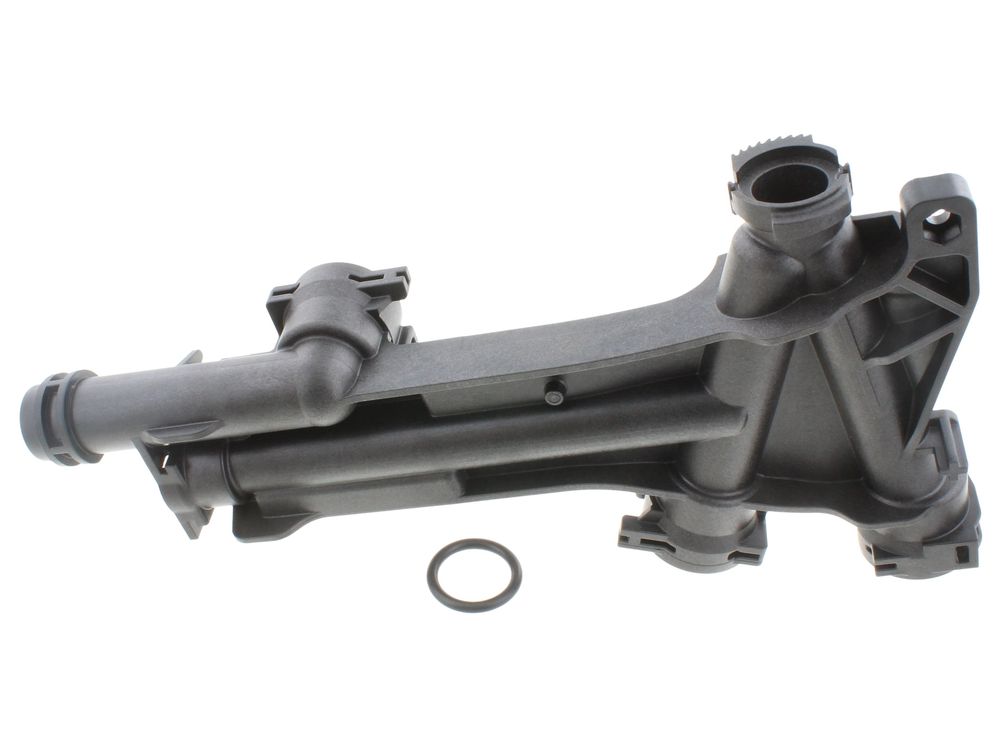

Worcester Bosch Manifold 87186808240
Worcester Bosch hydraulic manifold 87186808240 for Greenstar Compact system boilers; alternative number 1031225.
At a glance
- Part type: Diverter valves and hydraulics
- Appliance family: Greenstar Compact system
- Also known as 1031225
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£33.85
£28.21 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87186808240 is a hydraulic manifold forming part of the diverter valve and hydraulics group on Greenstar Compact system boilers. It sits within the boiler's water circuit, where the hydraulic components manage the movement of water through the appliance. The part is supplied by Worcester Bosch and is listed under the diverter valves and hydraulics category.
Signs this part needs replacing
- Heating or hot water performance drops away, or the boiler fails to switch between heating and hot water demand.
- The diverter valve assembly sticks, jams or fails to move through its full travel.
- Water is visible around the hydraulic block or manifold area, indicating a seal or body failure.
- The boiler locks out or reports a fault relating to the diverter valve or hydraulic circuit.
- Unusual noise from the hydraulic section during a demand for heat or hot water.
Before you order
- Check the GC number on the appliance data badge and confirm the model against the compatibility list before ordering.
- Compare the part number 87186808240 with the markings on the component being replaced.
- The alternative number 1031225 may be stamped or printed on the original part.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter valves and hydraulics |
|---|---|
| Appliance family | Greenstar Compact system |
Compliance
| Manufacturer part number (MPN) | 87186808240 |
|---|---|
| GC number | J10-698 |
| Barcode / EAN | 4047416352084 |
| Commodity code | 8403 90 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031225 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 27I COMPACT SYSTEM LPG | 41-406-14 | 41-406-14 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM NG | 41-406-13 | 41-406-13 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT LPG | 41-406-59 | 41-406-59 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT NG | 41-406-58 | 41-406-58 | — | — |
| WORCESTER GREENSTAR 30I COMPACT SYSTEM LPG | 41-406-16 | 41-406-16 | — | — |
| WORCESTER GREENSTAR 30I COMPACT SYSTEM NG | 41-406-15 | 41-406-15 | — | — |
| WORCESTER GREENSTAR 30LXI | — | — | — | |
| WORCESTER GREENSTAR 30i ErP SYSTEM COMPACT LPG | 41-406-61 | 41-406-61 | — | — |
| WORCESTER GREENSTAR 30i ErP SYSTEM COMPACT NG | 41-406-60 | 41-406-60 | — | — |
| WORCESTER GREENSTAR 37i ErP SYSTEM COMPACT | — | — | — |
Showing 10 of 38 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualNo technical questions yet for this part.
