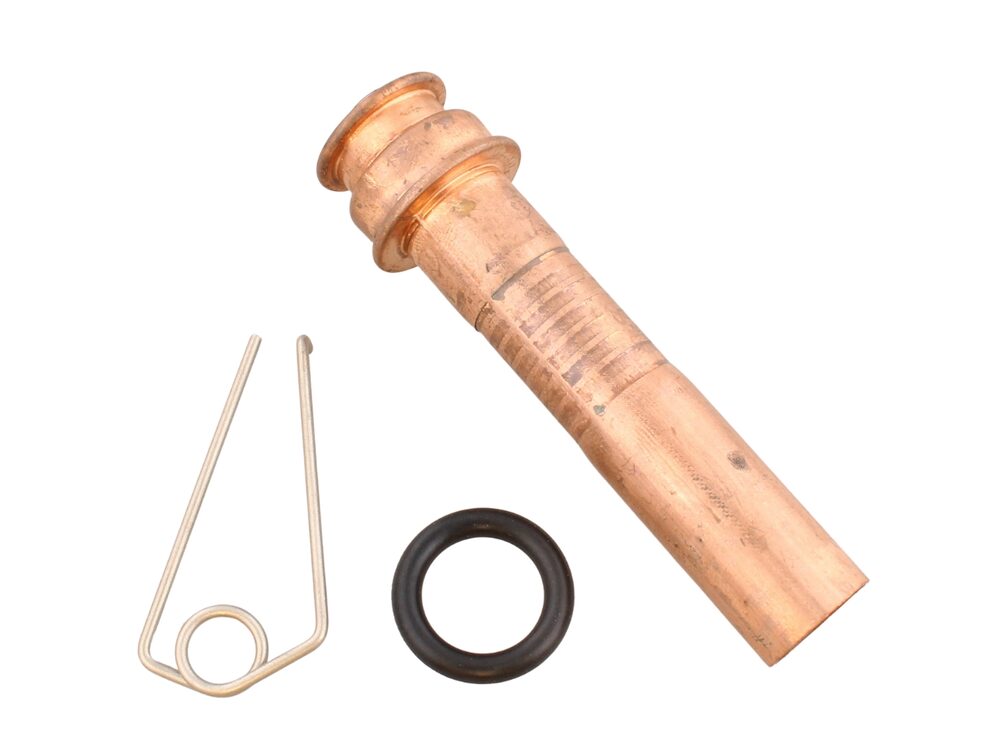

Worcester Bosch Pipe Filling Loop 87186804630
Worcester Bosch filling loop pipe for Greenstar Highflow 440CDI and 550CDI combi boilers.
At a glance
- Also known as 1022580
£10.33
£8.61 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The PIPE - FILLING LOOP is a Worcester Bosch filling loop assembly (part number 87186804630) designed for the Greenstar Highflow 440CDI and 550CDI boiler ranges. It connects the mains water supply to the heating circuit so the sealed system can be topped up and brought to the correct pressure. The loop is a serviceable component and is replaced when the connection no longer holds pressure or the valves fail to seal.
Signs this part needs replacing
- System pressure will not hold after topping up, even with the filling loop valves closed
- Water weeping or dripping from the loop body or its connections
- Filling valve handle will not turn, is stiff, or fails to shut off fully
- Boiler pressure rises on its own with the filling loop left connected
- Visible scale, corrosion or damage on the loop pipework
Before you order
- Confirm the boiler model and variant matches one of the listed Greenstar Highflow appliances
- Check the existing filling loop for joint type and orientation before removal
- Verify the fault lies with the loop rather than the pressure gauge or expansion vessel
- Isolate the mains supply and depressurise the system before fitting
Compliance
| GC number | H71-408 |
|---|---|
| Barcode / EAN | 4047416795720 |
| Alternative numbers | 1022580 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR HIGHFLOW 440CDI LPG | 47-406-26 | 47-406-26 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDI NG | 47-406-24 | 47-406-24 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) | 47-406-86 | 47-406-86 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) | 47-406-85 | 47-406-85 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDI LPG | 47-406-25 | 47-406-25 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDI NG | 47-406-27 | 47-406-27 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDi ErP LPG (7738100592) | 47-406-88 | 47-406-88 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDi ErP NG (7738100591) | 47-406-87 | 47-406-87 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDI LPG (GC 47-406-26), GREENSTAR HIGHFLOW 440CDI NG (GC 47-406-24), GREENSTAR HIGHFLOW 550CDI LPG (GC 47-406-25), GREENSTAR HIGHFLOW 550CDI NG (GC 47-406-27)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) (GC 47-406-86), GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) (GC 47-406-85), GREENSTAR HIGHFLOW 550CDi ErP LPG (7738100592) (GC 47-406-88), GREENSTAR HIGHFLOW 550CDi ErP NG (7738100591) (GC 47-406-87)
manualNo technical questions yet for this part.
