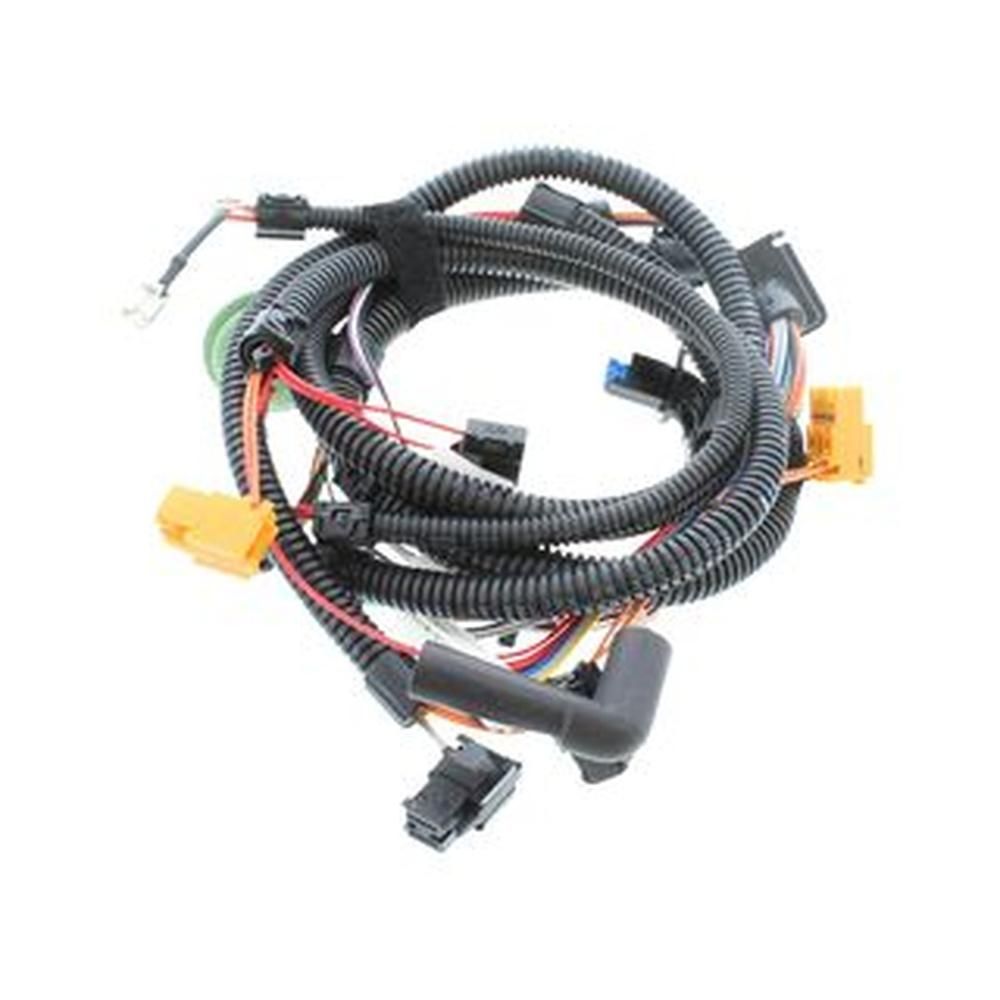

Worcester Bosch Cable Harness 24V 87186672810
24V cable harness for Worcester Bosch Greenstar CDi ErP Classic boilers, part 87186672810, alternative number 1031045.
At a glance
- Part type: Wiring
- Also known as 1031045
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£88.72
£73.93 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87186672810 is a 24V cable harness used in Greenstar CDi ErP Classic appliances. It is a low-voltage wiring loom that carries control and sensor signals between components inside the boiler, so the control board can read inputs and command the parts it regulates. The harness is supplied as a complete plug-and-play assembly with the connectors already fitted.
Signs this part needs replacing
- The boiler fails to fire or locks out intermittently with no mechanical fault found elsewhere.
- Fault codes relating to sensors or control communication appear on the display.
- The loom shows cracked, brittle or scorched insulation, or heat damage near a connector.
- Terminals are loose, corroded or pushed back inside the plug housings.
- Faults appear and disappear when the harness is moved or the casing is tapped.
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- The alternative number 1031045 may be marked on the original harness.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87186672810 |
|---|---|
| GC number | J22-818 |
| Barcode / EAN | 4054925553147 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031045 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 29CDI ErP CLASSIC LPG | 47-406-66 | 47-406-66 | — | — |
| WORCESTER GREENSTAR 29CDI ErP CLASSIC NG | 47-406-65 | 47-406-65 | — | — |
| WORCESTER GREENSTAR 30CDI ErP CLASSIC LPG | 41-406-38 | 41-406-38 | — | — |
| WORCESTER GREENSTAR 30CDI ErP CLASSIC NG | 41-406-37 | 41-406-37 | — | — |
| WORCESTER GREENSTAR 34CDI ErP CLASSIC LPG | 47-406-68 | 47-406-68 | — | — |
| WORCESTER GREENSTAR 34CDI ErP CLASSIC NG | 47-406-67 | 47-406-67 | — | — |
| WORCESTER GREENSTAR 35CDI ErP CLASSIC SYSTEM LPG | 41-406-40 | 41-406-40 | — | — |
| WORCESTER GREENSTAR 35CDI ErP CLASSIC SYSTEM NG | 41-406-39 | 41-406-39 | — | — |
| WORCESTER GREENSTAR 38CDI ErP CLASSIC LPG | 47-406-70 | 47-406-70 | — | — |
| WORCESTER GREENSTAR 38CDI ErP CLASSIC NG | 47-406-69 | 47-406-69 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 29CDI ErP CLASSIC LPG (GC 47-406-66), GREENSTAR 29CDI ErP CLASSIC NG (GC 47-406-65), GREENSTAR 34CDI ErP CLASSIC LPG (GC 47-406-68), GREENSTAR 34CDI ErP CLASSIC NG (GC 47-406-67), GREENSTAR 38CDI ErP CLASSIC LPG (GC 47-406-70), GREENSTAR 38CDI ErP CLASSIC NG (GC 47-406-69), GREENSTAR 42CDI ErP CLASSIC LPG (GC 47-406-72), GREENSTAR 42CDI ErP CLASSIC NG (GC 47-406-71)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC LPG (GC 41-406-38), GREENSTAR 30CDI ErP CLASSIC NG (GC 41-406-37)
manualmanualWORCESTER appliance manual — GREENSTAR 35CDI ErP CLASSIC SYSTEM LPG (GC 41-406-40), GREENSTAR 35CDI ErP CLASSIC SYSTEM NG (GC 41-406-39)
manualNo technical questions yet for this part.
