Worcester Bosch
Worcester Bosch Gas Valve Nut 871860079A0
Gas valve nut for Worcester Bosch Greenstar 1000 and 25Si Compact boilers, part 871860079A0, supplied singly.
At a glance
- Part type: Bolts, nuts and screws
- Also known as 1030763
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£3.70
£3.08 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

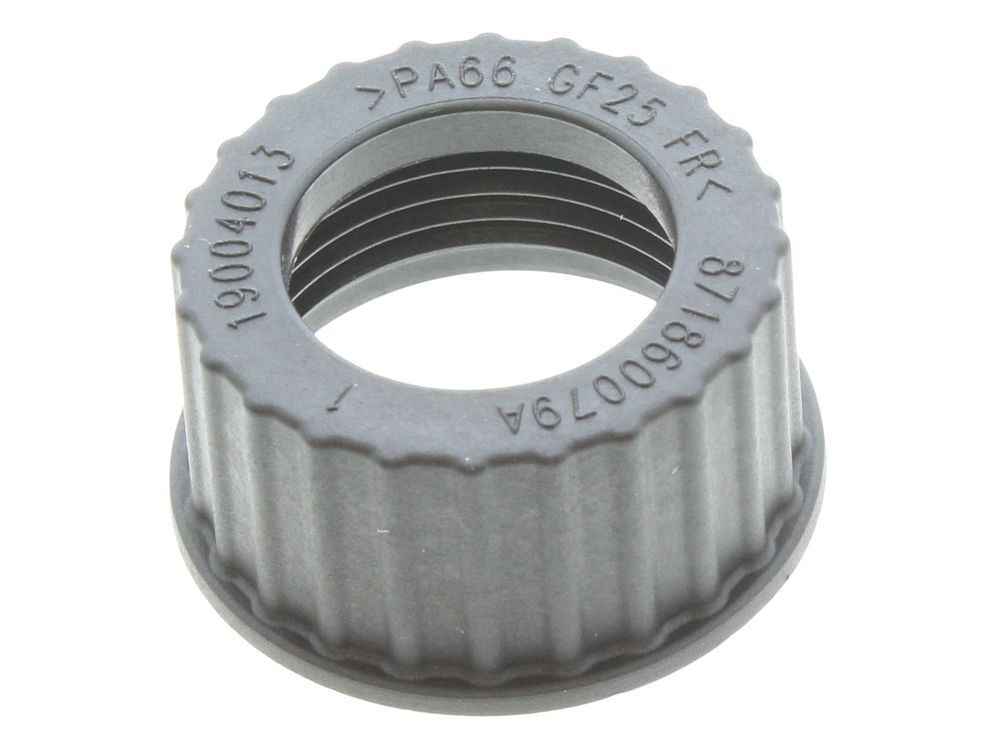

The Worcester Bosch 871860079A0 is a gas valve nut used on Worcester Bosch gas boilers, including the Greenstar 1000 Series and Greenstar 25Si Compact ranges. It forms part of the gas valve assembly, securing the gas valve connection so the joint stays gas-tight under operating pressure. It is a serviceable fixing rather than a control component, and is replaced when the original nut is damaged, corroded or disturbed during gas valve work.
Signs this part needs replacing
- Leak detection fluid bubbles at the gas valve joint during a tightness test
- A smell of gas around the gas valve connection
- Corrosion, pitting or discolouration on the nut body or threads
- Rounded or chewed hex flats from a previous removal
- The nut will not torque down cleanly and the joint cannot be made sound
Before you order
- Check the appliance GC number and serial number against the compatibility list before ordering.
- Confirm the part number 871860079A0 or the alternative number 1030763 matches the item being replaced.
- Inspect the gas valve joint for a sealing washer or gasket that may need renewing at the same time.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | NUT (GAS VALVE) |
|---|
Compliance
| Manufacturer part number (MPN) | 871860079A0 |
|---|---|
| GC number | J04-389 |
| Barcode / EAN | 4051516197063 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1030763 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 1000 SERIES GR1000W 24 C NG | 47-800-38 | 47-800-38 | — | — |
| WORCESTER GREENSTAR 1000 SERIES GR1000W 30 C NG | 47-800-39 | 47-800-39 | — | — |
| WORCESTER GREENSTAR 25SI COMPACT LPG | 47-406-51 | 47-406-51 | — | — |
| WORCESTER GREENSTAR 25SI COMPACT NG | 47-406-50 | 47-406-50 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT LPG | 47-407-74 | 47-407-74 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT NG | 47-406-73 | 47-406-73 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM LPG | 41-406-14 | 41-406-14 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM NG | 41-406-13 | 41-406-13 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT LPG | 41-406-55 | 41-406-55 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT NG | 41-406-54 | 41-406-54 | — | — |
Showing 10 of 75 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 25SI COMPACT LPG (GC 47-406-51), GREENSTAR 25SI COMPACT NG (GC 47-406-50), GREENSTAR 30 SI COMPACT LPG (GC 47-406-53), GREENSTAR 30 SI COMPACT NG (GC 47-406-52)
manualmanualWORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 27Ri ErP COMPACT LPG (GC 41-406-55), GREENSTAR 27Ri ErP COMPACT NG (GC 41-406-54), GREENSTAR 30Ri ErP COMPACT LPG (GC 41-406-57), GREENSTAR 30Ri ErP COMPACT NG (GC 41-406-56)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
manualmanualWORCESTER appliance manual — GREENSTAR RI 27KW COMPACT LPG (GC 41-406-18), GREENSTAR RI 27KW COMPACT NG (GC 41-406-17), GREENSTAR Ri 30KW COMPACT LPG (GC 41-406-20), GREENSTAR Ri 30KW COMPACT NG (GC 41-406-19)
manualNo technical questions yet for this part.
