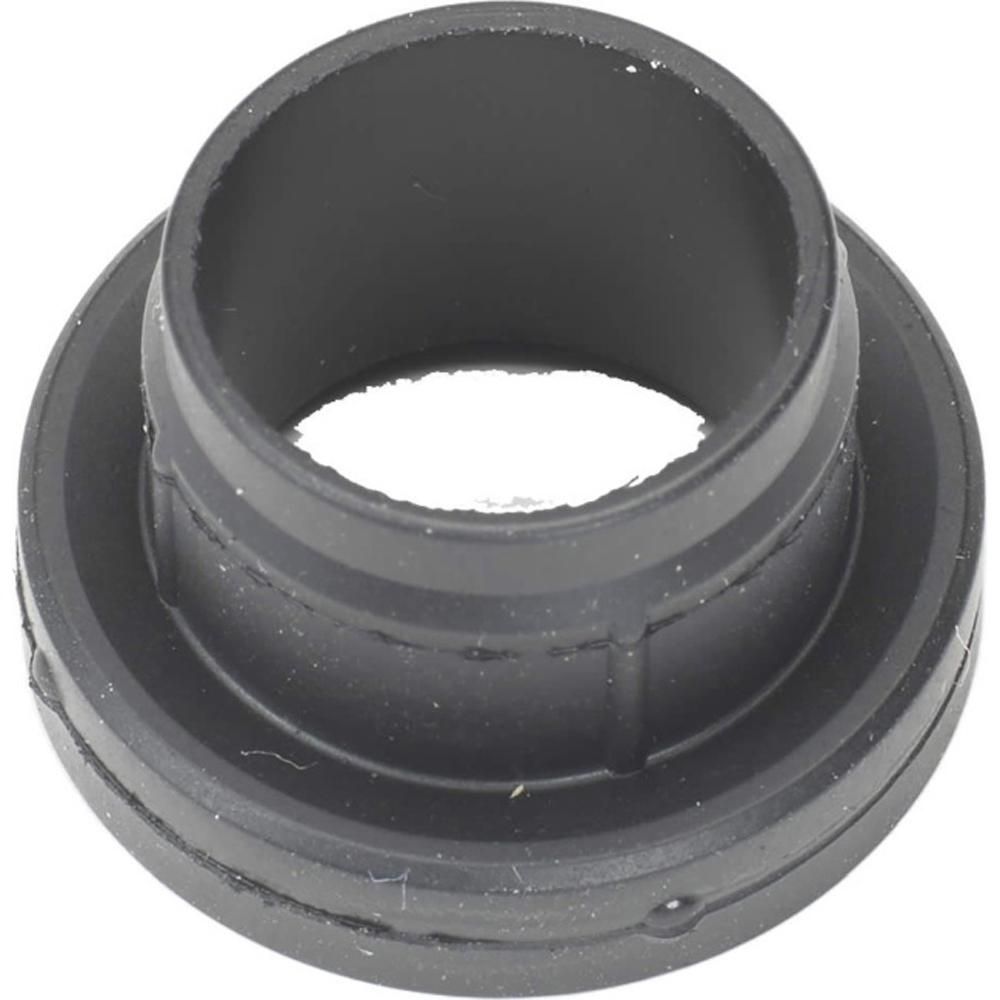

Worcester Bosch Gas Valve Gasket 871860034A0
Worcester Bosch gas valve gasket 871860034A0, a sealing component for Greenstar i ErP System boilers and other Worcester appliances.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1030909
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£3.47
£2.89 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 871860034A0 is a gas valve gasket used across a large number of Worcester Bosch appliances. It sits at the gas valve joint, sealing the mating faces so that gas flow through the valve assembly stays contained and the appliance continues to run dependably. It is a service item rather than a control component, so it is normally replaced when the valve is removed or when the joint shows signs of weeping.
Signs this part needs replacing
- A gas smell or detectable leak at the gas valve joint during a tightness test
- Visible perishing, cracking, hardening or flattening of the gasket material
- Soot staining, discolouration or moisture tracking around the valve mating faces
- The gasket lifting away or breaking up when the gas valve is disturbed for service
- A joint that will not hold after re-torquing, indicating the seal has taken a permanent set
Before you order
- Check the GC number and model shown on the appliance data badge against the compatibility list below before ordering.
- Confirm the part number on the existing gasket or gas valve matches 871860034A0.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Consider whether any other seals or washers on the same valve assembly need replacing at the same time.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 871860034A0 |
|---|---|
| GC number | J04-395 |
| Barcode / EAN | 4051516200572 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1030909 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM LPG | 41-406-30 | 41-406-30 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM NG | 41-406-29 | 41-406-29 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM LPG | 41-406-32 | 41-406-32 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM NG | 41-406-31 | 41-406-31 | — | — |
Showing 10 of 315 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMPACT LPG (GC 47-406-51), GREENSTAR 25SI COMPACT NG (GC 47-406-50), GREENSTAR 30 SI COMPACT LPG (GC 47-406-53), GREENSTAR 30 SI COMPACT NG (GC 47-406-52)
manualmanualWORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualmanualWORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 27Ri ErP COMPACT LPG (GC 41-406-55), GREENSTAR 27Ri ErP COMPACT NG (GC 41-406-54), GREENSTAR 30Ri ErP COMPACT LPG (GC 41-406-57), GREENSTAR 30Ri ErP COMPACT NG (GC 41-406-56)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG (GC 47-800-18), GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG (GC 47-800-17), GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG (GC 47-800-16), GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG (GC 47-800-15), GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG (GC 47-800-14), GREENSTAR LIFE GR8300iW 30 C LPG, GREENSTAR LIFE GR8300iW 30 C NG (GC 47-800-18), GREENSTAR LIFE GR8300iW 35 C LPG, GREENSTAR LIFE GR8300iW 35 C NG (GC 47-800-17), GREENSTAR LIFE GR8300iW 40 C LPG, GREENSTAR LIFE GR8300iW 40 C NG (GC 47-800-16), GREENSTAR LIFE GR8300iW 45 C LPG, GREENSTAR LIFE GR8300iW 45 C NG (GC 47-800-15), GREENSTAR LIFE GR8300iW 50 C LPG, GREENSTAR LIFE GR8300iW 50 C NG (GC 47-800-14)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R NG (GC 41-406-98), GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R NG (GC 41-406-97), GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R NG (GC 41-406-96), GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R NG (GC 41-406-95), GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R NG (GC 41-406-94), GREENSTAR LIFE GR8300iW 30 R LPG, GREENSTAR LIFE GR8300iW 30 R NG (GC 41-406-98), GREENSTAR LIFE GR8300iW 35 R LPG, GREENSTAR LIFE GR8300iW 35 R NG (GC 41-406-97), GREENSTAR LIFE GR8300iW 40 R LPG, GREENSTAR LIFE GR8300iW 40 R NG (GC 41-406-96), GREENSTAR LIFE GR8300iW 45 R LPG, GREENSTAR LIFE GR8300iW 45 R NG (GC 41-406-95), GREENSTAR LIFE GR8300iW 50 R LPG, GREENSTAR LIFE GR8300iW 50 R NG (GC 41-406-94)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S NG (GC 41-406-91), GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S NG (GC 41-406-90), GREENSTAR LIFE GR8300iW 30 S LPG, GREENSTAR LIFE GR8300iW 30 S NG (GC 41-406-91), GREENSTAR LIFE GR8300iW 35 S LPG, GREENSTAR LIFE GR8300iW 35 S NG (GC 41-406-90)
manualmanualWORCESTER appliance manual — GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C NG (GC 47-800-03), GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C NG (GC 47-800-02), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C NG (GC 47-800-01), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C NG (GC 47-406-99), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C NG (GC 47-406-98), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB NG (GC 47-406-93), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S NG (GC 41-406-87), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S NG (GC 41-406-86), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 30 C LPG, GREENSTAR STYLE GR8700iW 30 C NG (GC 47-800-03), GREENSTAR STYLE GR8700iW 30 CB LPG, GREENSTAR STYLE GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR STYLE GR8700iW 30 S LPG, GREENSTAR STYLE GR8700iW 30 S NG (GC 41-406-87), GREENSTAR STYLE GR8700iW 30 SB LPG, GREENSTAR STYLE GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR STYLE GR8700iW 35 C LPG, GREENSTAR STYLE GR8700iW 35 C NG (GC 47-800-02), GREENSTAR STYLE GR8700iW 35 CB LPG, GREENSTAR STYLE GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR STYLE GR8700iW 35 S LPG, GREENSTAR STYLE GR8700iW 35 S NG (GC 41-406-86), GREENSTAR STYLE GR8700iW 35 SB LPG, GREENSTAR STYLE GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 40 C LPG, GREENSTAR STYLE GR8700iW 40 C NG (GC 47-800-01), GREENSTAR STYLE GR8700iW 40 CB LPG, GREENSTAR STYLE GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR STYLE GR8700iW 45 C LPG, GREENSTAR STYLE GR8700iW 45 C NG (GC 47-406-99), GREENSTAR STYLE GR8700iW 45 CB LPG, GREENSTAR STYLE GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR STYLE GR8700iW 50 C LPG, GREENSTAR STYLE GR8700iW 50 C NG (GC 47-406-98), GREENSTAR STYLE GR8700iW 50 CB LPG, GREENSTAR STYLE GR8700iW 50 CB NG (GC 47-406-93)
manualmanualWORCESTER appliance manual — GREENSTAR RI 27KW COMPACT LPG (GC 41-406-18), GREENSTAR RI 27KW COMPACT NG (GC 41-406-17), GREENSTAR Ri 30KW COMPACT LPG (GC 41-406-20), GREENSTAR Ri 30KW COMPACT NG (GC 41-406-19)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
