Worcester Bosch Burner Gasket 871860024A0

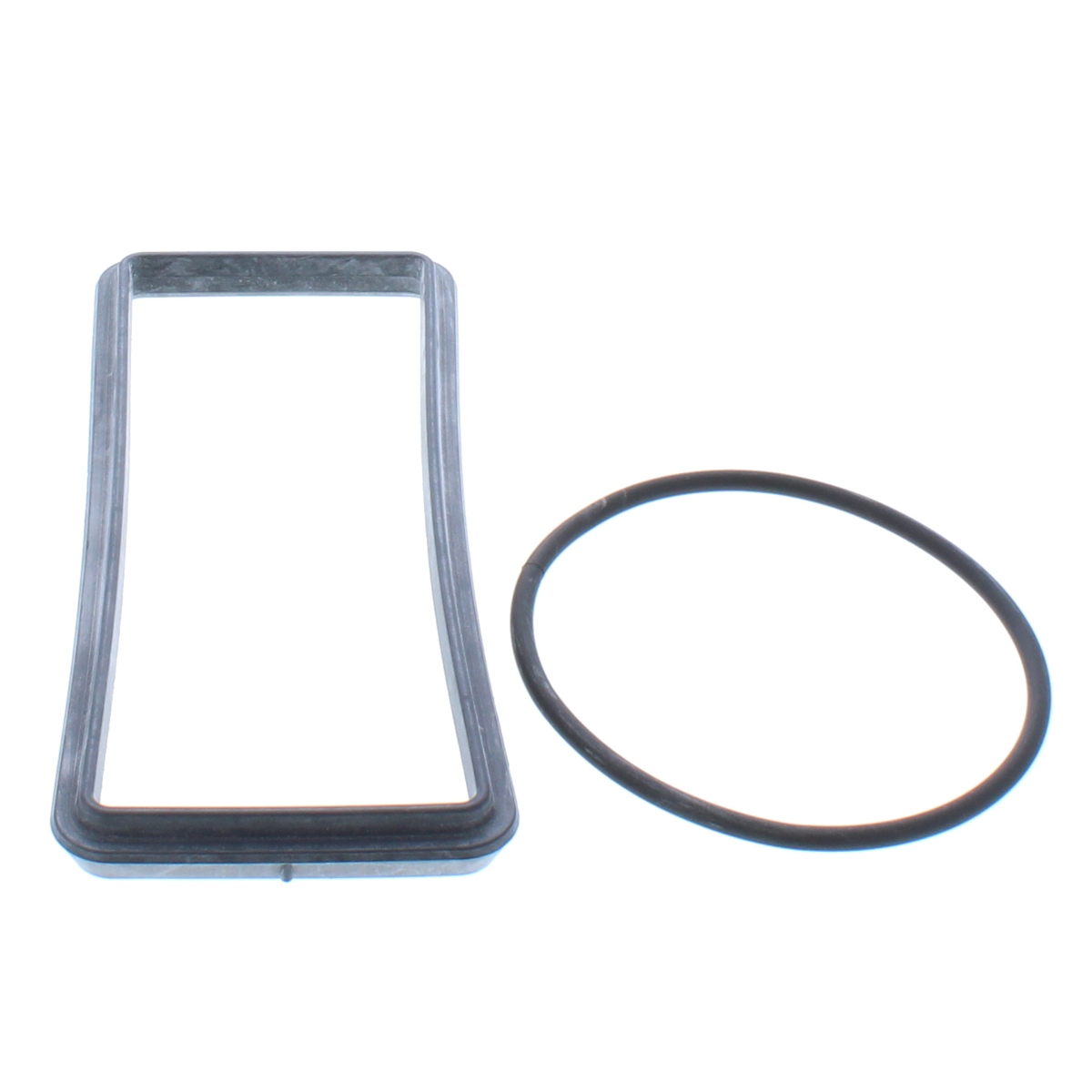

Worcester Bosch 871860024A0 burner gasket for Greenstar Compact gas boilers, sealing the burner mounting face. GC number J04-350.
At a glance
- Part type: Burner gasket
- Also known as 1030758
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£11.04
£9.20 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 871860024A0 is a burner gasket for Greenstar Compact gas boilers. It sits at the burner mounting face and seals the joint between the burner and the combustion chamber, keeping the products of combustion on the flue side of the joint and preventing unwanted air being drawn in. The gasket is a single-use sealing component and is normally renewed whenever the burner is removed for inspection or service.
Signs this part needs replacing
- The gasket is cracked, flattened, hardened or visibly perished when the burner is lifted
- Soot or dark staining around the burner mounting face or on the surrounding casing
- Flue gas analyser readings drifting outside the expected range for the appliance
- A smell of combustion products detectable around the boiler casing
- The gasket breaks up or sticks to the mating face during burner removal, leaving an incomplete seal
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the exact model and serial number, as this gasket is shared across a number of Greenstar Compact variants.
- The alternative number 1030758 may appear on older documentation for the same gasket.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 871860024A0 |
|---|---|
| GC number | J04-350 |
| Barcode / EAN | 4051516200541 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1030758 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 25SI COMPACT LPG | 47-406-51 | 47-406-51 | — | — |
| WORCESTER GREENSTAR 25SI COMPACT NG | 47-406-50 | 47-406-50 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT LPG | 47-407-74 | 47-407-74 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT NG | 47-406-73 | 47-406-73 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM LPG | 41-406-14 | 41-406-14 | — | — |
| WORCESTER GREENSTAR 27I COMPACT SYSTEM NG | 41-406-13 | 41-406-13 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT LPG | 41-406-55 | 41-406-55 | — | — |
| WORCESTER GREENSTAR 27Ri ErP COMPACT NG | 41-406-54 | 41-406-54 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT LPG | 41-406-59 | 41-406-59 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT NG | 41-406-58 | 41-406-58 | — | — |
Showing 10 of 71 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 25SI COMPACT LPG (GC 47-406-51), GREENSTAR 25SI COMPACT NG (GC 47-406-50), GREENSTAR 30 SI COMPACT LPG (GC 47-406-53), GREENSTAR 30 SI COMPACT NG (GC 47-406-52)
manualmanualWORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 27I COMPACT SYSTEM LPG (GC 41-406-14), GREENSTAR 27I COMPACT SYSTEM NG (GC 41-406-13), GREENSTAR 30I COMPACT SYSTEM LPG (GC 41-406-16), GREENSTAR 30I COMPACT SYSTEM NG (GC 41-406-15)
manualmanualWORCESTER appliance manual — GREENSTAR 27Ri ErP COMPACT LPG (GC 41-406-55), GREENSTAR 27Ri ErP COMPACT NG (GC 41-406-54), GREENSTAR 30Ri ErP COMPACT LPG (GC 41-406-57), GREENSTAR 30Ri ErP COMPACT NG (GC 41-406-56)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
manualmanualWORCESTER appliance manual — GREENSTAR RI 27KW COMPACT LPG (GC 41-406-18), GREENSTAR RI 27KW COMPACT NG (GC 41-406-17), GREENSTAR Ri 30KW COMPACT LPG (GC 41-406-20), GREENSTAR Ri 30KW COMPACT NG (GC 41-406-19)
manualNo technical questions yet for this part.
