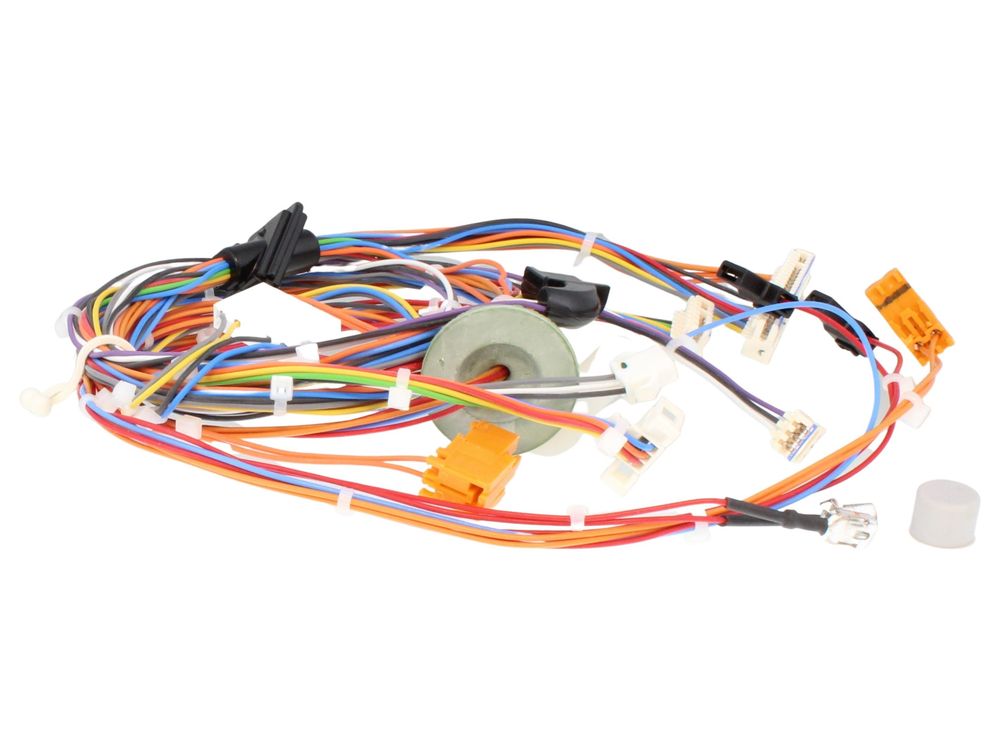

Worcester Bosch Cable Tree 87182213460
Cable tree wiring harness, part 87182213460, for Worcester Bosch Greenstar EMS combi and system boilers.
At a glance
- Also known as 1022377
Showing prices
£77.58
£64.65 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87182213460 is a cable tree (wiring harness) used across Worcester Bosch Greenstar EMS combi, Classic combi and system boilers. It carries the internal wiring between the boiler's electrical components and control connections. It is listed in the manufacturer's spare parts range under wiring.
Signs this part needs replacing
- Frayed, cracked or heat-damaged insulation along the harness
- Loose, corroded or discoloured plug connectors
- Intermittent electrical faults or repeated lockouts traced to the wiring
- Error codes relating to sensor or communication faults
- Visible scorching or a burning smell around the cable tree
Before you order
- Confirm your boiler model appears in the fit list above
- Check the connector layout and routing of the existing cable tree against the part
- Note whether your appliance is natural gas or LPG where the model listing differs
Compliance
| GC number | H56-477 |
|---|---|
| Barcode / EAN | 4010009634225 |
| Alternative numbers | 1022377 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS 430/I | 41-311-80 | 41-311-80 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 430/I SYSTEM LPG | 41-311-81 | 41-311-81 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI LPG | 47-406-03 | 47-406-03 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI NG | 47-406-02 | 47-406-02 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI LPG | 47-406-05 | 47-406-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI NG | 47-406-04 | 47-406-04 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI LPG | 47-406-07 | 47-406-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI NG | 47-406-06 | 47-406-06 | — | — |
| WORCESTER GREENSTAR 25CDI EMS COMBI NG | 47-311-92 | 47-311-92 | — | — |
| WORCESTER GREENSTAR 25CDI ENS COMBI LPG | 47-311-96 | 47-311-96 | — | — |
Showing 10 of 30 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — BRITISH GAS 430/I (GC 41-311-80), BRITISH GAS GREENSTAR 430/I SYSTEM LPG (GC 41-311-81)
manualmanualWORCESTER appliance manual — BRITISH GAS GREENSTAR 532/I COMBI LPG (GC 47-406-03), BRITISH GAS GREENSTAR 532/I COMBI NG (GC 47-406-02), BRITISH GAS GREENSTAR 537/I COMBI LPG (GC 47-406-05), BRITISH GAS GREENSTAR 537/I COMBI NG (GC 47-406-04), BRITISH GAS GREENSTAR 542/I COMBI LPG (GC 47-406-07), BRITISH GAS GREENSTAR 542/I COMBI NG (GC 47-406-06)
manualmanualWORCESTER appliance manual — GREENSTAR 25CDI EMS COMBI NG (GC 47-311-92), GREENSTAR 25CDI ENS COMBI LPG (GC 47-311-96), GREENSTAR 25CDI PRE EMS COMBI NG (GC 47-311-92), GREENSTAR 30CDI NEW EMS LPG (GC 47-311-97), GREENSTAR 30CDI NEW EMS NG (GC 47-311-93), GREENSTAR 30CDI OLD EMS LPG (GC 47-311-97), GREENSTAR 30CDI OLD EMS NG (GC 47-311-93), GREENSTAR 30CDI PRE EMS COMBI NG (GC 47-311-93), GREENSTAR 35CDI EMS LPG COMBI (GC 47-311-98), GREENSTAR 35CDI EMS NG COMBI (GC 47-311-94), GREENSTAR 35CDI PRE EMS NG COMBI (GC 47-311-94), GREENSTAR 40CDI EMS COMBI LPG (GC 47-406-01), GREENSTAR 40CDI EMS COMBI NG (GC 47-311-95), GREENSTAR 40CDI PRE EMS NG (GC 47-311-95)
manualmanualWORCESTER appliance manual — GREENSTAR 27CDI EMS COMBI LPG (GC 47-406-13), GREENSTAR 27CDI EMS COMBI NG (GC 47-406-12), GREENSTAR 37CDI EMS COMBI LPG (GC 47-406-09), GREENSTAR 37CDI EMS COMBI NG (GC 47-406-08), GREENSTAR 42CDI CLASSIC COMBI LPG (GC 47-406-11), GREENSTAR 42CDI CLASSIC COMBI NG (GC 47-406-10)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI SYSTEM LPG (GC 41-311-97), GREENSTAR 30CDI SYSTEM NG (GC 41-311-93)
manualNo technical questions yet for this part.
