Worcester Bosch
Worcester Bosch Fan Assembly Greenstar 87172044100
At a glance
- Part type: Fan assembly
- Also known as 1022344, N8514-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£299.00
£249.17 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

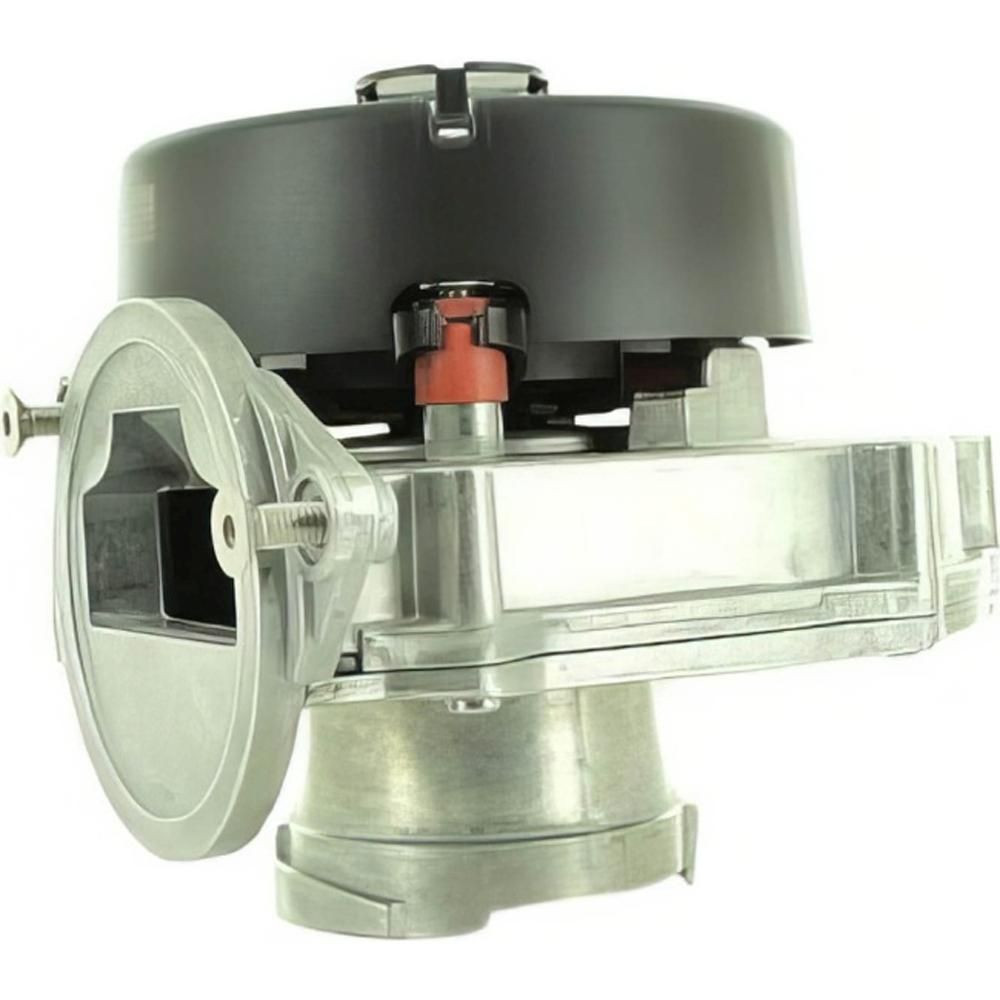

The Worcester Bosch 87172044100 is a complete fan assembly for the Greenstar FSN-GB combi boiler range. It draws combustion air into the burner and pushes flue gases out through the flue system, so the appliance can maintain a stable, correctly balanced burn throughout its operating cycle. The assembly is supplied as a single unit covering the fan housing and impeller arrangement used on these models.
Signs this part needs replacing
- The boiler locks out or fails to fire, with the fan failing to run at start-up
- Grinding, rumbling or scraping noise from the fan area during operation
- Intermittent running or a fan that spins up and then drops out
- Repeated lockout codes linked to air pressure or flue proving
- Visible damage, contamination or stiffness when the fan is turned by hand
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct fan assembly
- Confirm the part number on the existing fan, including any previous number still shown on older stock
- Inspect the fan mounting gasket and sealing washers, and replace them if they are compressed or perished
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87172044100 |
|---|---|
| GC number | H66-918 |
| Barcode / EAN | 4010009567639 |
| Commodity code | 8414 59 40 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87172044100, 8-717-204-410-0, Z/BYK87172044100, 1022344, N8514-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 24 FSN-GB COMBI NG | 47-406-32 | 47-406-32 | — | — |
| WORCESTER GREENSTAR 28 FSN-GB COMBI NG | 47-406-33 | 47-406-33 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
