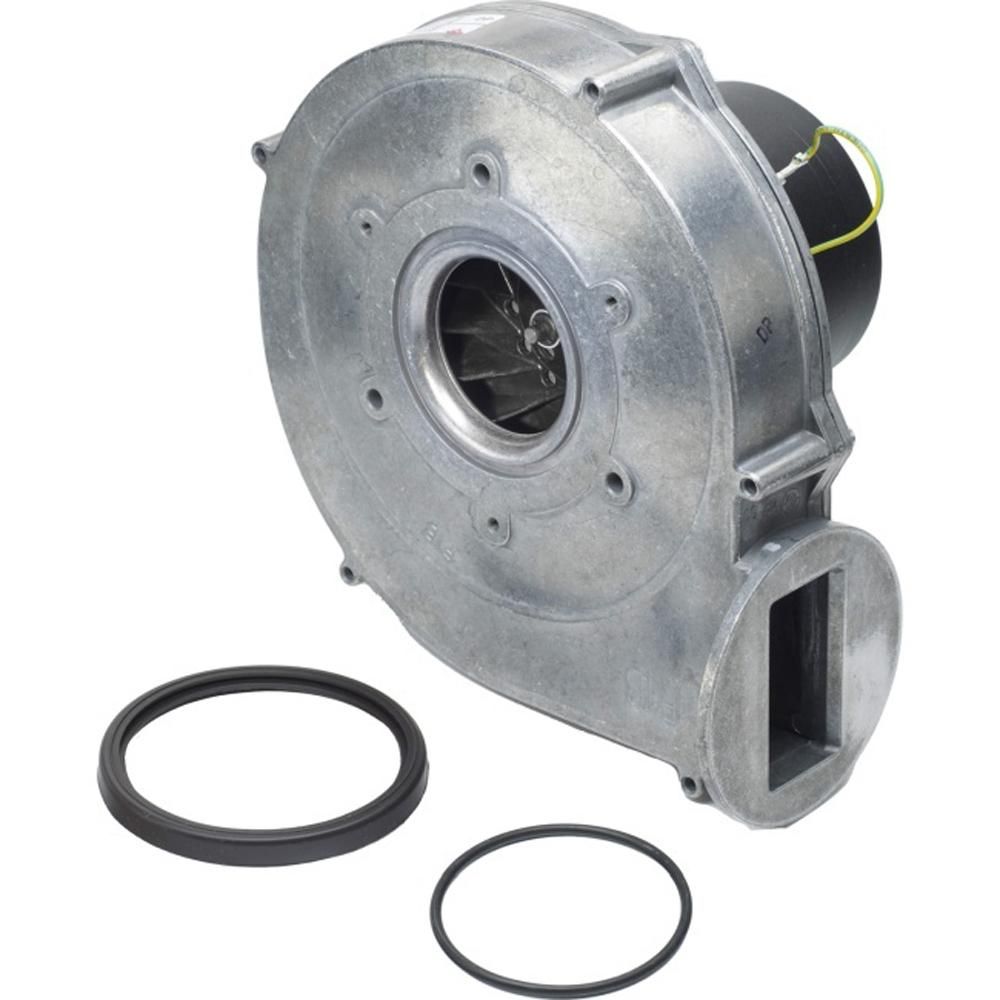

Worcester Bosch Fan Assembly 87172043250
Worcester Bosch centrifugal fan assembly, part 87172043250, for Greenstar and British Gas ICC2 condensing combi and system boilers.
At a glance
- Part type: Fan assembly (centrifugal blower)
- Also known as 1019925, N1762-3
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£357.59
£297.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87172043250 is a centrifugal blower fan assembly used in Worcester Greenstar and British Gas ICC2 condensing appliances. It draws combustion air into the burner and pushes flue gases out through the heat exchanger and flue path, so the boiler can maintain a stable, correctly proportioned flame. As a moving, heat-exposed component it is a serviceable item and is replaced as a complete assembly rather than rebuilt on site.
Signs this part needs replacing
- Boiler locks out or fails to ignite, with a fan or air pressure related fault code logged
- Grinding, scraping or whining noise from the fan housing on start-up or during the run cycle
- Fan runs intermittently, at erratic speed, or not at all when the boiler is called for heat
- Repeated overheat or flame supervision lockouts after the fan has been checked and cleaned
- Visible damage, play or contamination on the impeller or fan motor windings
Before you order
- Check the GC number and appliance serial plate against the compatibility list to confirm the correct fan variant for your model.
- Cross-reference the alternative part numbers below if the existing fan is marked with a different reference.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87172043250 |
|---|---|
| GC number | E74-538 |
| Barcode / EAN | 4010009568681 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1019925, N1762-3 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM | 41-108-09 | 41-108-09 | — | — |
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM | 41-108-10 | 41-108-10 | — | — |
| WORCESTER BRITISH GAS GREENSTAR RD537I | 47-108-11 | 47-108-11 | — | — |
| WORCESTER BRITISH GAS RD542I | 41-108-12 | 41-108-12 | — | — |
| WORCESTER GREENSTAR 35 HE PLUS COMBI | 47-311-76 | 47-311-76 | — | — |
| WORCESTER GREENSTAR HE PLUS-FSN-GB35KW | 47-311-57 | 47-311-57 | — | — |
| WORCESTER GREENSTAR R35HE PLUS COMBI | 47-311-80 | 47-311-80 | — | — |
| WORCESTER GREENSTAR R40HE CONVENTIONAL | 41-311-61 | 41-311-61 | — | — |
| WORCESTER GREENSTAR R40HE PLUS COMBI | 47-311-81 | 47-311-81 | — | — |
| WORCESTER ICS1 RSF 35KW NG | 41-108-45 | 41-108-45 | — | — |
Showing 10 of 19 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM (GC 41-108-09), BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM (GC 41-108-10)
manualmanualWORCESTER appliance manual — GREENSTAR 35 HE PLUS COMBI (GC 47-311-76), GREENSTAR HE PLUS-FSN-GB35KW (GC 47-311-57)
manualmanualWORCESTER appliance manual — GREENSTAR R35HE PLUS COMBI (GC 47-311-80), GREENSTAR R40HE PLUS COMBI (GC 47-311-81)
manualmanualWORCESTER appliance manual — GREENSTAR R40HE CONVENTIONAL (GC 41-311-61)
manualNo technical questions yet for this part.
