Worcester Bosch

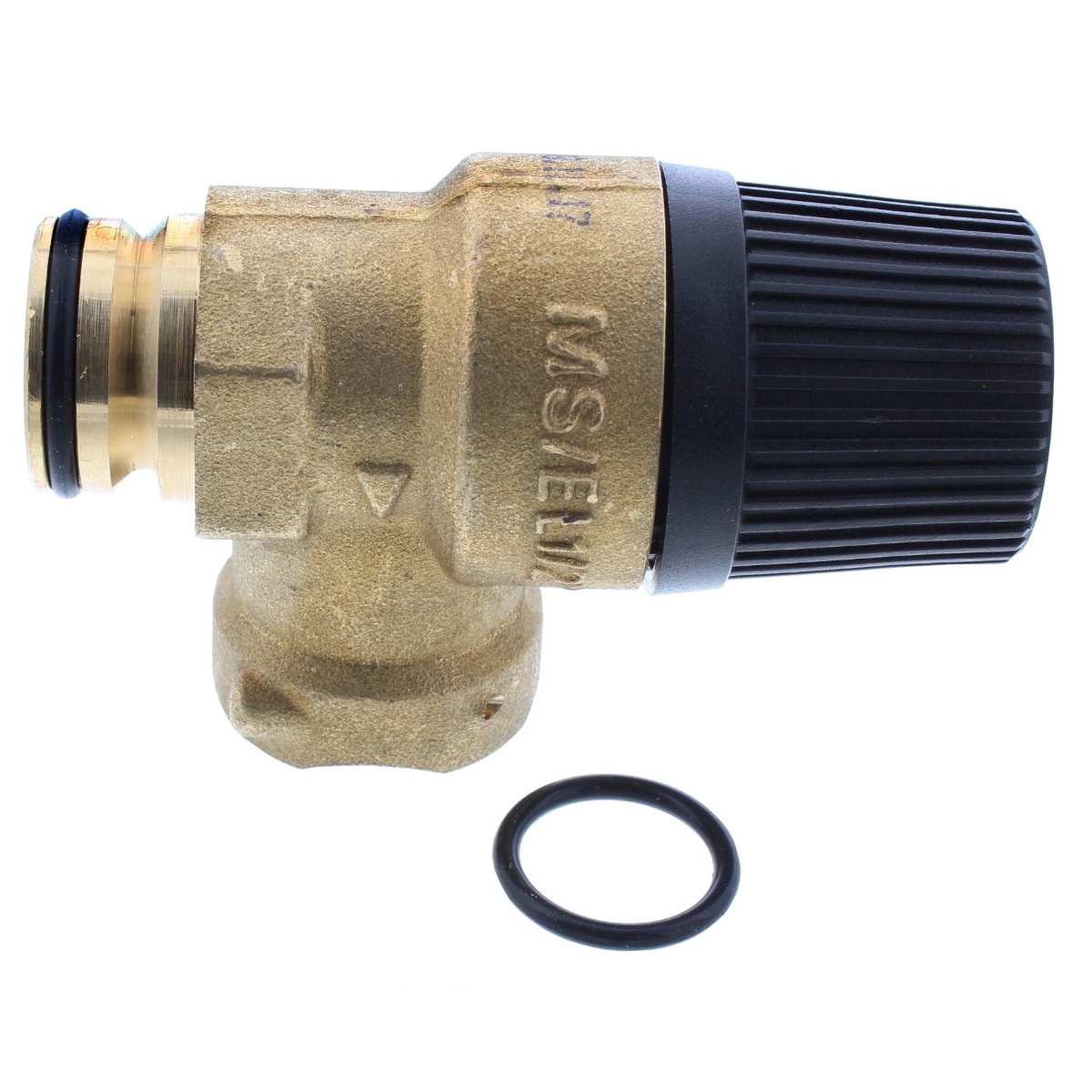

Worcester Bosch Pressure Relief Valve Si/C1 and RD Series 87161567640
At a glance
- Part type: Pressure relief valve
- Also known as 1019723
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£29.40
£24.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch pressure relief valve is a service spare for Si/C1 Series and RD Series appliances. It sits in the closed heating circuit and opens proportionally as system pressure rises, discharging water until the pressure returns to a safe level. That controlled release protects the appliance and the surrounding pipework from the effects of over-pressurisation.
Signs this part needs replacing
- The system pressure gauge reads high and will not settle back to its normal cold reading.
- Water is discharging from the pressure relief discharge pipe when the appliance is running or heating up.
- The valve body or its outlet weeps or drips continuously, even with the system cold.
- The appliance locks out or cuts out on an overheat or pressure-related fault.
- The valve fails to reseat after operating, leaving the system unable to hold pressure.
Before you order
- Check the GC number on the appliance data badge against the numbers listed above, and confirm the model in the compatibility list below.
- Compare the part number on the existing valve with 87161567640 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161567640 |
|---|---|
| GC number | E27-580 |
| Barcode / EAN | 4010009616429 |
| Commodity code | 8481 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161567640, 1019723 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 SI II RSF NG | 47-311-65 | 47-311-65 | — | — |
| WORCESTER 25 SI RSF COMBI LPG | 47-311-50 | 47-311-50 | — | — |
| WORCESTER 25 SI RSF COMBI NG | 47-311-49 | 47-311-49 | — | — |
| WORCESTER 28 SI II RSF NG | 47-311-67 | 47-311-67 | — | — |
| WORCESTER 28 SI RSF LPG | 47-311-52 | 47-311-52 | — | — |
| WORCESTER 28 SI RSF NG | 47-311-51 | 47-311-51 | — | — |
| WORCESTER BRITISH GAS C1-FSN-GB NG COMBI | 47-311-53 | 47-311-53 | — | — |
| WORCESTER BRITISH GAS RD628 RSF | 47-108-14 | 47-108-14 | — | — |
| WORCESTER WORCESTER 24SI II RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 25SI RSF LPG | — | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 SI II RSF NG (GC 47-311-65), 28 SI II RSF NG (GC 47-311-67)
manualmanualWORCESTER appliance manual — 25 SI RSF COMBI LPG (GC 47-311-50), 25 SI RSF COMBI NG (GC 47-311-49), 28 SI RSF LPG (GC 47-311-52), 28 SI RSF NG (GC 47-311-51)
manualmanualWORCESTER appliance manual — BRITISH GAS C1-FSN-GB NG COMBI (GC 47-311-53)
manualmanualWORCESTER appliance manual — BRITISH GAS RD628 RSF (GC 47-108-14)
manualNo technical questions yet for this part.
