Worcester Bosch Photocell Satronic MZ770S 87161566920

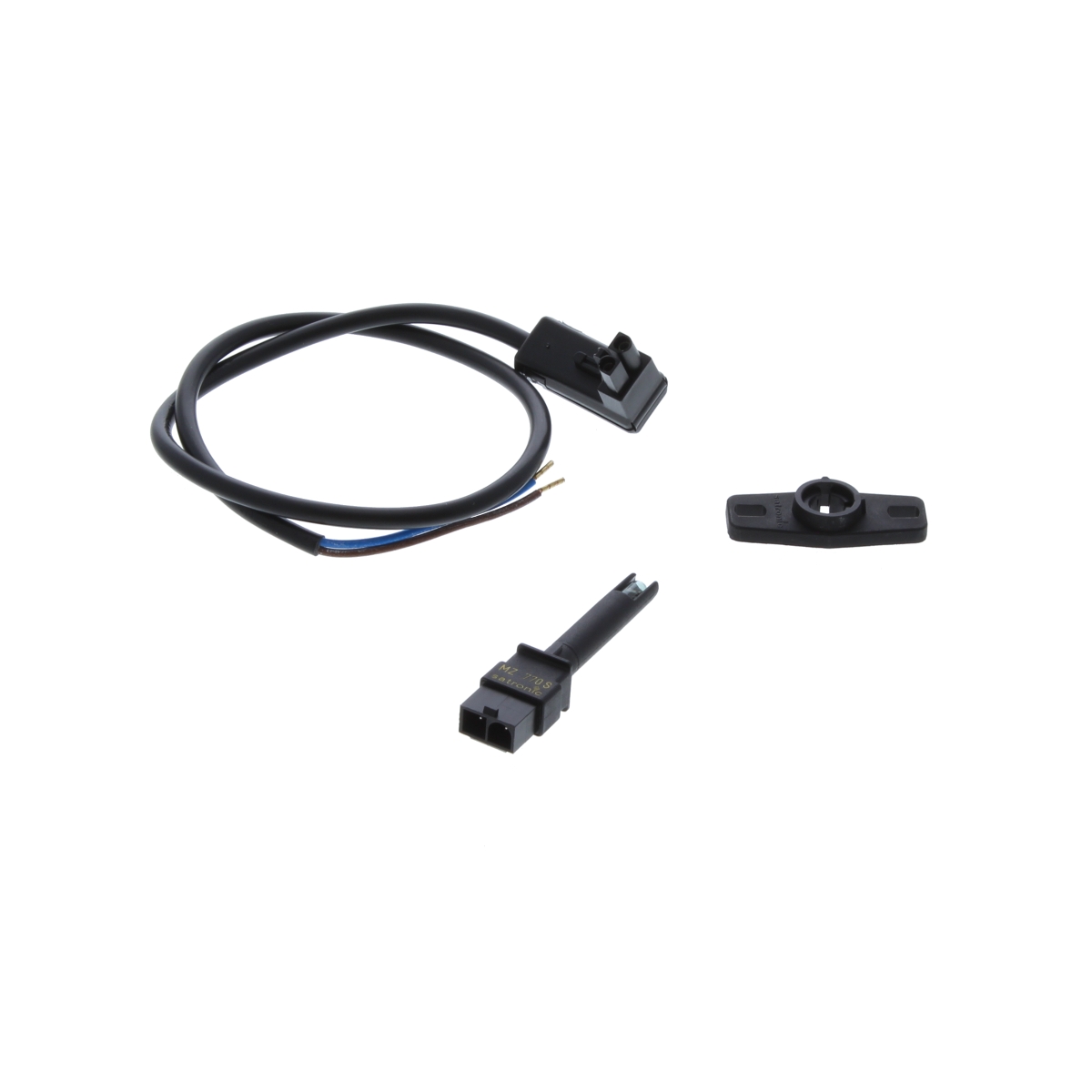

Worcester Bosch Satronic MZ770S photocell with flange and lead, a flame-sensing part for Danesmoor, Greenstar oil and Heatslave burners.
At a glance
- Part type: Cables, Leads & Wiring Harnesses
- Also known as 1019645
£70.42
£58.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch photocell, Satronic MZ770S, is a flame-sensing component that sits in the burner of Danesmoor, Greenstar oil and Heatslave appliances. It detects the presence of a flame in the combustion chamber and passes that signal back to the burner control box, which decides whether the appliance continues to fire or shuts down on lockout. The part is supplied complete with its mounting flange and connecting lead.
Signs this part needs replacing
- The burner fires and then locks out within a few seconds
- The appliance fails to ignite at all despite the burner running through its start sequence
- Repeated lockouts that need a manual reset before the appliance will run again
- Intermittent running, with the burner dropping out part way through a demand for heat
- A sooted, discoloured or contaminated sensing face on the photocell
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Quote part number 87161566920, or the alternative number 1019645, when ordering
- Inspect the flange and lead for damage or chafing before fitting the replacement
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161566920 |
|---|---|
| Barcode / EAN | 4010009737599 |
| Commodity code | 8541 40 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1019645 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER WORCESTER DANESMOOR FS 18/25 OOO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 OSO | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
