Worcester Bosch

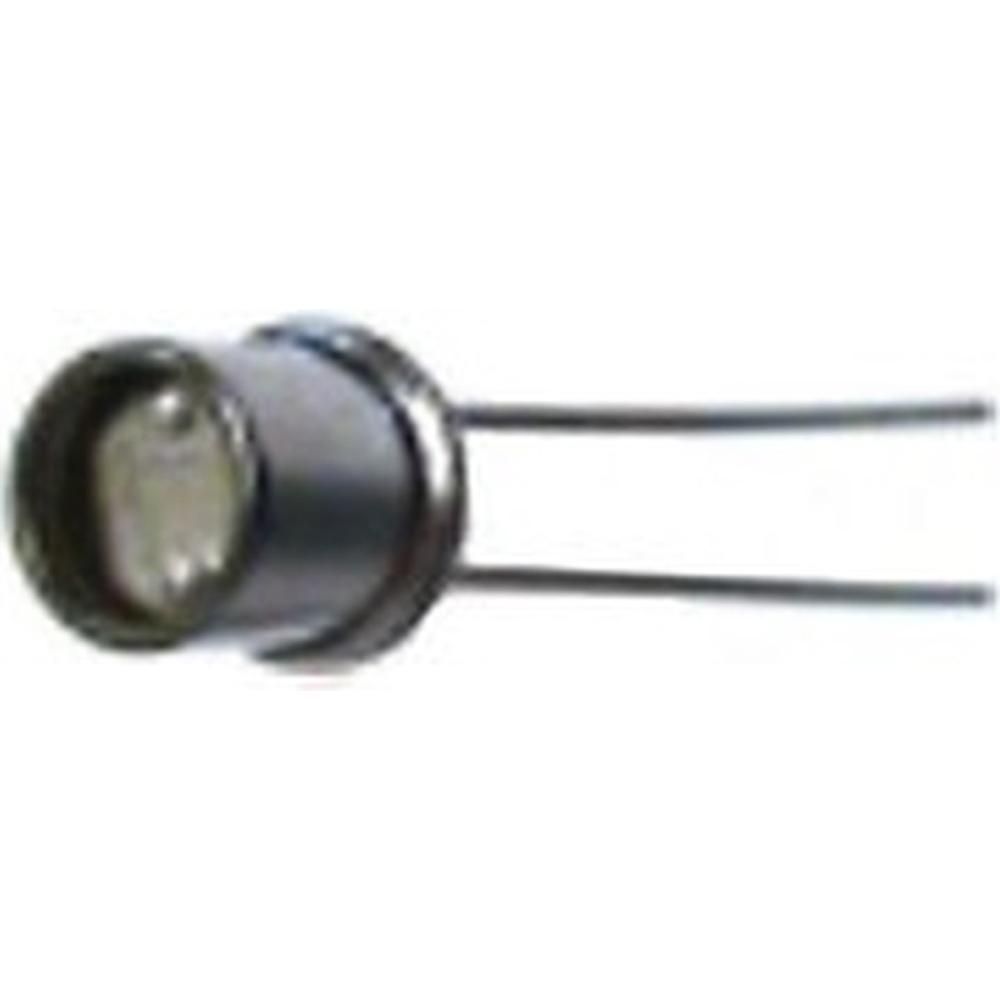

Worcester Bosch Photocell Lead Satronic MZ770S 87161566910
Worcester Bosch 87161566910 photocell lead for Satronic MZ770S burner controls, fitting Danesmoor FS 18/25 and Greenstar Heatslave 12/18 oil boilers.
At a glance
- Part type: Photocell lead
- Also known as 1019643
£21.13
£17.61 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161566910 is a replacement photocell lead for the Satronic MZ770S burner control arrangement used on Worcester oil-fired boilers. The lead carries the flame signal from the photocell back to the burner control box, allowing the control to confirm that ignition has taken place and to hold the burner in its run state. It is supplied as the lead only and sits within the Cables, Leads & Wiring Harnesses spare part group.
Signs this part needs replacing
- The burner fires and then locks out shortly afterwards, with the lockout indication showing on the control box.
- Repeated lockouts on start-up that clear only after a manual reset.
- Intermittent flame detection, where the burner runs on some attempts and not on others.
- Brittle, chafed or heat-damaged insulation along the lead, or a loose connection at the photocell or control box end.
- No flame signal reaching the control box even though the photocell itself is clean and correctly seated.
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering.
- Inspect the existing lead and its terminations, as the part is supplied as the lead only.
- Any work inside an oil-fired appliance should be carried out by a competent engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161566910 |
|---|---|
| Barcode / EAN | 4010009737582 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1019643 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER WORCESTER DANESMOOR FS 18/25 OOO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 OSO | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
