Worcester Bosch

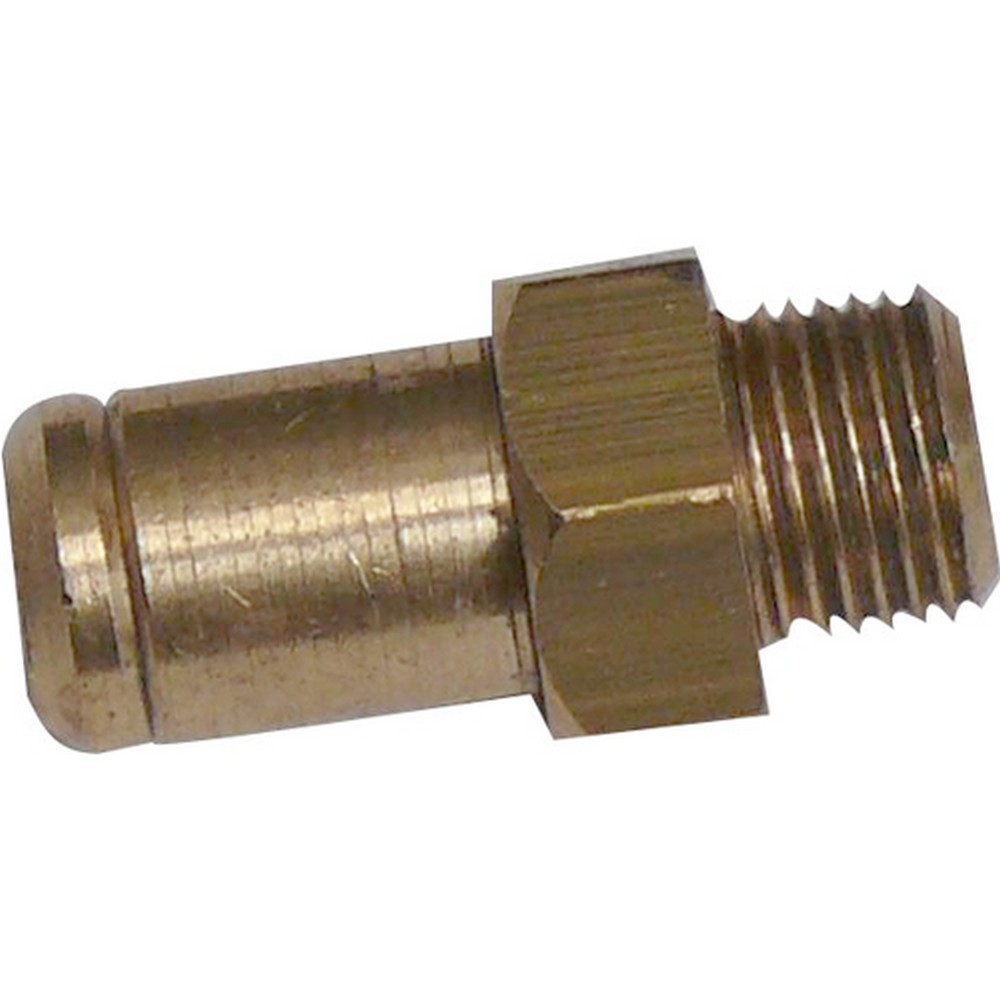

Worcester Bosch Burner Injector 24i Junior 87161563730
Worcester Bosch burner injector 87161563730 for 24i Junior and 26CDi Xtra LPG gas boilers, metering gas flow to the burner.
At a glance
- Part type: Burner injector
- Also known as 1019437
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£12.01
£10.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch burner injector, part 87161563730, is a metering component fitted to the burner assembly of Worcester 24i Junior and 26CDi Xtra LPG gas boilers. It regulates the flow of gas into the burner, setting the delivery rate the appliance needs for stable, clean combustion. Because the injector orifice is matched to the appliance's gas type and heat input, the correct part must be used for the model being worked on.
Signs this part needs replacing
- A yellow or lifting burner flame instead of a steady blue flame
- Sooting or blackening around the burner or heat exchanger
- The boiler fails to light or locks out repeatedly
- Combustion readings drift, with rising CO on flue gas analysis
- Rough, noisy or uneven burner operation
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the boiler model and gas type, as injectors are matched to the appliance they serve.
- Check whether a burner gasket or seal is needed when the burner assembly is disturbed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner injector |
|---|
Compliance
| Manufacturer part number (MPN) | 87161563730 |
|---|---|
| GC number | E04-590 |
| Barcode / EAN | 4010009735564 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1019437 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER WORCESTER 24i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 26CDi XTRA RSF LPG | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
