Worcester Bosch Fuse 4A Fast Blow 20x5mm 87161560080
Worcester Bosch 87161560080 4 A fast-blow fuse, 20 x 5 mm, for CBI and SBI boiler models; protects the appliance control circuit.
At a glance
- Part type: Fuse
- Also known as 1019367
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£4.43
£3.69 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

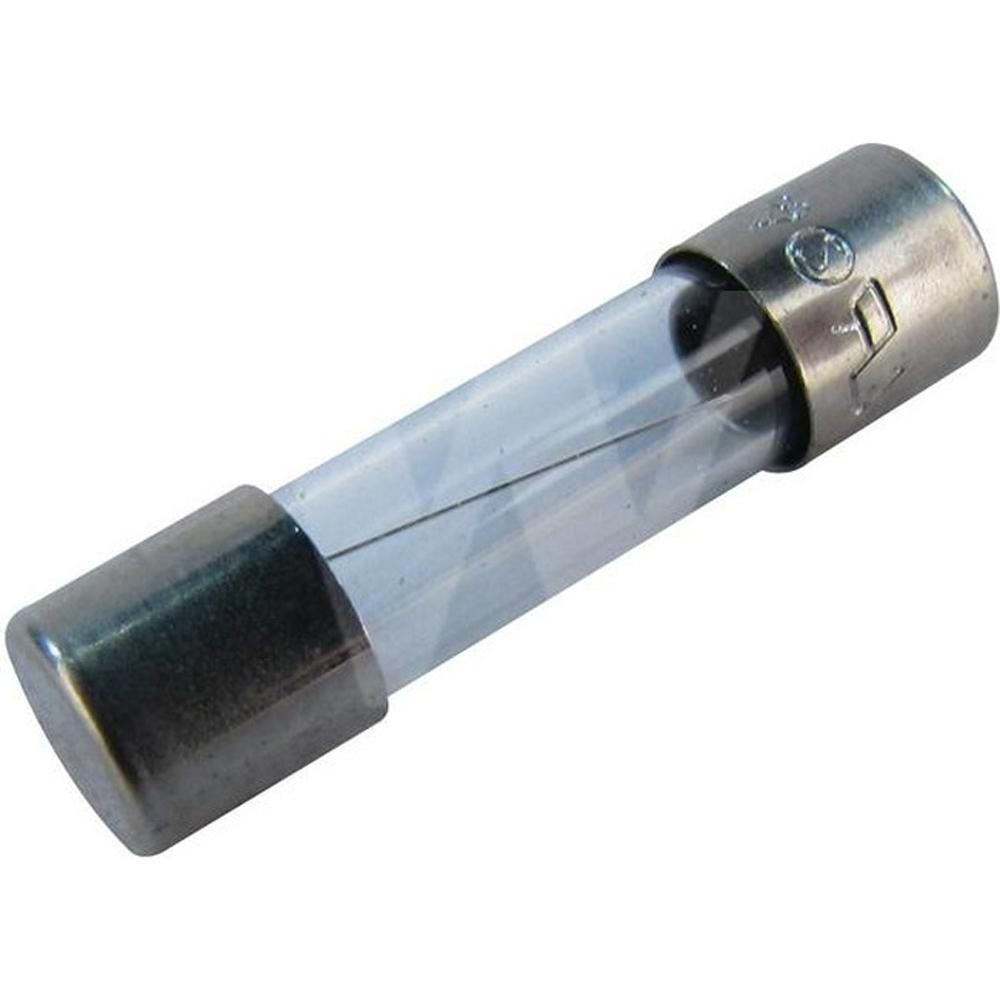

The Worcester Bosch 87161560080 is a 4 A fast-blow fuse supplied in a 20 mm x 5 mm glass cartridge format. It is a Worcester Bosch spare that sits in the electrical circuit of the appliance, where it clears quickly on an overcurrent fault to protect the control board and associated wiring. It is used across the Worcester Bosch CBI and SBI boiler families.
Signs this part needs replacing
- The appliance is completely dead with no display or indicator lights.
- The boiler fails to fire and the fan or pump does not run.
- A replacement fuse blows again immediately on power-up, pointing to a fault elsewhere in the circuit.
- The glass body shows a visible break in the element or blackening inside the cartridge.
- Scorching or discolouration around the fuse holder or its wiring.
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the GC number and appliance model against the compatibility list before ordering, as the same fuse rating is used across several Worcester Bosch models.
- Confirm the rating and dimensions match the fuse being removed; a 4 A fast-blow 20 x 5 mm cartridge is not interchangeable with a slow-blow or differently rated fuse.
- Note the previous Worcester Bosch number ZDELE582 when cross-referencing older documentation.
Mechanical
| Part type | Fuses, Capacitors & Relays |
|---|---|
| Dimensions | 20 x 5 mm |
Compliance
| Manufacturer part number (MPN) | 87161560080 |
|---|---|
| GC number | E60-500 |
| Barcode / EAN | 4010009734581 |
| Commodity code | 8536 10 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ZDELE582, 1019367 |
| Previous numbers | ZDELE582 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 14/19 CBI LPG | 41-311-53 | 41-311-53 | — | — |
| WORCESTER 14/19 CBI NG | 41-311-52 | 41-311-52 | — | — |
| WORCESTER 15 CBI NG | 41-311-47 | 41-311-47 | — | — |
| WORCESTER 15 SBI NG | 41-311-43 | 41-311-43 | — | — |
| WORCESTER 19/24 CBI LPG | 41-311-55 | 41-311-55 | — | — |
| WORCESTER 19/24 CBI NG | 41-311-54 | 41-311-54 | — | — |
| WORCESTER 24 CBI NG | 41-311-48 | 41-311-48 | — | — |
| WORCESTER 24 SBI RSF NG | 41-311-44 | 41-311-44 | — | — |
| WORCESTER 9/14 CBI LPG | 41-311-51 | 41-311-51 | — | — |
| WORCESTER 9/14 CBI NG | 41-311-50 | 41-311-50 | — | — |
Showing 10 of 19 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 14/19 CBI LPG (GC 41-311-53), 14/19 CBI NG (GC 41-311-52), 19/24 CBI LPG (GC 41-311-55), 19/24 CBI NG (GC 41-311-54), 9/14 CBI LPG (GC 41-311-51), 9/14 CBI NG (GC 41-311-50)
manualmanualWORCESTER appliance manual — 15 CBI NG (GC 41-311-47), 24 CBI NG (GC 41-311-48)
manualmanualWORCESTER appliance manual — 15 SBI NG (GC 41-311-43), 24 SBI RSF NG (GC 41-311-44)
