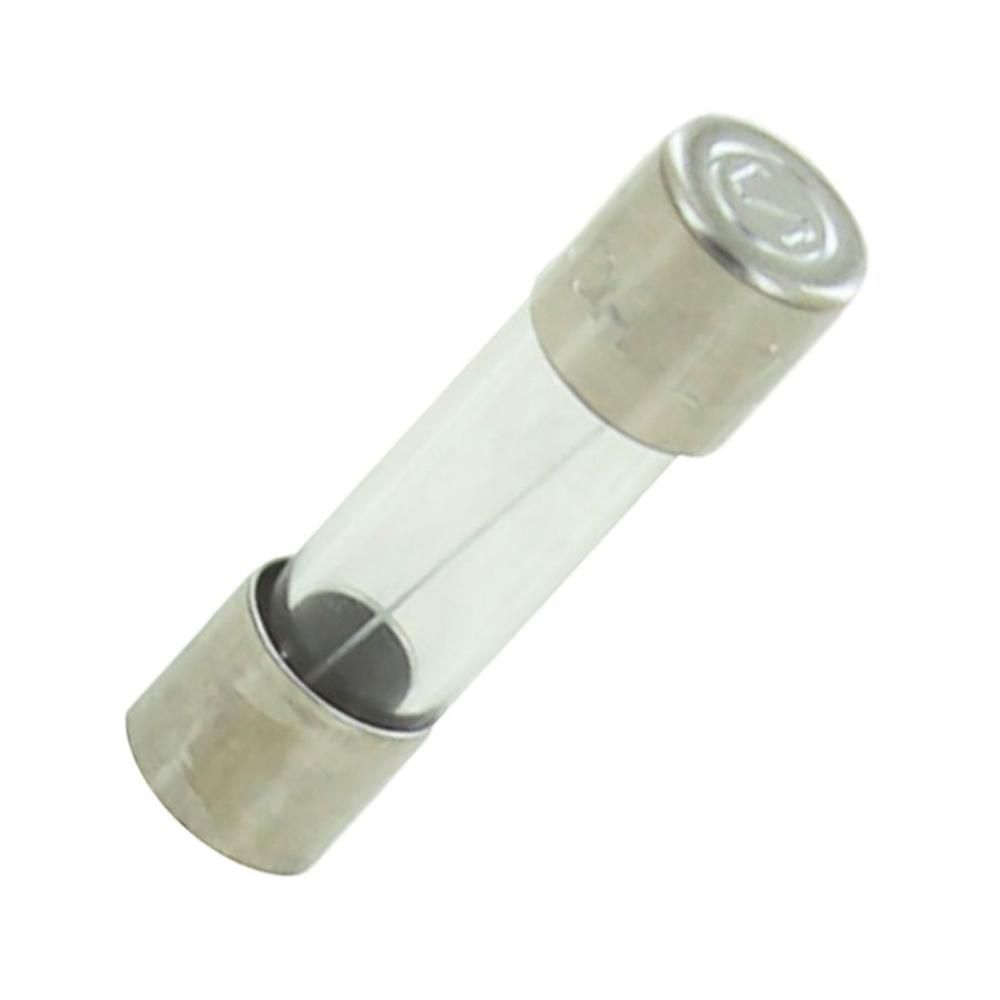

Worcester Bosch Fuse 1.25A 20mm Anti-Surge 87161560010
Worcester Bosch 1.25A anti-surge fuse, 20mm x 5mm, for 24 CDI and other Worcester Bosch boiler models.
At a glance
- Part type: Fuse
- Also known as 1019355
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£4.20
£3.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
A 1.25 amp anti-surge (time-lag) fuse measuring 20mm x 5mm, supplied by Worcester Bosch as a service spare for its domestic boiler range. It sits in the appliance's electrical circuit and protects the control electronics from current spikes, so a failed fuse will usually stop the boiler from running or responding at all. Anti-surge construction allows brief inrush currents at switch-on without rupturing the element.
Signs this part needs replacing
- Boiler is completely dead with no display, no fan and no ignition sequence
- Fuse shows a broken element, blackening or a scorched glass body on inspection
- Boiler trips out repeatedly and the fuse fails again shortly after replacement
- Intermittent shutdowns or loss of power to the control board during operation
- No response from the boiler after a power interruption or electrical fault elsewhere in the property
Before you order
- Check the GC number and appliance serial plate to confirm the correct fuse rating for your model
- Cross-reference the alternative and previous part numbers listed below against the old component before fitting
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fuses, Capacitors & Relays |
|---|---|
| Dimensions | 20mm x 5mm |
Compliance
| Manufacturer part number (MPN) | 87161560010 |
|---|---|
| GC number | H05-458 |
| Barcode / EAN | 4010009734512 |
| Commodity code | 8536 10 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ZDELE609, 1019355 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
Showing 10 of 31 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 24i JUNIOR RSF LPG (GC 47-311-71), 24i JUNIOR RSF NG (GC 47-311-69), 28i JUNIOR RSF NG (FEB 2003) (GC 47-311-72), 28i JUNIOR RSF NG (MAY 2003) (GC 47-311-70)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 35 CDI RSF LPG (GC 47-311-40), 35 CDI RSF NG (GC 47-311-39)
manualNo technical questions yet for this part.
