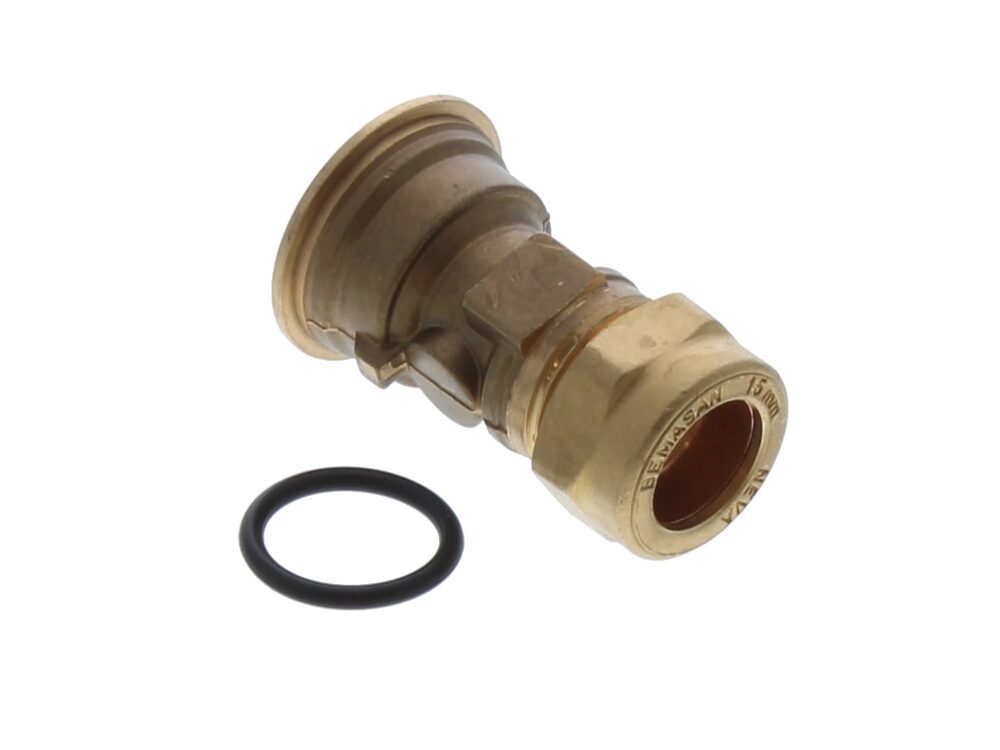

Worcester Bosch Service Connector 15mm 87161480040
Worcester Bosch 87161480040 15mm service connector for CDI gas boilers, used at the isolation point on the appliance pipework.
At a glance
- Part type: Isolation valves / valves and connections
- Also known as 1019093
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£19.49
£16.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161480040 is a 15mm service connector supplied by Worcester Bosch for its CDI range of gas boilers. It sits within the isolation valve arrangement on the appliance, giving an engineer a defined point at which the supply can be shut off and the connection broken for servicing, component replacement or pressure testing. The fitting is a 15mm valve and connection component, listed by the manufacturer under isolation valves.
Signs this part needs replacing
- Water weeping or a visible drip from the connector body or its joint with the appliance pipework
- A service valve that will not turn, or turns without shutting the supply off, leaving the appliance unable to be isolated
- Corrosion, scale build-up or staining around the valve body
- A damp or stained area beneath the boiler where the connection has been seeping over time
- Difficulty re-sealing the joint after the valve has been opened and closed repeatedly during servicing
Before you order
- Check the appliance GC number and model against the compatibility list, as the same boiler family uses several variants of this connection
- Confirm the previous part number ZCVLV023 if you are matching against an older order or an existing fitting
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | 15MM SERVICE CONNECTOR |
|---|
Compliance
| Manufacturer part number (MPN) | 87161480040 |
|---|---|
| GC number | 299-463 |
| Barcode / EAN | 4010009757641 |
| Alternative numbers | ZCVLV023, 1019093 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 28 CDI RSF LPG | 47-311-35 | 47-311-35 | — | — |
| WORCESTER 28 CDI RSF NG | 47-311-34 | 47-311-34 | — | — |
Showing 10 of 23 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualNo technical questions yet for this part.
