Worcester Bosch Turbine Flow Switch Assembly 87161461600
At a glance
- Part type: Turbine flow switch assembly with harness
- Also known as WB87161461600, 1018959
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£61.20
£51.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

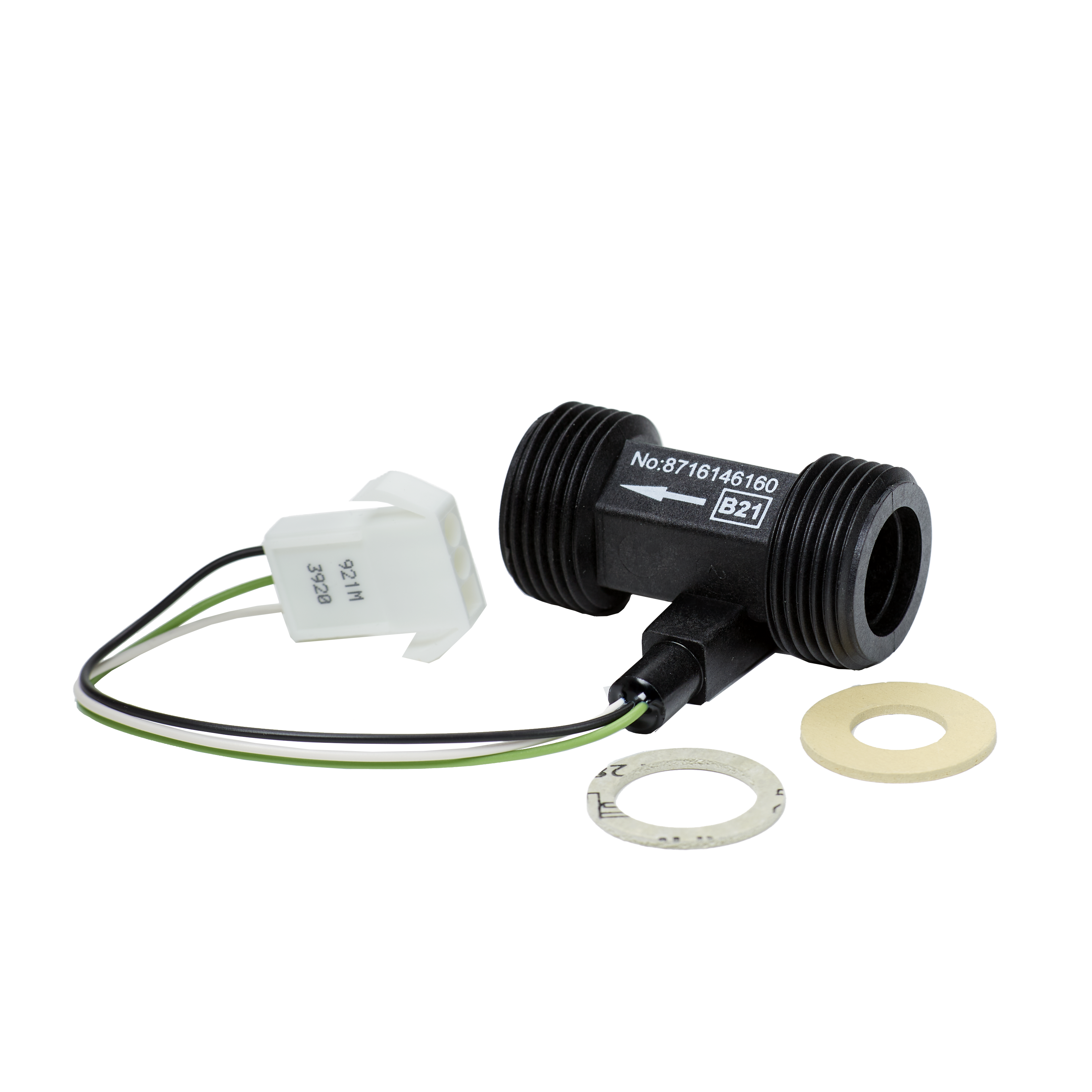

The Worcester Bosch 87161461600 is a turbine flow switch assembly supplied with its wiring harness. It is used on Worcester Bosch 28i RSF and HighFlow 400 Electronic appliances, where it sits in the domestic hot water circuit and detects the movement of water when a tap or outlet is opened. The turbine rotates with the flow, and the switch signal tells the boiler control board that hot water is being drawn so the burner can fire.
Signs this part needs replacing
- No hot water, or hot water only produced when the boiler is already running for heating
- Boiler does not fire when a hot water outlet is opened
- Hot water temperature fluctuates or runs intermittently
- Flow switch or hot water demand fault code shown on the appliance
- Turbine sticking, seized or obstructed by scale and debris in the water circuit
Before you order
- Check the GC number on the appliance data badge against the compatibility list above before ordering.
- Confirm the appliance model and serial number, as this assembly is used across several HighFlow 400 Electronic variants.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Turbine flow switch assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161461600 |
|---|---|
| GC number | E57-945 |
| Barcode / EAN | 4010009756774 |
| Commodity code | 8403 90 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161461600, 8-716-146-160-0, 1018959 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 28i RSF NG | 47-311-54 | 47-311-54 | — | — |
| WORCESTER HIGHFLOW 400 ELECTRONIC BF NG | 47-311-62 | 47-311-62 | — | — |
| WORCESTER HIGHFLOW 400 ELECTRONIC FSN NG | 47-311-61 | 47-311-61 | — | — |
| WORCESTER HIGHFLOW 400 ELECTRONIC FSP NG | 47-311-64 | 47-311-64 | — | — |
| WORCESTER HIGHFLOW 400 ELECTRONIC OF NG | 47-311-63 | 47-311-63 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 28i RSF NG (GC 47-311-54)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC BF NG (GC 47-311-62), HIGHFLOW 400 ELECTRONIC FSP NG (GC 47-311-64), HIGHFLOW 400 ELECTRONIC OF NG (GC 47-311-63)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC FSN NG (GC 47-311-61)
manualNo technical questions yet for this part.
