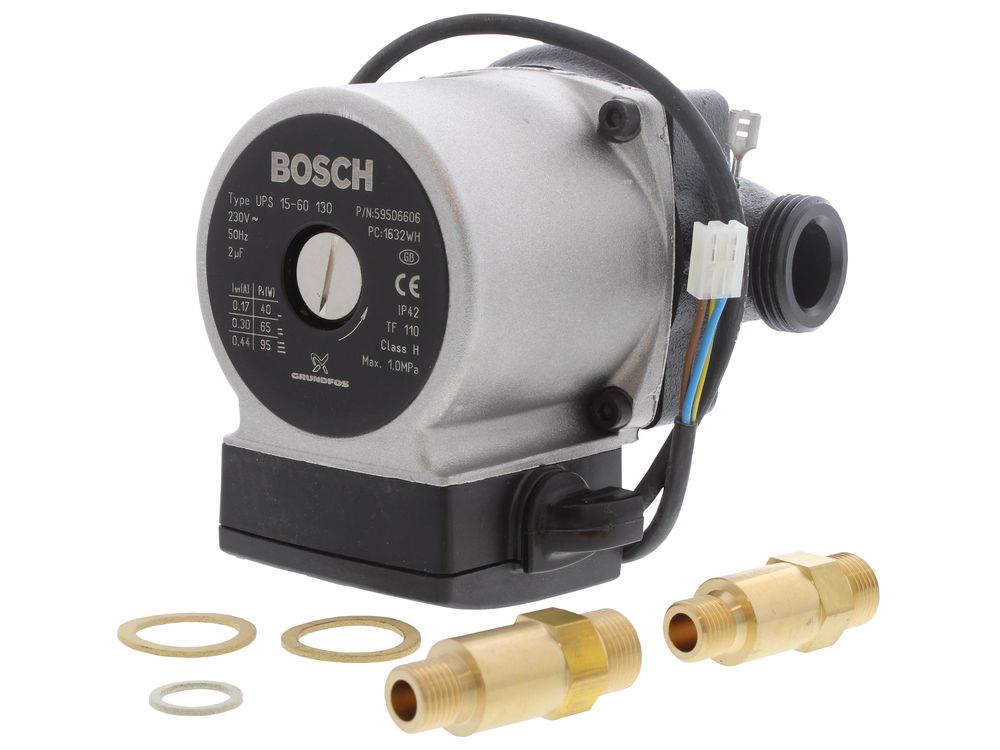

Worcester Bosch Combi Pump 24I 28I FSN NG 87161431070
Worcester Bosch 87161431070 combi pump for 24I and 28I FSN NG combi boilers and 24SBI / SBI 15 NG system models.
At a glance
- Part type: combi and system boiler circulation pump
- Also known as 1018651
£145.44
£121.20 ex. VAT · VAT at 20%
Call 01302 279234 to check availability
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161431070 is a circulation pump used on the FSN range of gas-fired combi and system boilers. It moves primary water around the heating circuit and through the domestic hot water plate heat exchanger, so it runs whenever there is a call for heat or hot water. The pump is supplied by Worcester Bosch as a direct replacement for the unit fitted at manufacture.
Signs this part needs replacing
- No heating or hot water despite the boiler firing and the controls calling for demand
- Pump body hot but the pipework either side staying cold, indicating the impeller is not turning
- Grinding, humming or rattling noise from the pump housing
- Boiler repeatedly locking out or tripping on overheat because circulation has stopped
- Visible weeping from the pump body, flange or shaft seal
Before you order
- Confirm the boiler model and serial number against the compatibility list, as FSN variants differ between combi and system builds
- Check the pump currently fitted against part number 87161431070 or the alternative numbers listed above
- Allow for a gasket or seal at the pump connection if the existing one is disturbed during removal
Mechanical
| Part type | Combi Pump |
|---|
Compliance
| Manufacturer part number (MPN) | 87161431070 |
|---|---|
| Commodity code | 8413 70 30 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161431070, 1018651 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
