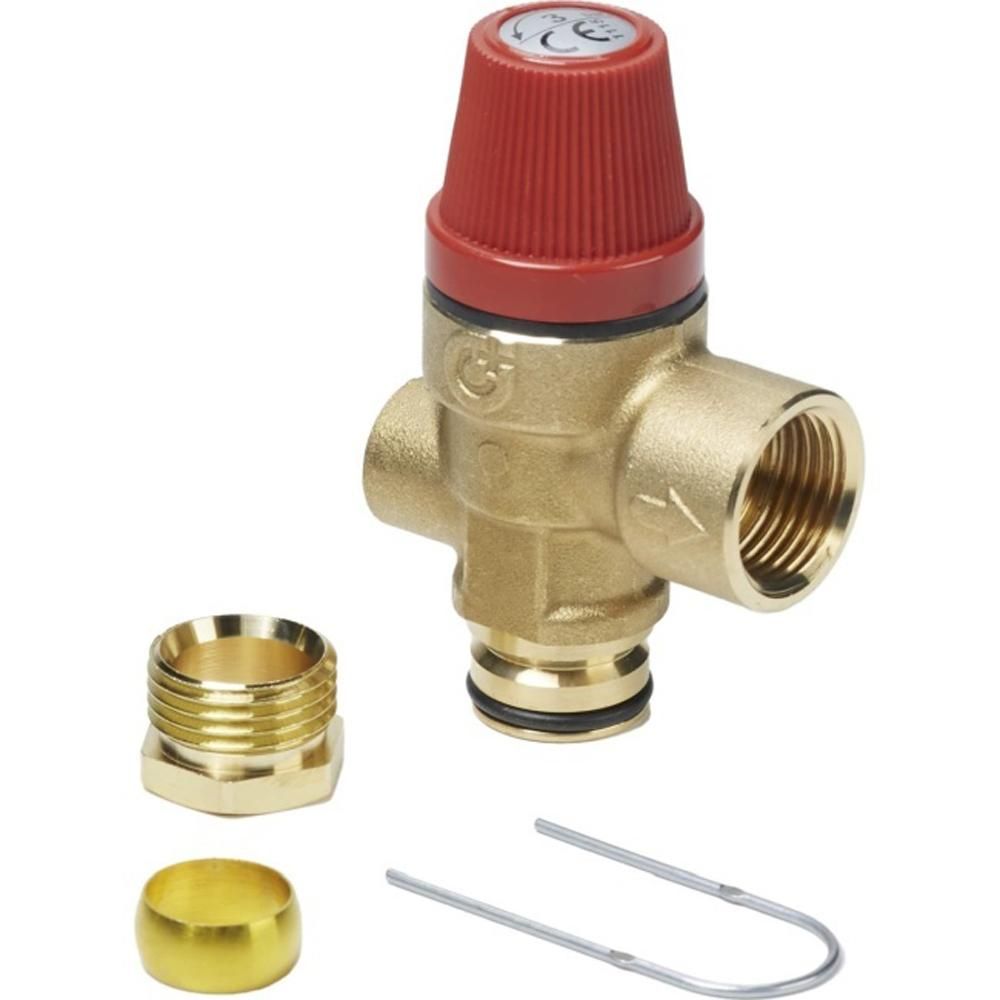

Worcester Bosch Pressure Relief Valve 87161424220
Worcester Bosch pressure relief valve 87161424220 for Greenstar Camray System and Camray System External boilers, GC number 378-810.
At a glance
- Part type: Pressure relief valve
- Also known as 314439, 1018195, N0221
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£25.72
£21.43 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161424220 is a pressure relief valve supplied as a spare for the Greenstar Camray range. It is mounted on the boiler's heating circuit and opens at its set pressure to discharge excess water away from the heat exchanger and other system components. The valve protects the appliance from over-pressurisation caused by expansion, blockage or a faulty expansion vessel.
Signs this part needs replacing
- Water discharging continuously from the pressure relief discharge pipe
- System pressure falling repeatedly and needing regular top-ups
- Weeping, dripping or scale staining around the valve outlet
- Boiler locking out or displaying a low pressure fault
- Valve failing to reseat after the system has been drained and refilled
Before you order
- Check the appliance GC number and model against the compatibility list before ordering.
- Cross-check the previous part number ZCVLV006 and the alternative numbers 1018195 and N0221 against the component being replaced.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161424220 |
|---|---|
| GC number | 378-810 |
| Barcode / EAN | 4010009727132 |
| Alternative numbers | 314439, PRESSURE-RELIEF-VALVE---314439, ZCVLV006, 1018195, N0221 |
| Previous numbers | ZCVLV006 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR CAMRAY SYSTEM 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM 25/32 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM EXTERNAL 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM EXTERNAL 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM EXTERNAL 25/32 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 25/32 | — | — | — | |
| WORCESTER HIGHFLOW 400 BF COMBI LPG | 47-311-22 | 47-311-22 | — | — |
Showing 10 of 29 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR CAMRAY SYSTEM 12/18, GREENSTAR CAMRAY SYSTEM 18/25, GREENSTAR CAMRAY SYSTEM 25/32
manualmanualWORCESTER appliance manual — GREENSTAR CAMRAY SYSTEM EXTERNAL 12/18, GREENSTAR CAMRAY SYSTEM EXTERNAL 18/25, GREENSTAR CAMRAY SYSTEM EXTERNAL 25/32
manualmanualWORCESTER appliance manual — GREENSTAR CAMRAY SYSTEM UTILITY 12/18, GREENSTAR CAMRAY SYSTEM UTILITY 18/25, GREENSTAR CAMRAY SYSTEM UTILITY 25/32
manualmanualWORCESTER appliance manual — HIGHFLOW 400 BF COMBI LPG (GC 47-311-22), HIGHFLOW 400 BF COMBI NG (GC 47-311-19)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC BF NG (GC 47-311-62), HIGHFLOW 400 ELECTRONIC FSP NG (GC 47-311-64), HIGHFLOW 400 ELECTRONIC OF NG (GC 47-311-63), HIGHFLOW 400 OF COMBI LPG (GC 47-311-23), HIGHFLOW 400 OF COMBI NG (GC 47-311-20)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC FSN NG (GC 47-311-61)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 RSF COMBI LPG (GC 47-311-21), HIGHFLOW 400 RSF COMBI NG (GC 47-311-18)
