Worcester Bosch

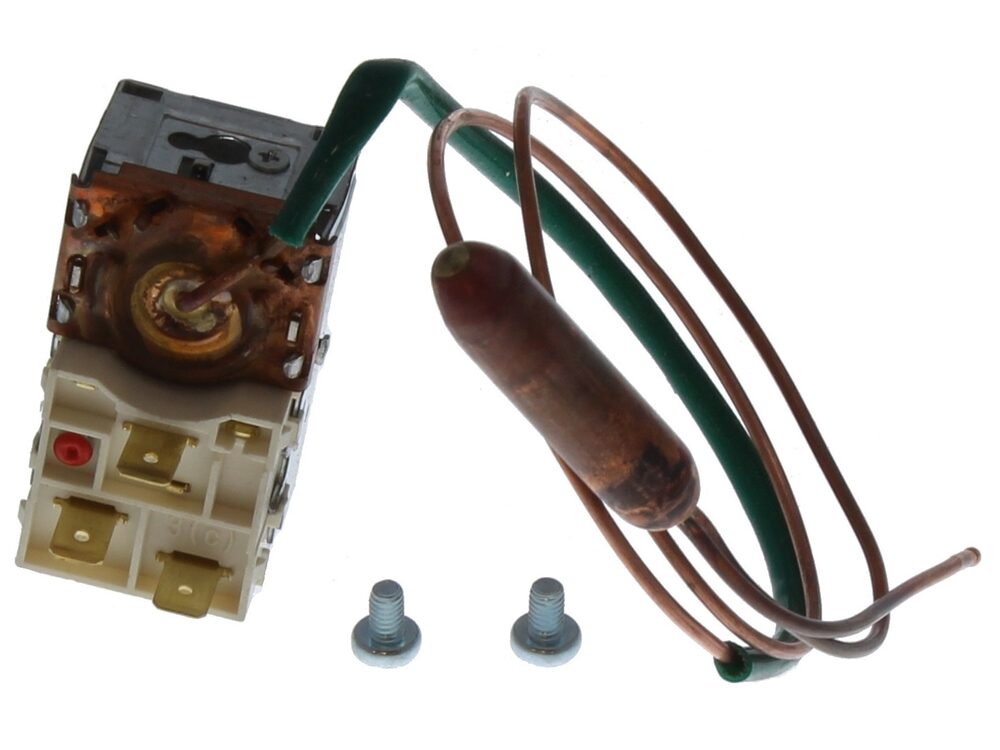

Worcester Bosch High Limit Thermostat K36-P2311-000 87161423140
High limit thermostat K36-P2311-000 for Worcester Bosch Heatslave oil combi boilers, supplied under part number 87161423140.
At a glance
- Part type: High limit thermostat (thermostats, thermistors and sensors)
- Also known as 1018057
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£43.10
£35.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch high limit thermostat, model reference K36-P2311-000, is a safety temperature control used in Worcester Heatslave oil combination boilers. It monitors the temperature of the appliance and interrupts the burner once the set limit is reached, preventing overheating and keeping operation within safe limits. It is supplied under Worcester Bosch part number 87161423140.
Signs this part needs replacing
- The boiler locks out or shuts down part-way through a heating cycle before reaching the set temperature
- Repeated high limit trips that need a manual reset to restore operation
- Domestic hot water runs cooler than expected or fluctuates between hot and cold
- The burner fails to fire, or cuts out shortly after ignition
- A lockout or fault indication pointing to a temperature sensor or thermostat fault
Before you order
- Check the appliance model and serial plate against the compatibility list before ordering.
- Confirm the existing thermostat carries the model reference K36-P2311-000.
- Cross-reference the alternative number 1018057 when checking against older documentation.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161423140 |
|---|---|
| Barcode / EAN | 4010009726210 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1018057 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER HEATSLAVE 12/14-OSO-GB OIL COMBI (JUL 1996) | — | — | — | |
| WORCESTER HEATSLAVE 12/14-OSO-GB OIL COMBI (OCT 2001) | — | — | — | |
| WORCESTER HEATSLAVE 12/14-RSO-GB OIL COMBI (JUN 1997) | — | — | — | |
| WORCESTER HEATSLAVE 12/14-RSO-GB OIL COMBI (OCT 2001) | — | — | — | |
| WORCESTER HEATSLAVE 15/19-OSO-GB OIL COMBI (JUL 1996) | — | — | — | |
| WORCESTER HEATSLAVE 15/19-RSO-GB OIL COMBI (JUN 1997) | — | — | — | |
| WORCESTER HEATSLAVE 20/25-OSO-GB OIL COMBI (JUN 1996) | — | — | — | |
| WORCESTER HEATSLAVE 20/25-OSO-GB OIL COMBI (SEPT 2001) | — | — | — | |
| WORCESTER HEATSLAVE 20/25-RSO-GB OIL COMBI (JUN 1997) | — | — | — | |
| WORCESTER HEATSLAVE 20/25-RSO-GB OIL COMBI (SEPT 2001) | — | — | — |
Showing 10 of 28 compatible appliances.
