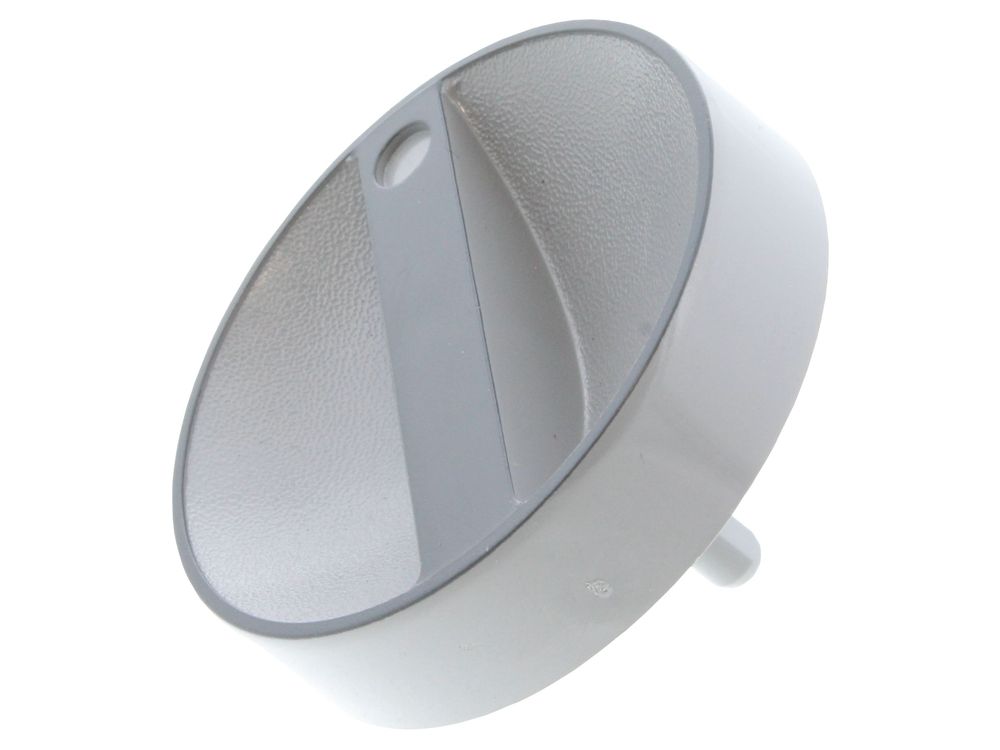

Worcester Bosch Selector Control Knob 87161410210
Worcester Bosch selector control knob 87161410210, mounted on a front spindle to adjust temperature and function settings on CDI boilers.
At a glance
- Part type: Control knob (buttons and knobs)
- Also known as 1017669, N0836
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£31.88
£26.57 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch selector control knob (87161410210) is a replacement control knob that fits onto one of the spindles on the front of the appliance. Turning it allows manual control of certain boiler functions: on many models it adjusts the temperature, and on some it changes the operating function so the boiler can supply hot water with the central heating off, or the reverse. It is a Worcester Bosch spare intended for the CDI range of appliances.
Signs this part needs replacing
- The knob is cracked, split or has broken away from the spindle
- The knob turns freely without changing the boiler setting
- The knob is missing, leaving the spindle exposed
- The pointer or the markings around the knob are worn so the setting cannot be read
- The knob sits loosely on the spindle and slips when turned
Before you order
- Check the model and GC number on the appliance data badge against the compatibility list before ordering.
- Older documentation may list this knob under the previous number ZIKNB020.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Buttons & Knobs |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161410210 |
|---|---|
| GC number | 299-511 |
| Barcode / EAN | 4010009723561 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161410210, ZIKNB020, 1017669, N0836 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 28 CDI RSF LPG | 47-311-35 | 47-311-35 | — | — |
| WORCESTER 28 CDI RSF NG | 47-311-34 | 47-311-34 | — | — |
Showing 10 of 27 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualmanualWORCESTER appliance manual — 35 CDI RSF LPG (GC 47-311-40), 35 CDI RSF NG (GC 47-311-39)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
