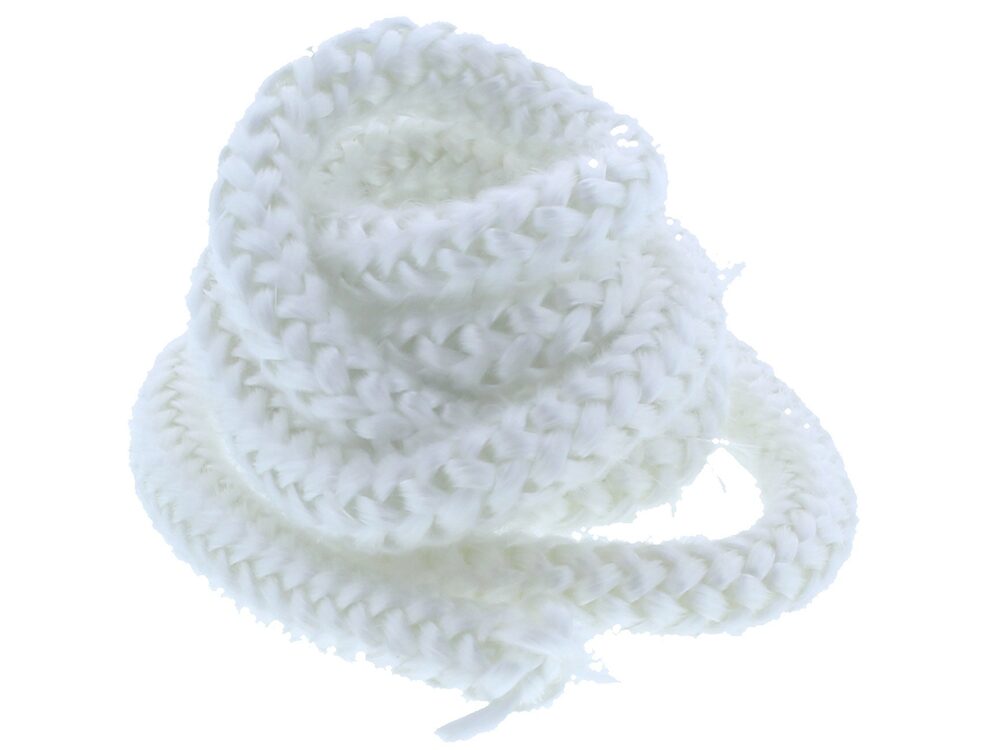

Worcester Bosch Rope Seal 13mm Type 4 87161409030
Worcester Bosch 13 mm Thermo-seal Type 4 rope seal, part 87161409030, for the heat exchanger access lid on Boilerhouse and Danesmoor oil boilers.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1017601
Showing prices
£10.06
£8.38 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch rope seal, part 87161409030, is a 13 mm diameter Thermo-seal Type 4 rope gasket that sits at the access lid on top of the heat exchanger. It compresses between the lid and the heat exchanger face to form a tight, airtight joint, keeping combustion products contained at that connection. It is a Worcester Bosch spare intended for the Boilerhouse and Danesmoor oil-fired appliance families.
Signs this part needs replacing
- The rope is flattened, hardened or visibly frayed where it seats on the lid face
- Soot or combustion staining around the heat exchanger access lid
- Weeping or damp traces at the lid joint after the boiler has run
- A flue gas smell or draught at the lid once it is refitted
- The seal crumbles or breaks apart when the lid is lifted during a service
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering.
- Check the existing seal is a 13 mm diameter Type 4 rope so the replacement matches the lid groove.
- Cross-reference the alternative and previous numbers 1017601 and ZEROP005 when checking older stock records.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161409030 |
|---|---|
| Barcode / EAN | 4010009950745 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ZEROP005, 1017601 |
| Previous numbers | ZEROP005 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BOILERHOUSE 12/14,15/19,20/25 | — | — | — | |
| WORCESTER BOILERHOUSE 26/32,35/50,50/70 | — | — | — | |
| WORCESTER DANESMOOR 12-25 OOO 1990-1996 | — | — | — | |
| WORCESTER DANESMOOR 12-25 OOO 1993-1996 | — | — | — | |
| WORCESTER DANESMOOR 12-25 OOO 1995-1998 | — | — | — | |
| WORCESTER DANESMOOR 12/14-OOO-GB OIL (DEC 1995) | — | — | — | |
| WORCESTER DANESMOOR 12/14-OOO-GB OIL (OCT 2001) | — | — | — | |
| WORCESTER DANESMOOR 12/14-OOO-GB UTLITY (APRIL 1996) | — | — | — | |
| WORCESTER DANESMOOR 12/14-OOO-GB UTLITY (OCT 2001) | — | — | — | |
| WORCESTER DANESMOOR 12/14-OSO-GB OIL SYS (DEC 2001) | — | — | — |
Showing 10 of 104 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — DANESMOOR 12-25 OOO 1990-1996, DANESMOOR 12-25 OOO 1993-1996, DANESMOOR 12-25 OOO 1995-1998, DANESMOOR 12/14-OOO-GB OIL (DEC 1995), DANESMOOR 12/14-OOO-GB OIL (OCT 2001), DANESMOOR 12/14-OOO-GB UTLITY (APRIL 1996), DANESMOOR 12/14-OOO-GB UTLITY (OCT 2001), DANESMOOR 12/14-ROO-GB OIL (DEC 2001), DANESMOOR 12/14-ROO-GB OIL (JAN 1996), DANESMOOR 12/14-ROO-GB UTLITY (MAY 1996), DANESMOOR 12/14-ROO-GB UTLITY (OCT 2001), DANESMOOR 15/19-OOO-GB OIL, DANESMOOR 15/19-OOO-GB UTLITY, DANESMOOR 15/19-ROO-GB OIL, DANESMOOR 15/19-ROO-GB UTLITY, DANESMOOR 20/25 RSO-GB OIL SYSTEM, DANESMOOR 20/25-OOO-GB OIL (DEC 1995), DANESMOOR 20/25-OOO-GB OIL (SEPT 2001), DANESMOOR 20/25-OOO-GB UTLITY (APRIL 1996), DANESMOOR 20/25-OOO-GB UTLITY (SEPT 2001), DANESMOOR 20/25-ROO-GB OIL (DEC 1995), DANESMOOR 20/25-ROO-GB OIL (SEPT 2001), DANESMOOR 20/25-ROO-GB UTLITY (APRIL 1996), DANESMOOR 20/25-ROO-GB UTLITY (SEPT 2001), DANESMOOR 26-32 OLD UTILITY, DANESMOOR 26-32-OOO 1991-1997, DANESMOOR 26/32 ROO-GB UTILITY OIL, DANESMOOR 26/32-OOO-GB OIL, DANESMOOR 26/32-OOO-GB UTLITY, DANESMOOR 26/32-ROO-GB OIL, DANESMOOR 26/32-ROO-GB UTLITY, DANESMOOR 32/50-OOO-GB OIL (NOV 1997), DANESMOOR 32/50-OOO-GB OIL (NOV 2001), DANESMOOR 32/50-OOO-GB UTLITY (NOV 1997), DANESMOOR 32/50-OOO-GB UTLITY (NOV 2001), DANESMOOR 50/70-OOO-GB OIL (DEC 1997), DANESMOOR 50/70-OOO-GB OIL (NOV 2001), DANESMOOR 50/70-OOO-GB UTLITY (DEC 1997), DANESMOOR 50/70-OOO-GB UTLITY (OCT 2001)
manualmanualWORCESTER appliance manual — DANESMOOR 12/14-OSO-GB OIL SYS (DEC 2001), DANESMOOR 12/14-OSO-GB OIL SYS (FEB 1998), DANESMOOR 12/14-RSO-GB OIL SYS (FEB 1998), DANESMOOR 12/14-RSO-GB OIL SYS (OCT 2001), DANESMOOR 15/19-OSO-GB OIL SYS, DANESMOOR 15/19-RSO-GB OIL SYS, DANESMOOR 20/25-OSO-GB OIL SYS (FEB 1998), DANESMOOR 20/25-OSO-GB OIL SYS (SEPT 2001), DANESMOOR 20/25-RSO-GB OIL SYS
manualmanualWORCESTER appliance manual — HEATSLAVE 12/14-OSO-GB OIL COMBI (JUL 1996), HEATSLAVE 12/14-OSO-GB OIL COMBI (OCT 2001), HEATSLAVE 12/14-RSO-GB OIL COMBI (JUN 1997), HEATSLAVE 12/14-RSO-GB OIL COMBI (OCT 2001), HEATSLAVE 15/19-OSO-GB OIL COMBI (JUL 1996), HEATSLAVE 15/19-RSO-GB OIL COMBI (JUN 1997), HEATSLAVE 20/25-OSO-GB OIL COMBI (JUN 1996), HEATSLAVE 20/25-OSO-GB OIL COMBI (SEPT 2001), HEATSLAVE 20/25-RSO-GB OIL COMBI (JUN 1997), HEATSLAVE 20/25-RSO-GB OIL COMBI (SEPT 2001), HEATSLAVE 26/32 COMBI, HEATSLAVE 26/32-OSO-GB OIL COMBI
manualNo technical questions yet for this part.
