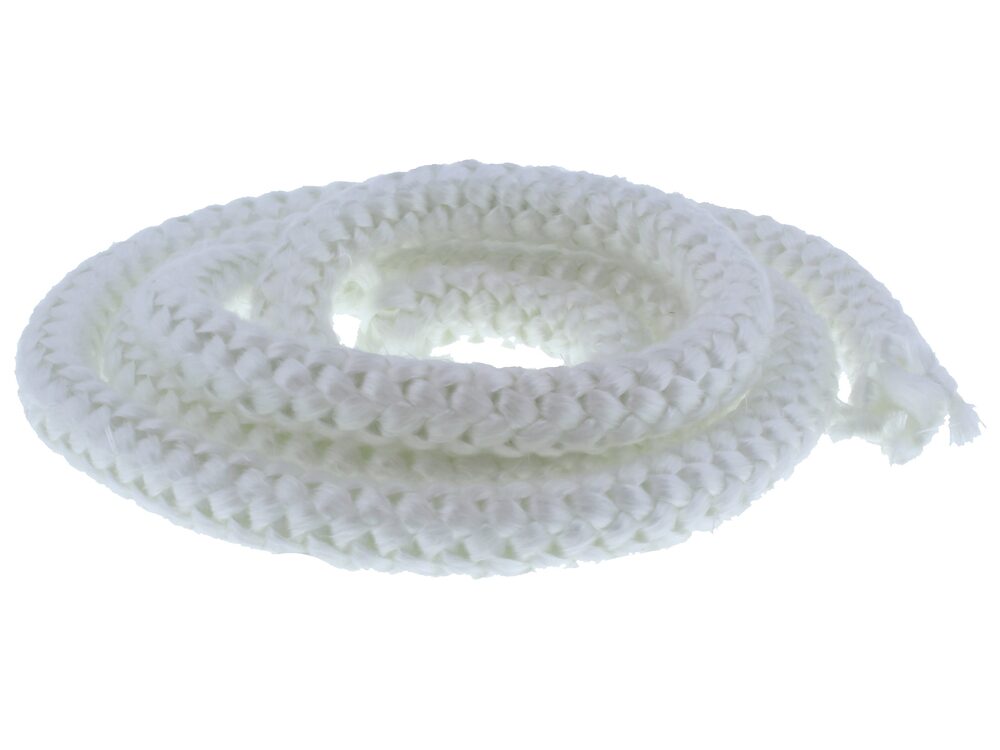

Worcester Bosch Rope Seal 19mm Dia Type 6 87161407330

This is a Worcester Bosch rope seal, supplied as a Type 6 thermoseal rope with a 19mm diameter. It seats around the heat exchanger front door, where it forms a tight, airtight joint that keeps combustion products and flue gases inside the appliance and stops water and condensate weeping past the door face. It is a service item on the Boilerhouse and Boulter Camray 5 ranges, and is replaced whenever the front door is opened for cleaning or inspection.

• Water or condensate tracking down the front door face or pooling beneath the heat exchanger
• A flattened, hardened or frayed rope seal that no longer springs back when the door is removed
• Soot staining or dark streaks around the door edge, indicating combustion gases escaping the joint
• A combustion smell or draught at the front of the appliance while it is running
• The seal breaking up or dropping away as the door is lifted off during a service

• Confirm the appliance model and serial number against the compatibility list, as the same range can use different door seals across output sizes
• Check the old seal against the alternative and previous numbers listed here before ordering, particularly on older Boilerhouse installations
• Order a replacement whenever the front door is disturbed, as a compressed rope seal will not reseal reliably once refitted
