Worcester Bosch

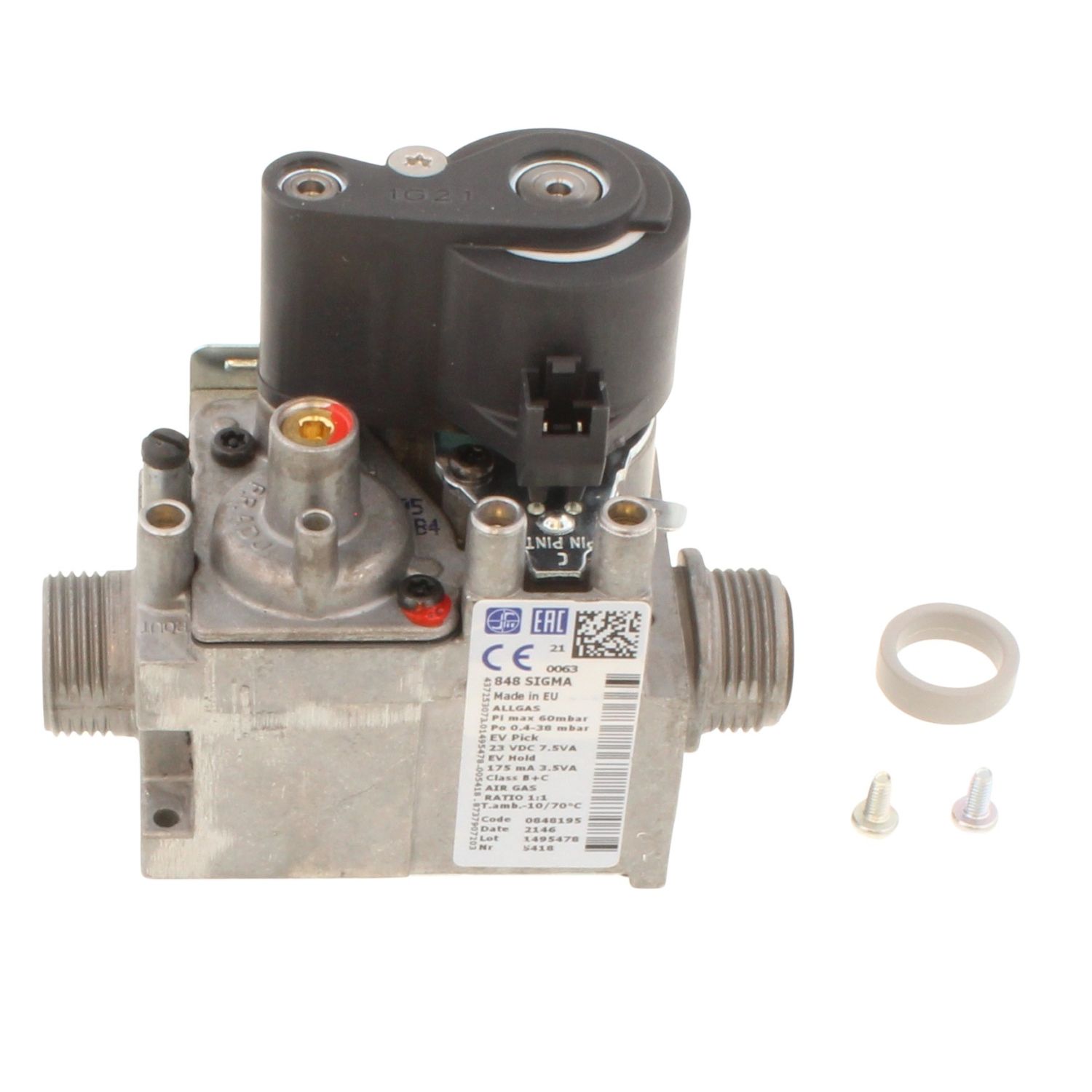

Worcester Bosch Gas Valve SIT 8716122007
Worcester Bosch 8716122007 SIT gas valve for Greenstar combi and system boilers, regulating gas flow to the burner. Fits 206 models.
At a glance
- Part type: Gas valve
- Also known as 2248742
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£174.79
£145.66 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8716122007 is a SIT gas valve supplied as a spare for the manufacturer's Greenstar combi and system boiler ranges. It controls the flow of gas to the burner, opening and closing on demand from the appliance control board and modulating the rate to match the heating or hot water load. The valve sits on the gas train between the isolation cock and the burner assembly.
Signs this part needs replacing
- The boiler fails to light or locks out during the ignition sequence
- No gas pressure reaches the burner when there is a call for heat
- The flame drops out shortly after ignition
- Repeated lockouts with fault codes relating to flame detection or gas supply
- The valve body sticks, leaks or fails to modulate smoothly
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the part number on the valve currently fitted, as earlier numbers 8-718-651-802-0 and 87186518020 may be present.
- Check whether a gasket or seal kit is needed for the gas train joint.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas valve |
|---|
Compliance
| Manufacturer part number (MPN) | 8716122007 |
|---|---|
| Commodity code | 8481 80 40 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 8-718-651-802-0, 2248742 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C NG | 47-800-26 | 47-800-26 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C NG | 47-800-28 | 47-800-28 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2301iW 25 C NG | 47-800-34 | 47-800-34 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2301iW 30 C NG | 47-800-36 | 47-800-36 | — | — |
| WORCESTER GREENSTAR 4000 COMBI GR4700iW 25 C NG | 47-800-30 | 47-800-30 | — | — |
| WORCESTER GREENSTAR 4000 COMBI GR4700iW 30 C NG | 47-800-32 | 47-800-32 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 12 S NG | 41-800-07 | 41-800-07 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 15 S NG | 41-800-09 | 41-800-09 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 18 S NG | 41-800-11 | 41-800-11 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 21 S NG | 41-800-13 | 41-800-13 | — | — |
Showing 10 of 206 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG (GC 47-800-18), GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG (GC 47-800-17), GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG (GC 47-800-16), GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG (GC 47-800-15), GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG (GC 47-800-14), GREENSTAR LIFE GR8300iW 30 C LPG, GREENSTAR LIFE GR8300iW 30 C NG (GC 47-800-18), GREENSTAR LIFE GR8300iW 35 C LPG, GREENSTAR LIFE GR8300iW 35 C NG (GC 47-800-17), GREENSTAR LIFE GR8300iW 40 C LPG, GREENSTAR LIFE GR8300iW 40 C NG (GC 47-800-16), GREENSTAR LIFE GR8300iW 45 C LPG, GREENSTAR LIFE GR8300iW 45 C NG (GC 47-800-15), GREENSTAR LIFE GR8300iW 50 C LPG, GREENSTAR LIFE GR8300iW 50 C NG (GC 47-800-14)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R NG (GC 41-406-98), GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R NG (GC 41-406-97), GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R NG (GC 41-406-96), GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R NG (GC 41-406-95), GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R NG (GC 41-406-94), GREENSTAR LIFE GR8300iW 30 R LPG, GREENSTAR LIFE GR8300iW 30 R NG (GC 41-406-98), GREENSTAR LIFE GR8300iW 35 R LPG, GREENSTAR LIFE GR8300iW 35 R NG (GC 41-406-97), GREENSTAR LIFE GR8300iW 40 R LPG, GREENSTAR LIFE GR8300iW 40 R NG (GC 41-406-96), GREENSTAR LIFE GR8300iW 45 R LPG, GREENSTAR LIFE GR8300iW 45 R NG (GC 41-406-95), GREENSTAR LIFE GR8300iW 50 R LPG, GREENSTAR LIFE GR8300iW 50 R NG (GC 41-406-94)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S NG (GC 41-406-91), GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S NG (GC 41-406-90), GREENSTAR LIFE GR8300iW 30 S LPG, GREENSTAR LIFE GR8300iW 30 S NG (GC 41-406-91), GREENSTAR LIFE GR8300iW 35 S LPG, GREENSTAR LIFE GR8300iW 35 S NG (GC 41-406-90)
manualmanualWORCESTER appliance manual — GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C NG (GC 47-800-03), GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C NG (GC 47-800-02), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C NG (GC 47-800-01), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C NG (GC 47-406-99), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C NG (GC 47-406-98), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB NG (GC 47-406-93), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S NG (GC 41-406-87), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S NG (GC 41-406-86), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 30 C LPG, GREENSTAR STYLE GR8700iW 30 C NG (GC 47-800-03), GREENSTAR STYLE GR8700iW 30 CB LPG, GREENSTAR STYLE GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR STYLE GR8700iW 30 S LPG, GREENSTAR STYLE GR8700iW 30 S NG (GC 41-406-87), GREENSTAR STYLE GR8700iW 30 SB LPG, GREENSTAR STYLE GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR STYLE GR8700iW 35 C LPG, GREENSTAR STYLE GR8700iW 35 C NG (GC 47-800-02), GREENSTAR STYLE GR8700iW 35 CB LPG, GREENSTAR STYLE GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR STYLE GR8700iW 35 S LPG, GREENSTAR STYLE GR8700iW 35 S NG (GC 41-406-86), GREENSTAR STYLE GR8700iW 35 SB LPG, GREENSTAR STYLE GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 40 C LPG, GREENSTAR STYLE GR8700iW 40 C NG (GC 47-800-01), GREENSTAR STYLE GR8700iW 40 CB LPG, GREENSTAR STYLE GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR STYLE GR8700iW 45 C LPG, GREENSTAR STYLE GR8700iW 45 C NG (GC 47-406-99), GREENSTAR STYLE GR8700iW 45 CB LPG, GREENSTAR STYLE GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR STYLE GR8700iW 50 C LPG, GREENSTAR STYLE GR8700iW 50 C NG (GC 47-406-98), GREENSTAR STYLE GR8700iW 50 CB LPG, GREENSTAR STYLE GR8700iW 50 CB NG (GC 47-406-93)
manualNo technical questions yet for this part.
