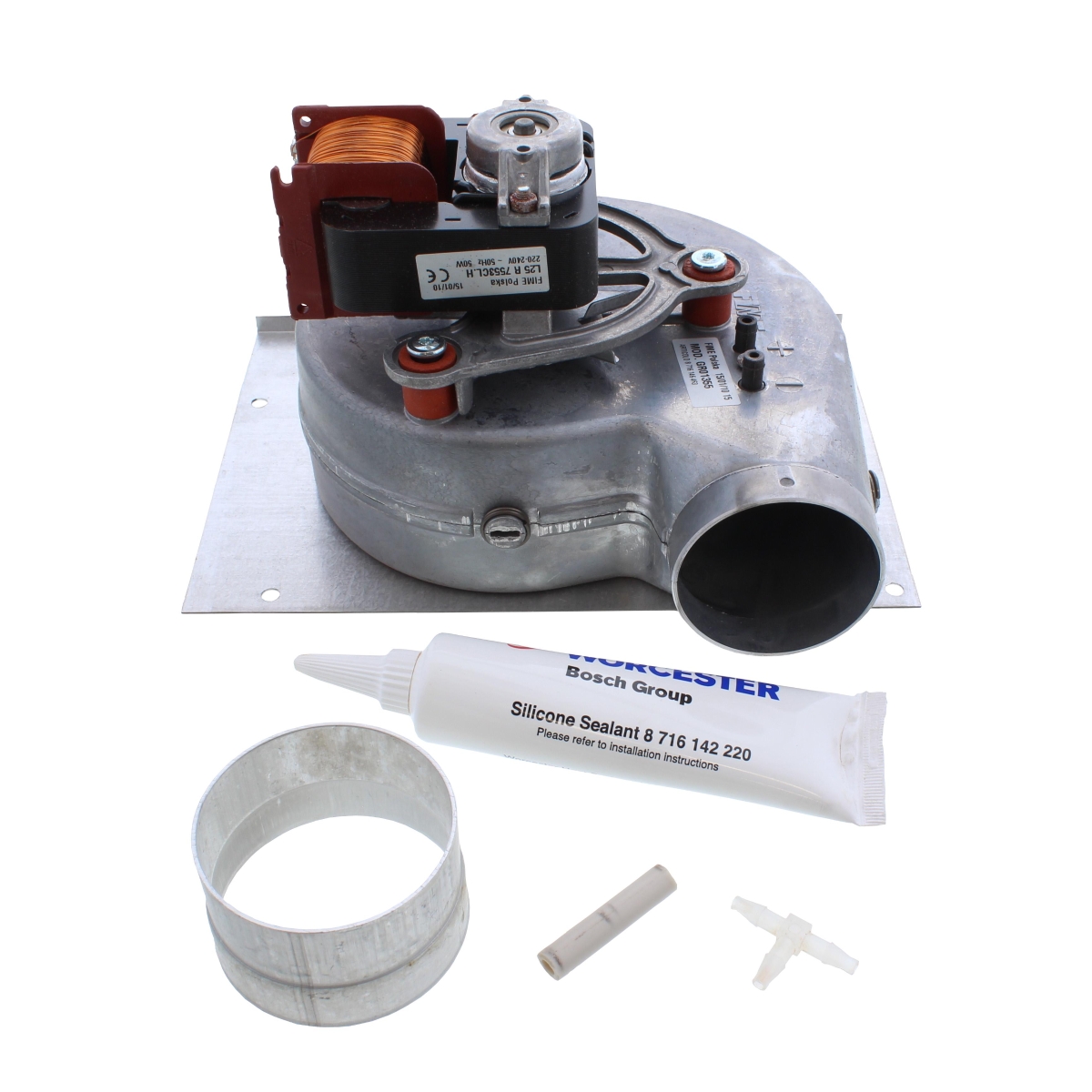

Worcester Bosch Fan Assembly System 24 kW 87161214560
At a glance
- Part type: Fan assembly
- Also known as WB87161214560, 1017021, N0619-2
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£195.96
£163.30 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch fan assembly for System 24 kW appliances is the forced-draught fan that pushes fresh air into the combustion chamber so the gas burns correctly, and clears the flue gases once combustion is complete. It is supplied as a Worcester Bosch spare under part number 87161214560. The boiler's safety controls stop gas reaching the main burner if the fan is not running correctly, so a fan that has failed will prevent the appliance from firing.
Signs this part needs replacing
- The boiler fails to fire or drops into lockout when there is a call for heat
- The fan is silent when the boiler starts up, or runs roughly and noisily
- Repeated ignition faults or flame failure shortly after the burner lights
- The appliance shuts down during a demand and will not restart until reset
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list below.
- Confirm the fan currently fitted carries part number 87161214560 or one of the alternative numbers listed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161214560 |
|---|---|
| GC number | E26-772 |
| Barcode / EAN | 4010009719939 |
| Commodity code | 8414 59 20 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161214560, 1017021, N0619-2 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 24 SBI RSF NG | 41-311-44 | 41-311-44 | — | — |
| WORCESTER WORCESTER 24CDi RSF LPG | — | — | — | |
| WORCESTER WORCESTER 24CDi RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 24SBI RSF NATURAL GAS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
