Worcester Bosch

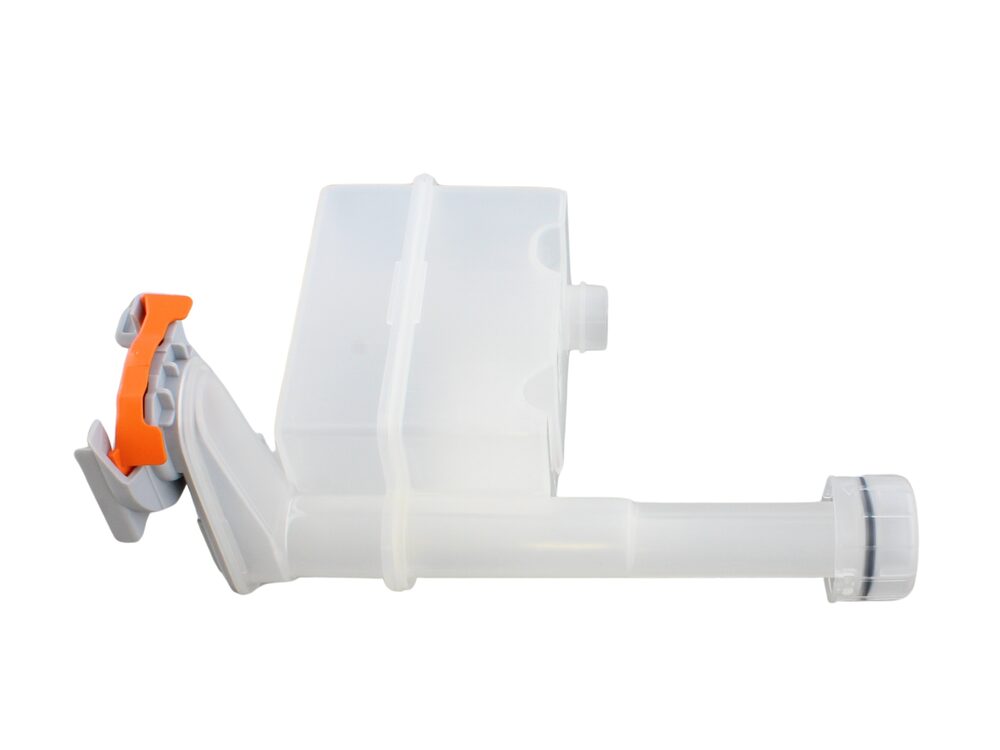

Worcester Bosch Siphon Horseshoe 4000 8716121405
Syphon horseshoe hose for Worcester Bosch Greenstar 4000 System boilers, part 8716121405.
At a glance
- Also known as 2244684
£32.12
£26.77 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The SIPHON HORSESHOE 4000 is a syphon hose manufactured by Worcester Bosch for the Greenstar 4000 System boiler range. It forms part of the condensate syphon assembly, carrying condensate away from the trap. The horseshoe shape allows the hose to sit within the boiler casing while maintaining the water seal in the condensate path.
Signs this part needs replacing
- Water or condensate leaking from the syphon area inside the casing
- Visible cracking, splitting or perishing of the hose, particularly at the bend
- Condensate collecting in the boiler instead of draining away
- Gurgling or irregular drainage from the condensate trap
- Repeated boiler shutdowns linked to condensate not clearing
Before you order
- Confirm the boiler model and GC number against the fit list before ordering
- Check the syphon assembly for damage to the trap body as well as the hose
- Verify that the existing hose is the horseshoe type used on the Greenstar 4000 System
- Isolate the appliance and follow the manufacturer's procedure before removing condensate components
Compliance
| Alternative numbers | 2244684 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 12 S LPG | 41-800-08 | 41-800-08 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 12 S NG | 41-800-07 | 41-800-07 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 15 S LPG | 41-800-10 | 41-800-10 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 15 S NG | 41-800-09 | 41-800-09 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 18 S LPG | 41-800-12 | 41-800-12 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 18 S NG | 41-800-11 | 41-800-11 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 21 S LPG | 41-800-14 | 41-800-14 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 21 S NG | 41-800-13 | 41-800-13 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 24 S LPG | 41-800-16 | 41-800-16 | — | — |
| WORCESTER GREENSTAR 4000 SYSTEM GR4700iW 24 S NG | 41-800-15 | 41-800-15 | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
