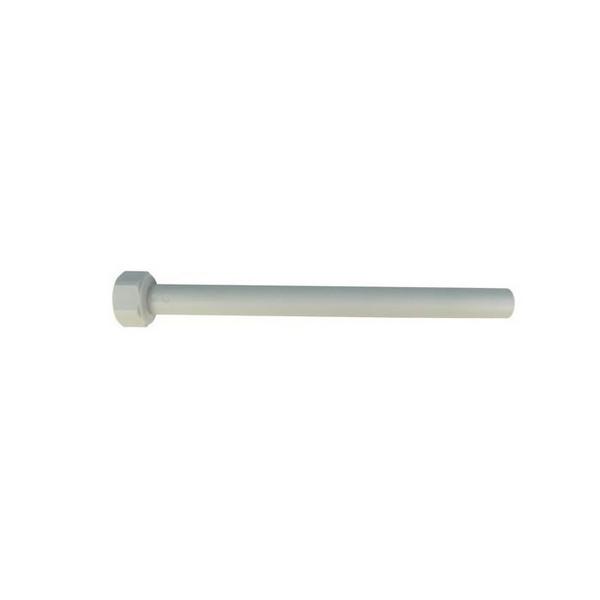

Worcester Bosch Condensate Assembly Siphon Drain Connector 87161213420
Worcester Bosch 87161213420 condensate assembly (siphon and drain connector) for 26CDi and 26CDi XTRA RSF gas boilers.
At a glance
- Part type: Condensate assembly (siphon and drain connector)
- Also known as 1016875, N5638
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£16.28
£13.57 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161213420 is a condensate assembly — the siphon and drain connector that collects condensate from the heat exchanger and carries it away to the boiler's drain point. It is manufactured by Worcester Bosch for the 26CDi and 26CDi XTRA RSF range of gas boilers. Because it sits in the condensate path, a sound seal and a clear internal passage are essential to keep the appliance running and draining correctly.
Signs this part needs replacing
- Water or condensate pooling beneath the boiler or around the siphon body
- Dripping from the condensate trap or drain connector while the boiler is running
- Boiler locking out or failing to fire where the condensate path is restricted or blocked
- Gurgling or bubbling noises from the condensate route during operation
- Visible cracks, heavy scale build-up, or a hardened and perished seal on the assembly
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering.
- Check the number on the existing part against 87161213420 and the alternative numbers 1016875 and N5638.
- Inspect the seal or gasket at the condensate connection and replace it if it is hardened or damaged.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Condensate Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161213420 |
|---|---|
| GC number | 795-480 |
| Barcode / EAN | 4010009755487 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1016875, N5638 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER WORCESTER 26CDi XTRA RSF LPG | — | — | — | |
| WORCESTER WORCESTER 26CDi XTRA RSF NATURAL GAS | — | — | — |
