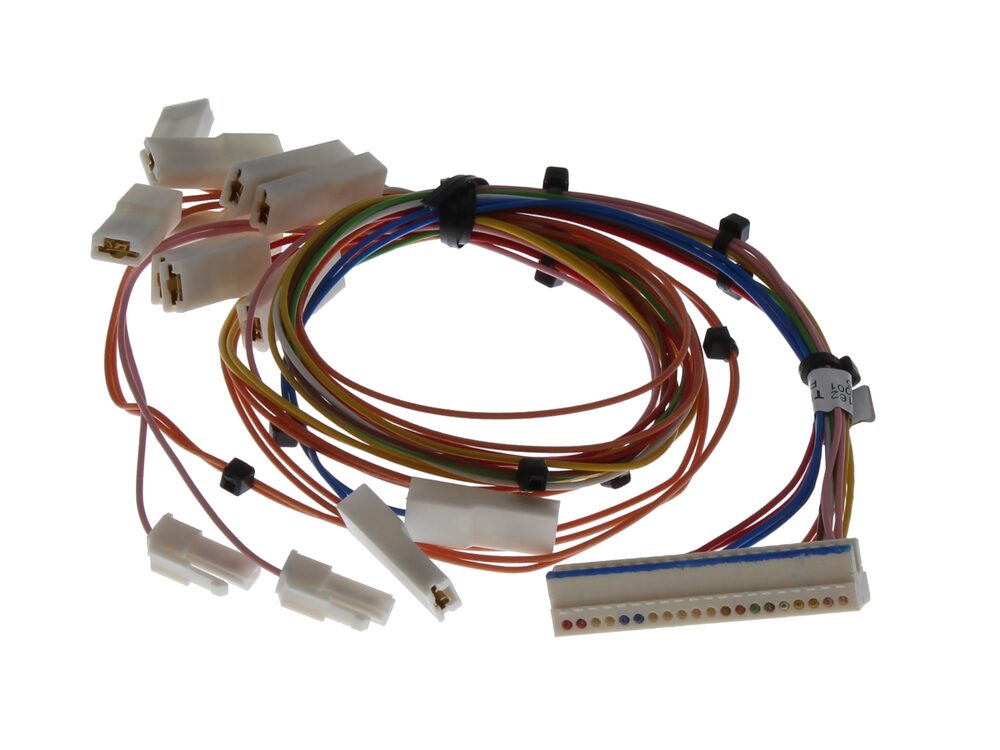

Worcester Bosch Wiring Harness Main 87161209810
Main wiring harness for Worcester Bosch 24I RSF Combi NG boilers, part number 87161209810.
At a glance
- Appliance family: Worcester 24I RSF Combi NG
- Also known as 1016589
£46.79
£38.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The main wiring harness for Worcester Bosch 24I RSF Combi NG boilers. It carries the electrical connections between the boiler's control components, including the PCB, fan, pump, and sensors. The part is identified by Worcester Bosch part number 87161209810.
Signs this part needs replacing
- Brittle, cracked, or heat-damaged insulation along the harness wiring
- Chafed or exposed conductors, particularly where the loom passes near sharp edges or hot surfaces
- Intermittent faults such as the boiler cutting out, failing to fire, or losing power with no obvious cause
- Discoloured, corroded, or loose connector terminals, or burn marks at the plug pins
- Faults that return after replacing the component the harness feeds
Before you order
- Confirm the boiler is a Worcester 24I RSF Combi NG and check the date code against the fitment list
- Compare connector count, plug types, and wire colours against the harness being removed
- Check the part number printed on the existing harness label where it is still legible
Compliance
| GC number | E01-926 |
|---|---|
| Barcode / EAN | 4010009753971 |
| Alternative numbers | 1016589 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
