Worcester Bosch

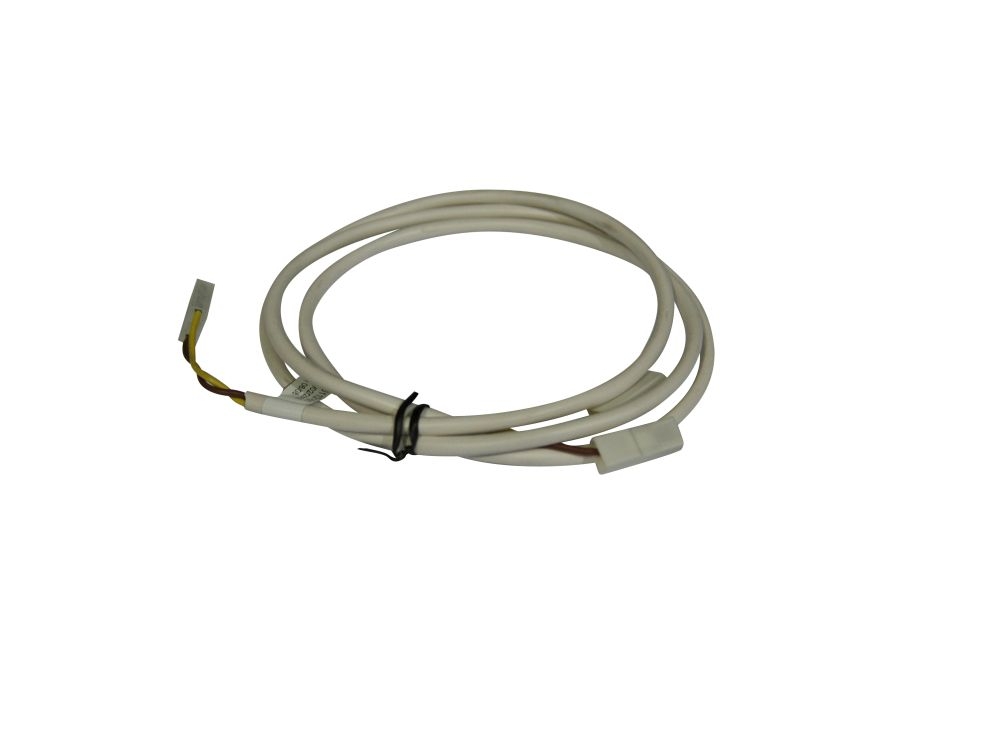

Worcester Bosch Fan Wiring Harness 87161209800
Fan wiring harness for Worcester Bosch 15 SBI, 24 SBI RSF, 24I RSF Combi and 28I RSF boilers.
At a glance
- Part type: Fan wiring harness
- Also known as 1016587
£10.18
£8.48 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161209800 is a wiring harness for the fan assembly. It provides the electrical connection between the fan and the boiler's control circuit. It is used across a number of Worcester 15 SBI, 24 SBI RSF, 24I RSF Combi and 28I RSF appliances.
Signs this part needs replacing
- The fan does not start, or starts intermittently
- Boiler locks out with a fan-related fault
- Wiring insulation is cracked, brittle or scorched
- Connector terminals are loose, corroded or discoloured
- The fan runs only when the harness is moved or the plug is reseated
Before you order
- Confirm your boiler model and GC number against the fit list above
- Check the connector type and number of pins on the existing harness
- Inspect the fan and PCB terminals for damage that may have caused the fault
- Isolate the boiler from the electrical supply before fitting
Compliance
| GC number | E01-925 |
|---|---|
| Barcode / EAN | 4010009763918 |
| Alternative numbers | 1016587 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 15 SBI NG | 41-311-43 | 41-311-43 | — | — |
| WORCESTER 24 SBI RSF NG | 41-311-44 | 41-311-44 | — | — |
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 28i RSF NG | 47-311-54 | 47-311-54 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
