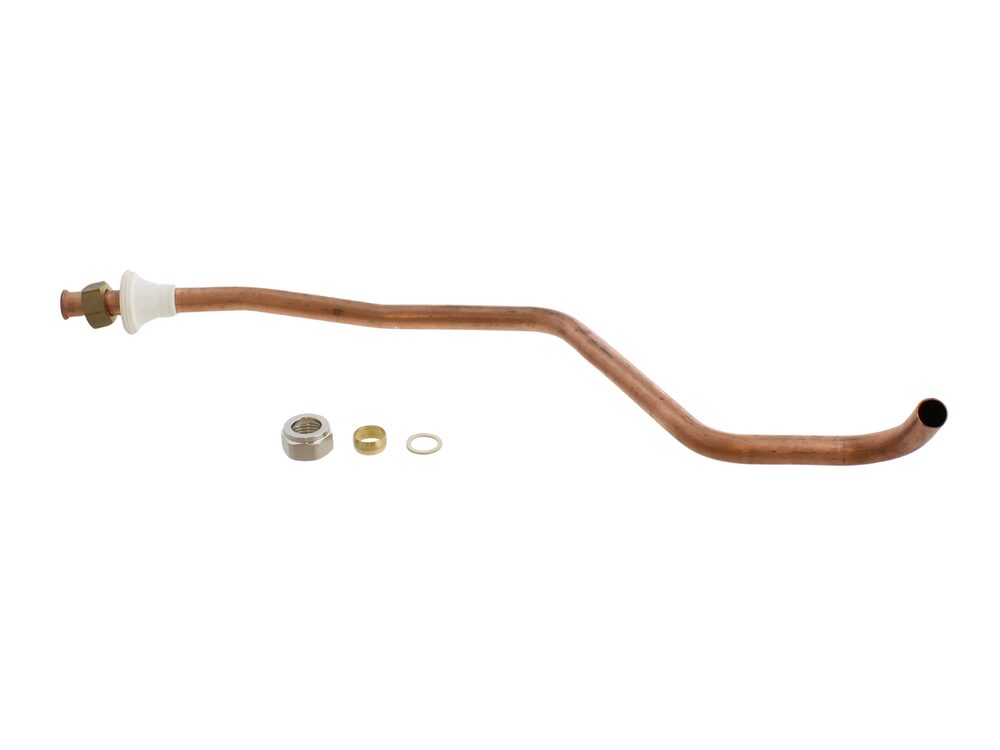

Worcester Bosch DHW Outlet Pipe Assembly 87161209700
DHW outlet pipe assembly for Worcester Bosch 24I RSF Combi and 28I RSF gas boilers, part number 87161209700.
At a glance
- Also known as 1016581
£26.02
£21.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161209700 is a domestic hot water (DHW) outlet pipe assembly used on Worcester Bosch gas boilers. It carries heated water from the appliance's DHW circuit to the outlet connection. The assembly is used across appliances with version codes ANG, ANH, ANX, ANY, APH, API, AQN and others.
Signs this part needs replacing
- Water weeping or dripping from the pipe or its joints
- Corrosion, scale or mineral build-up on the pipe surface
- Reduced hot water flow at the outlet
- Visible cracks, kinks or deformation in the pipe
- Water staining or damp around the DHW outlet area
Before you order
- Confirm your boiler model matches one of the fitments listed above.
- Check the version code on your appliance against the codes listed.
- Verify the part number 87161209700 against the existing component or the manufacturer's parts list.
Compliance
| GC number | E01-899 |
|---|---|
| Barcode / EAN | 4010009763871 |
| Alternative numbers | 1016581 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 28i RSF NG | 47-311-54 | 47-311-54 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
