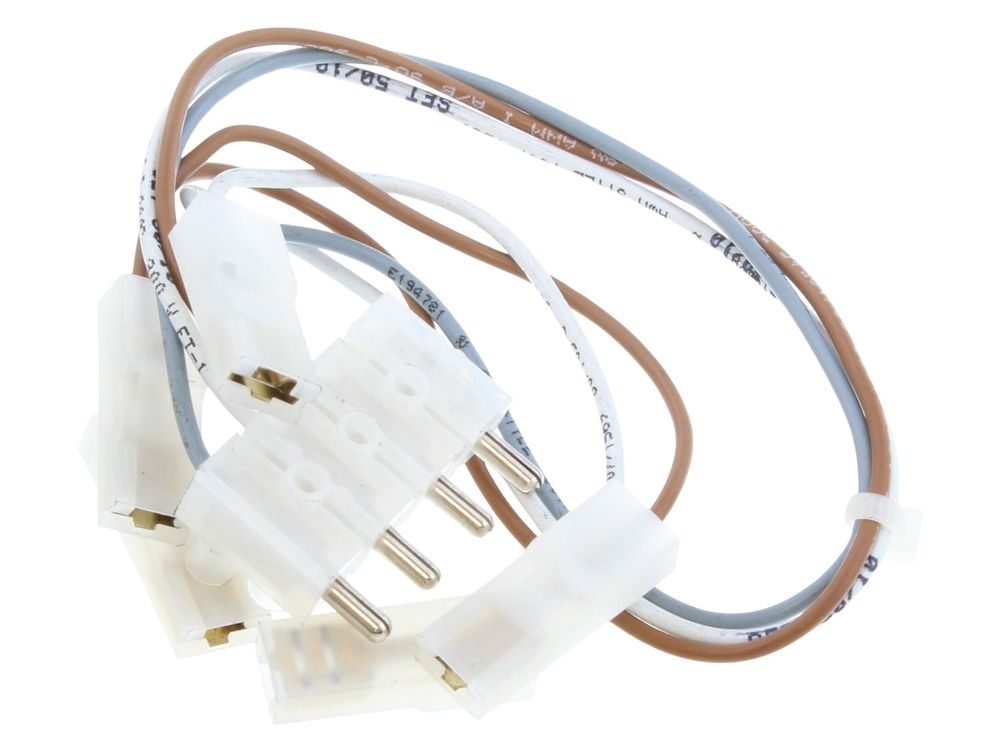

Worcester Bosch Wiring Harness 3-Way Switch 87161209100
Wiring harness for the 3-way switch on Worcester Bosch diverter valves, suitable for a range of Worcester gas and oil boilers.
At a glance
- Also known as 1016551
£25.61
£21.34 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
Worcester Bosch wiring harness for the 3-way switch, part number 87161209100. It connects the 3-way switch to the boiler wiring on the diverter valve assembly. This harness is used across a range of Worcester gas and oil boilers, including the 230, 240, 280, 350, 9.24 Electronic, Danesmoor, Heatslave and Highflow families.
Signs this part needs replacing
- Diverter valve does not switch between central heating and hot water
- Boiler fails to respond to a hot water demand
- Intermittent or no continuity through the harness
- Damaged, corroded or loose connections at the plugs
- Diverter valve or hot water fault codes logged
Before you order
- Check your boiler model against the fit list above
- Confirm the part number on the existing harness is 87161209100
- Check the connector type and number of ways match the existing harness
- Have your boiler's GC number to hand where available
Compliance
| GC number | 371-494 |
|---|---|
| Barcode / EAN | 4010009753513 |
| Alternative numbers | 1016551 |
