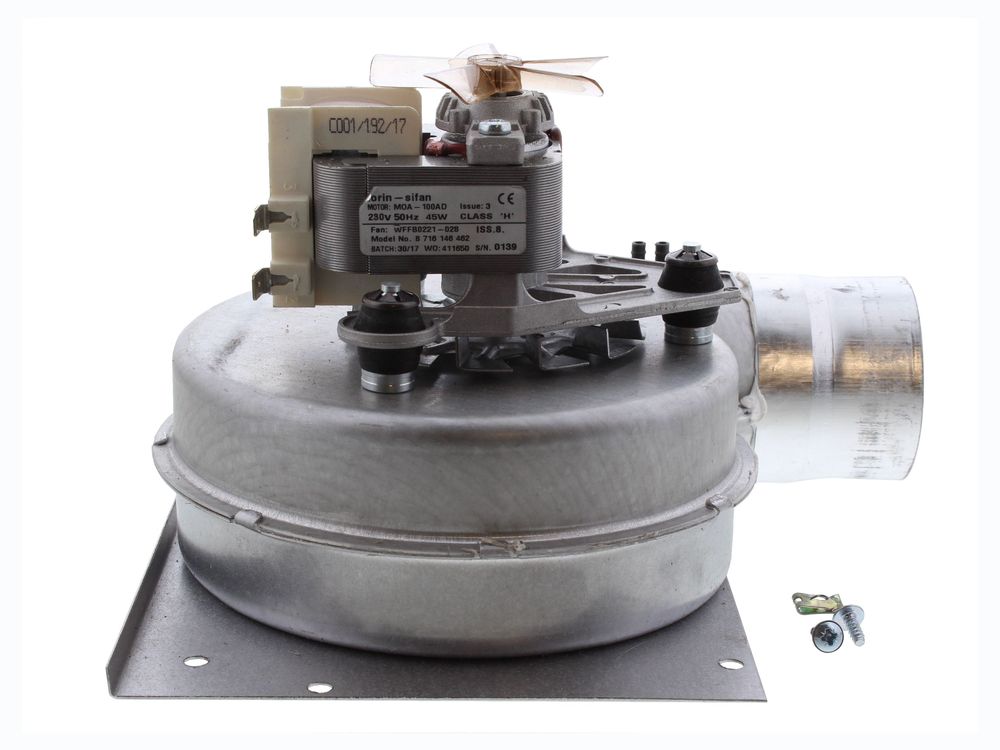

Worcester Bosch 87161207380 Fan & Mount Plate Assembly - HiFlo400
At a glance
- Part type: Fan assembly
- Also known as WB87161207380, 1016331, N2897-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£205.21
£171.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The fan assembly is the draught component fitted to Worcester Bosch Highflow 400 series boilers. It draws the flue gases from the combustion chamber and pushes them through the flue system, maintaining the correct airflow across the burner throughout the firing cycle. The assembly is supplied as a complete unit for direct replacement on the Highflow 400 Electronic and Highflow 400 RSF Combi ranges.
Signs this part needs replacing
- Boiler locks out or fails to fire, with the fan proving sequence not completing
- Grinding, whining or rumbling noise from the fan area during or after firing
- Intermittent operation where the boiler runs briefly and then shuts down
- Flue gas spillage or poor combustion readings traced to reduced airflow
- Visible damage, stiffness or play in the fan impeller or housing
Before you order
- Check the GC number and appliance serial plate to confirm the correct fan assembly for your Highflow 400 variant
- Confirm whether the previous number SSA010815 is the part currently fitted, as this number identifies the same assembly
- Inspect the fan mounting gasket and seals at the same time, as these are disturbed during replacement
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161207380 |
|---|---|
| GC number | 299-338 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161207380, 8-716-120-738-0, SSA010815, 1016331, N2897-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER HIGHFLOW 400 ELECTRONIC FSN NG | 47-311-61 | 47-311-61 | — | — |
| WORCESTER HIGHFLOW 400 ELECTRONIC FSP NG | 47-311-64 | 47-311-64 | — | — |
| WORCESTER HIGHFLOW 400 RSF COMBI LPG | 47-311-21 | 47-311-21 | — | — |
| WORCESTER HIGHFLOW 400 RSF COMBI NG | 47-311-18 | 47-311-18 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
